US Building Survey, Inc.

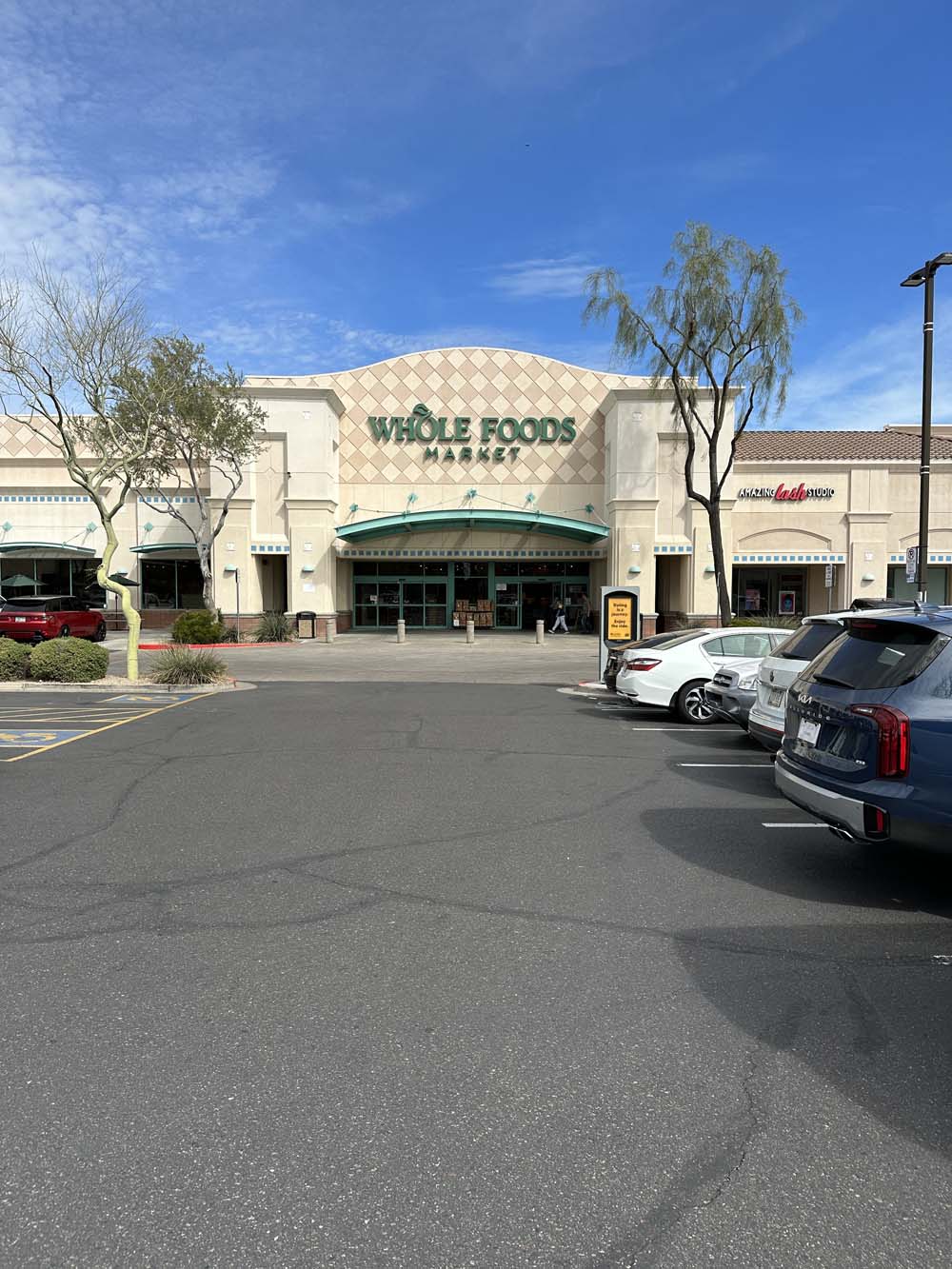

Paradise Valley Marketplace (03)

10810 N Tatum Blvd | Phoenix, AZ 85028

Paradise Valley Marketplace (03)

10810 N Tatum Blvd | Phoenix, AZ 85028

VIRTUAL TOUR

>> CLICK HERE <<

General Information

  • Square Footage
         Level 01
              32,048 sf (Gross Lease Area)
         Mezzanine Level
              830 sf (Gross Lease Area)
  • Building Height
         40'-0" (Exterior Parapet Height)
         19'-3" (Structural Clear Height - Lowest Point)

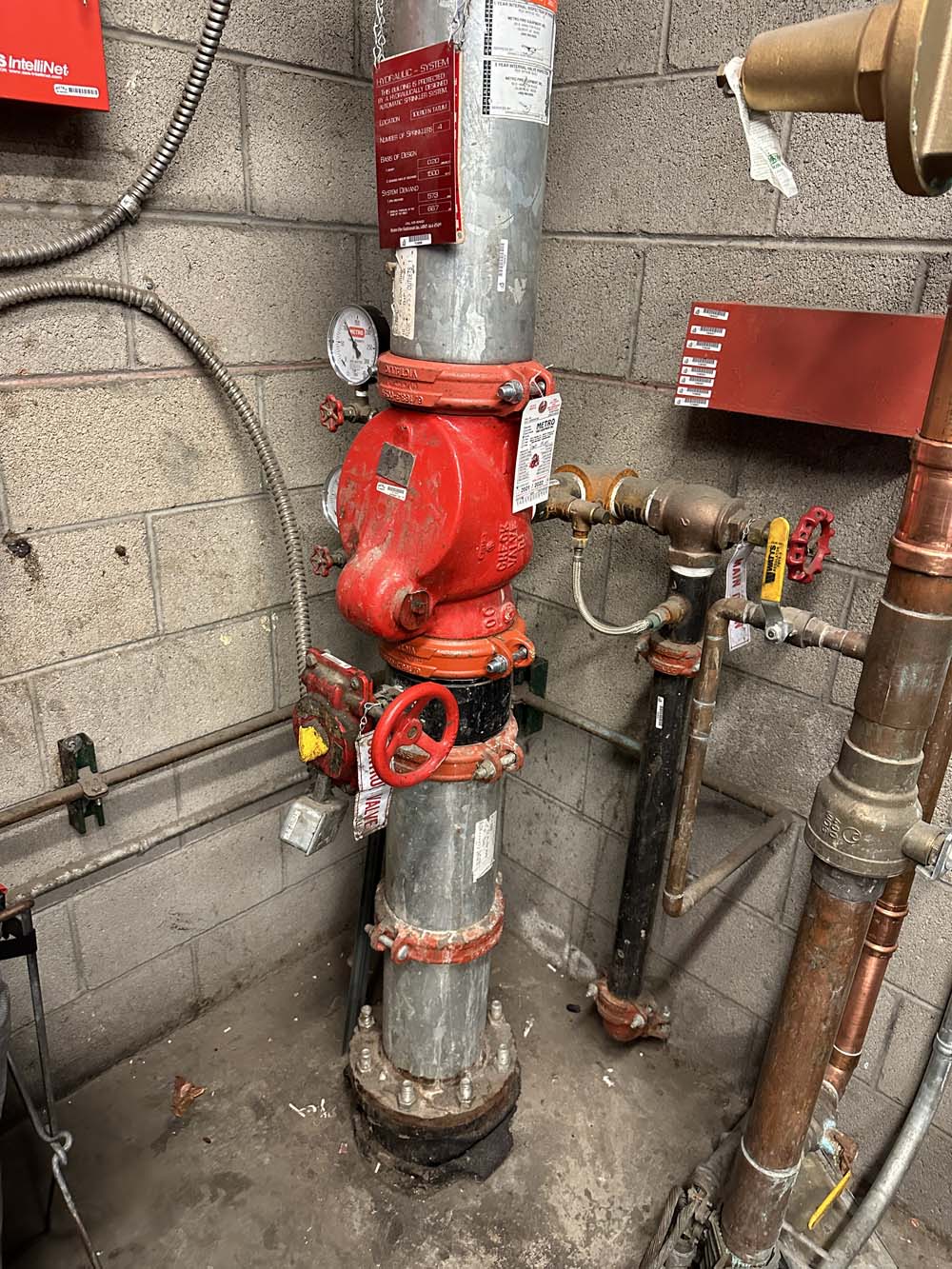

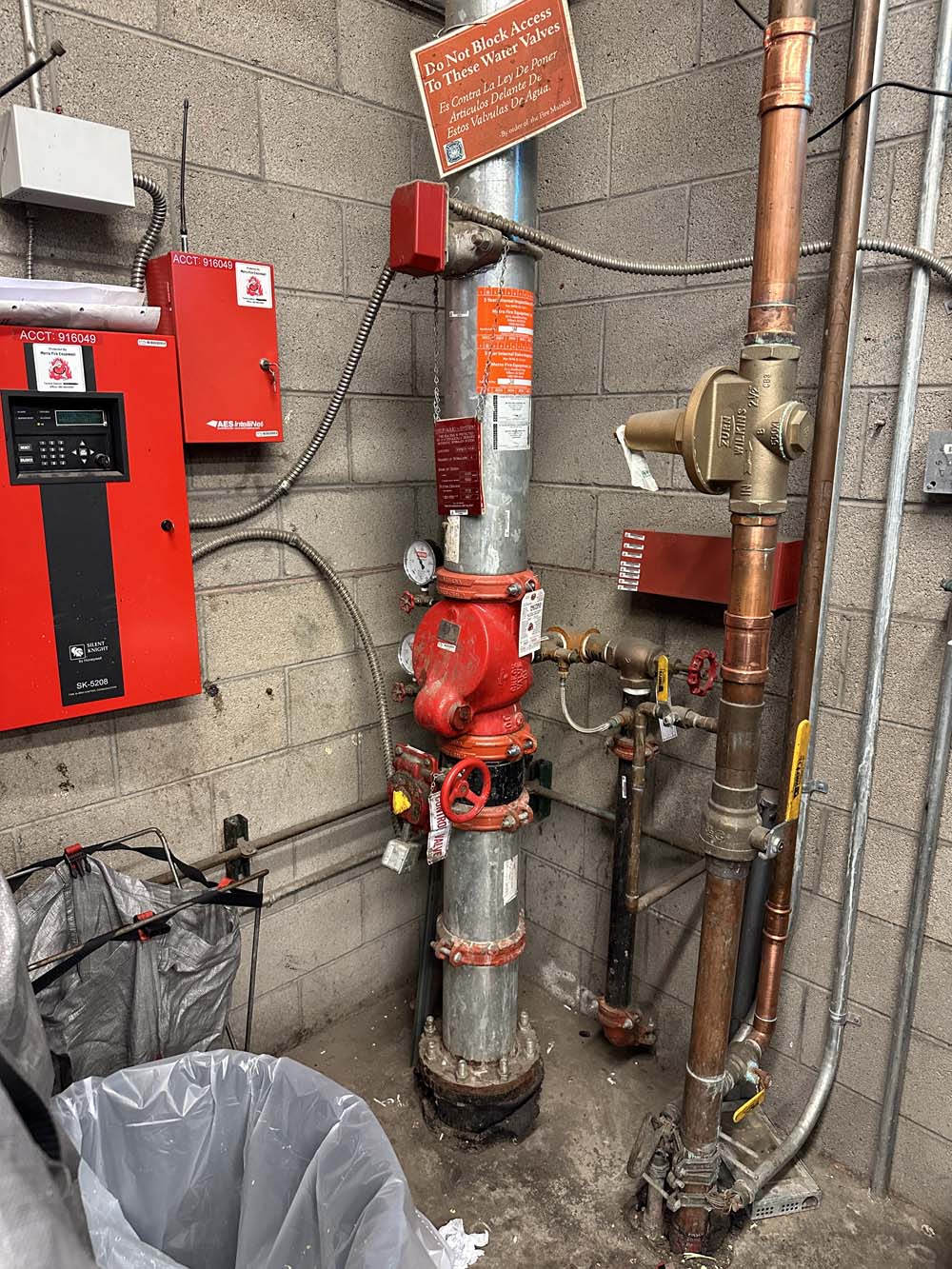

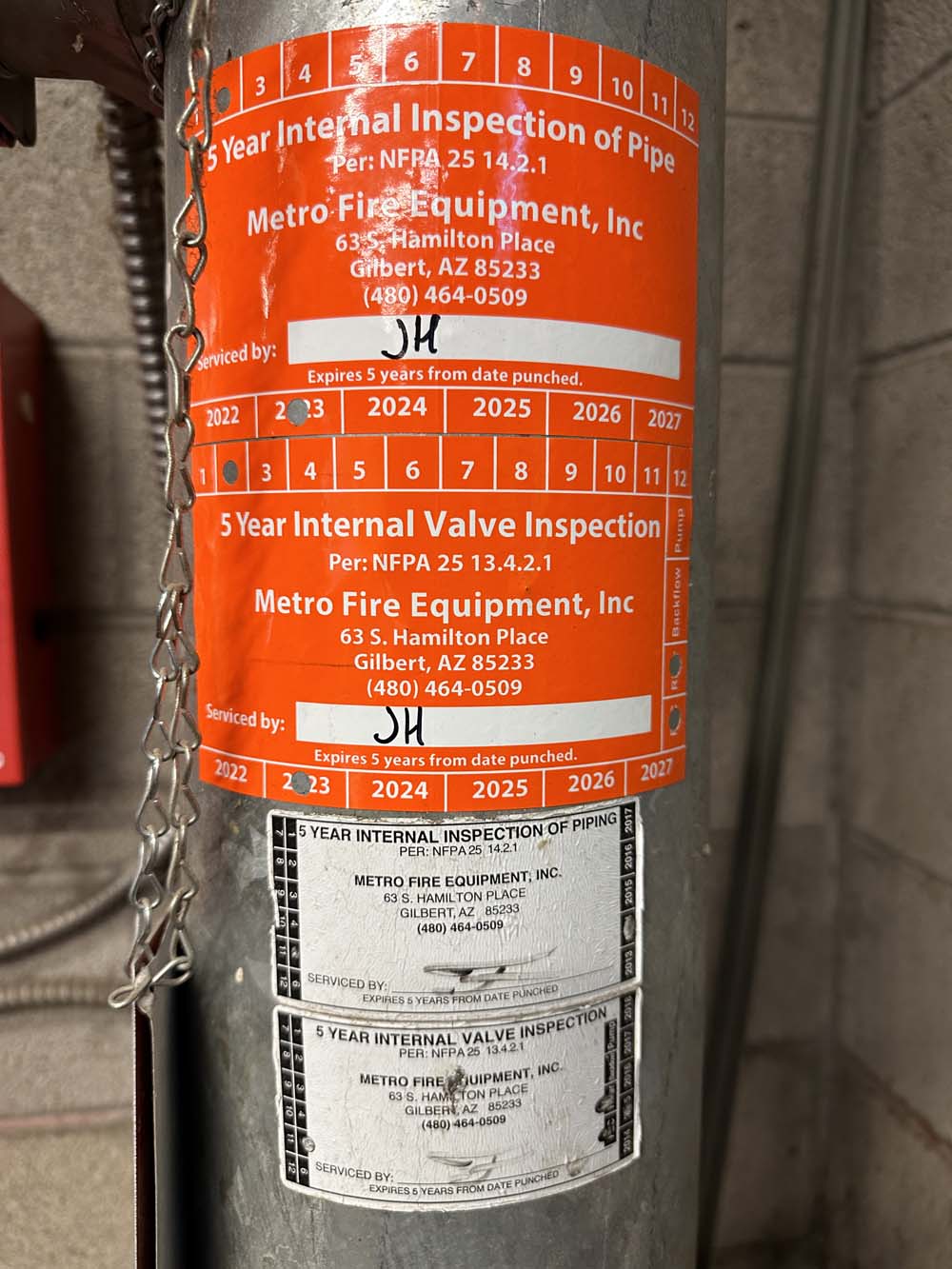

  • Fire Sprinkler
         Location: In Space
         6" Dia. (Riser)
  • Fire Alarm Panel
         Location: In Space
         Silent Knight (Model No.: SK-5208)

Utility Information

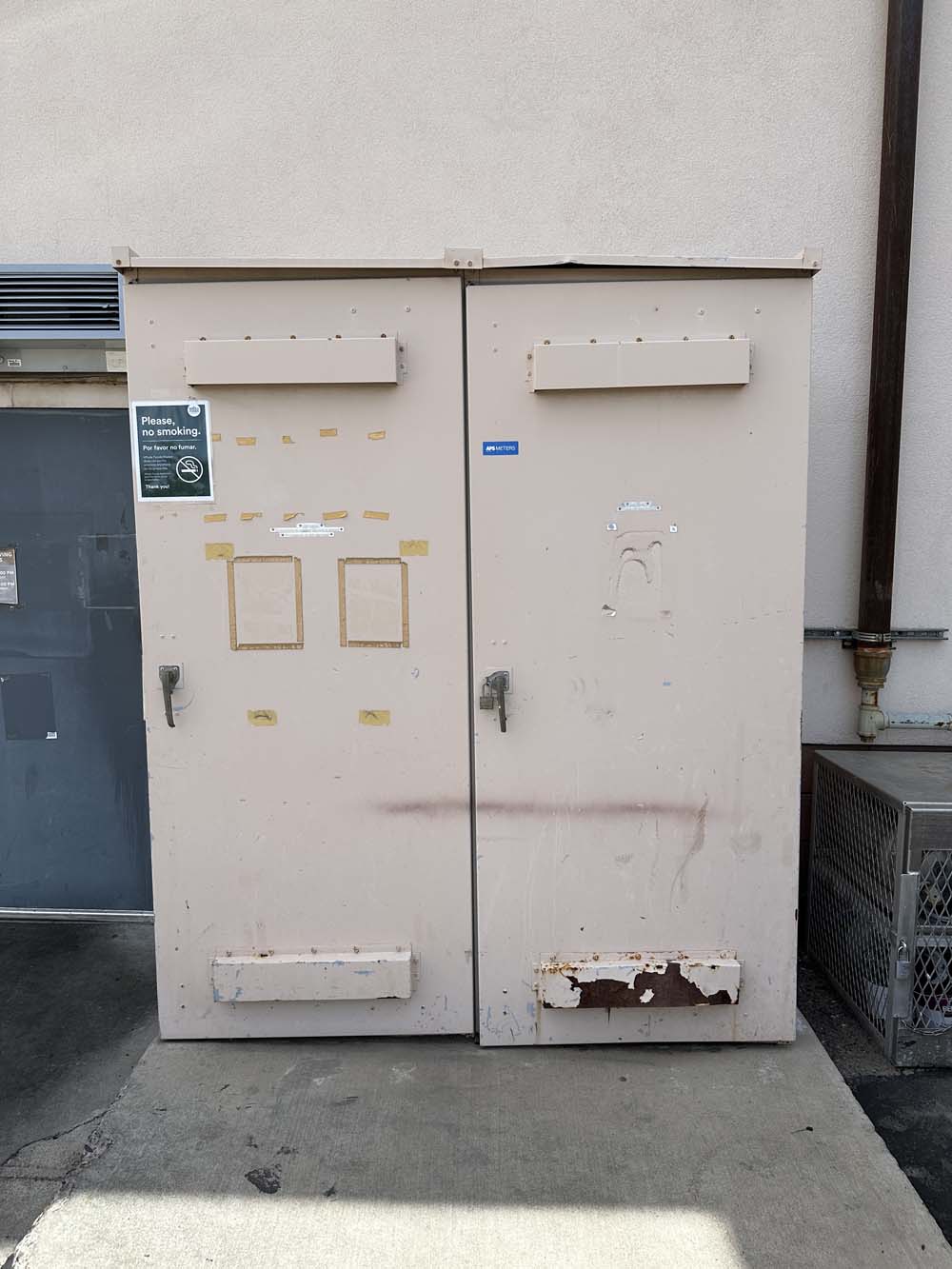

  • Electrical Transformer
         500 kVA
         Location: Exterior - 12' South of Dock Door
  • Electrical Service | Meter
         Undetermined (Service)
         Location: Exterior (12’ South of Dock Door)
         Meter No.: Undetermined

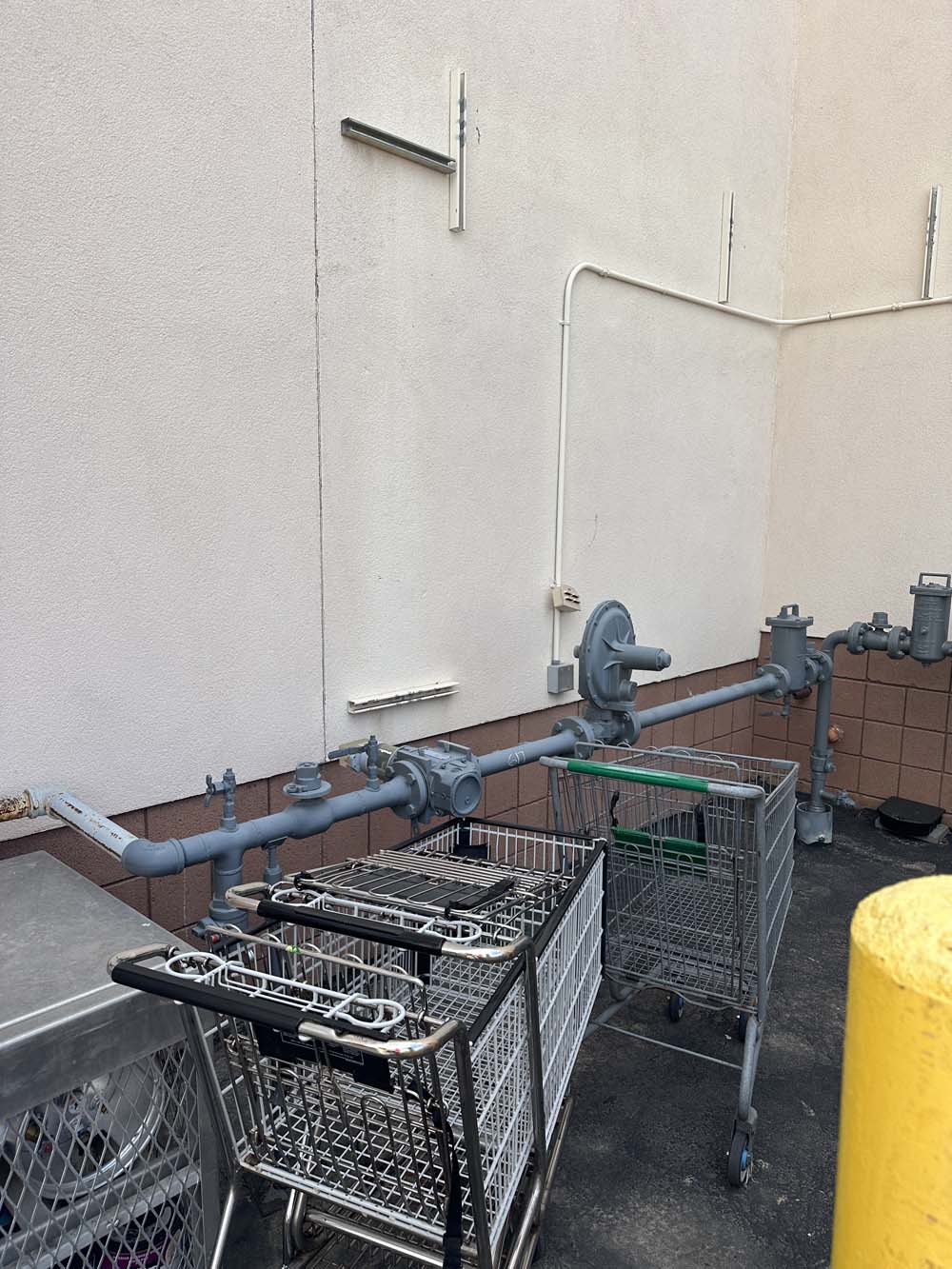

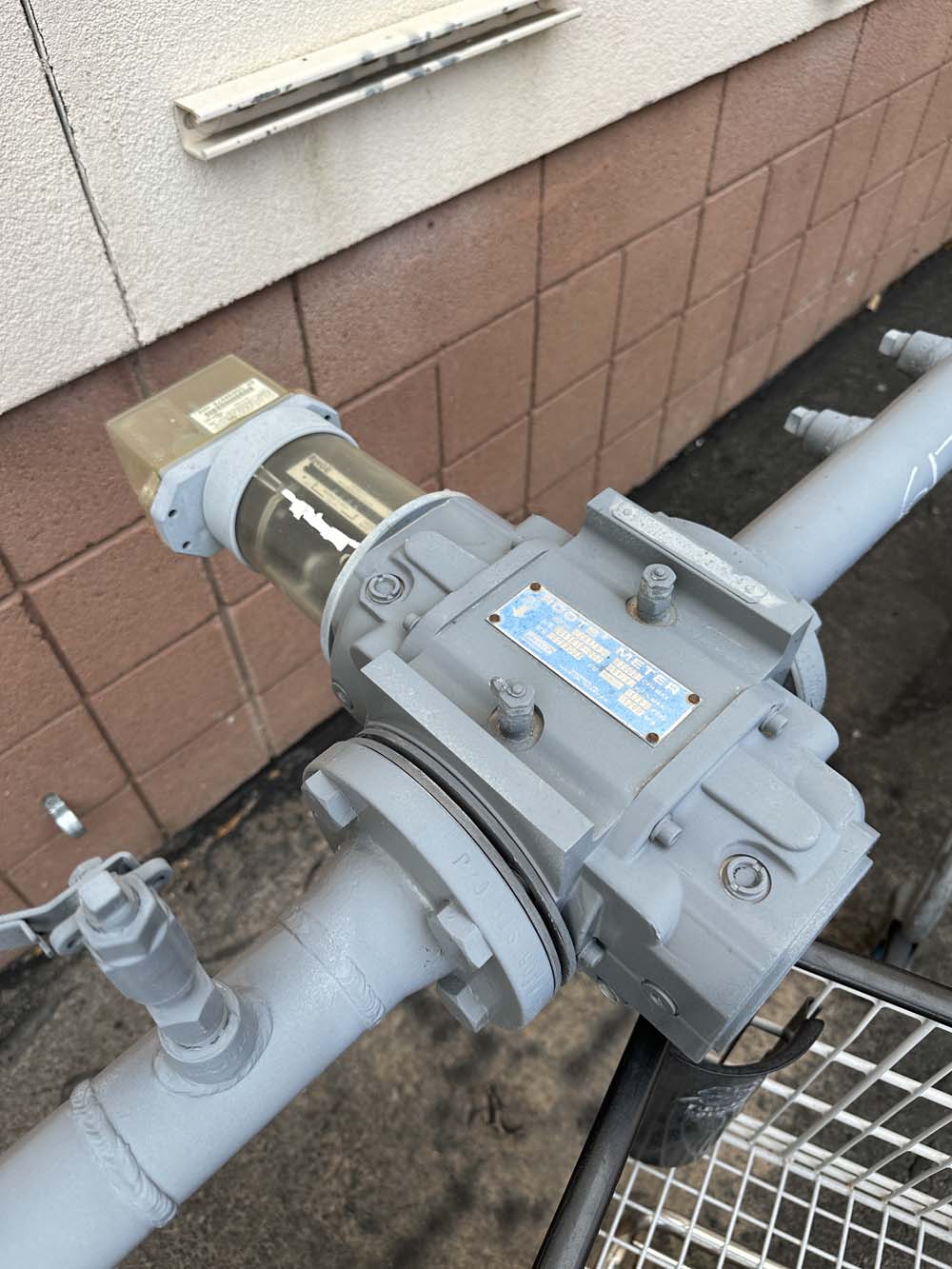

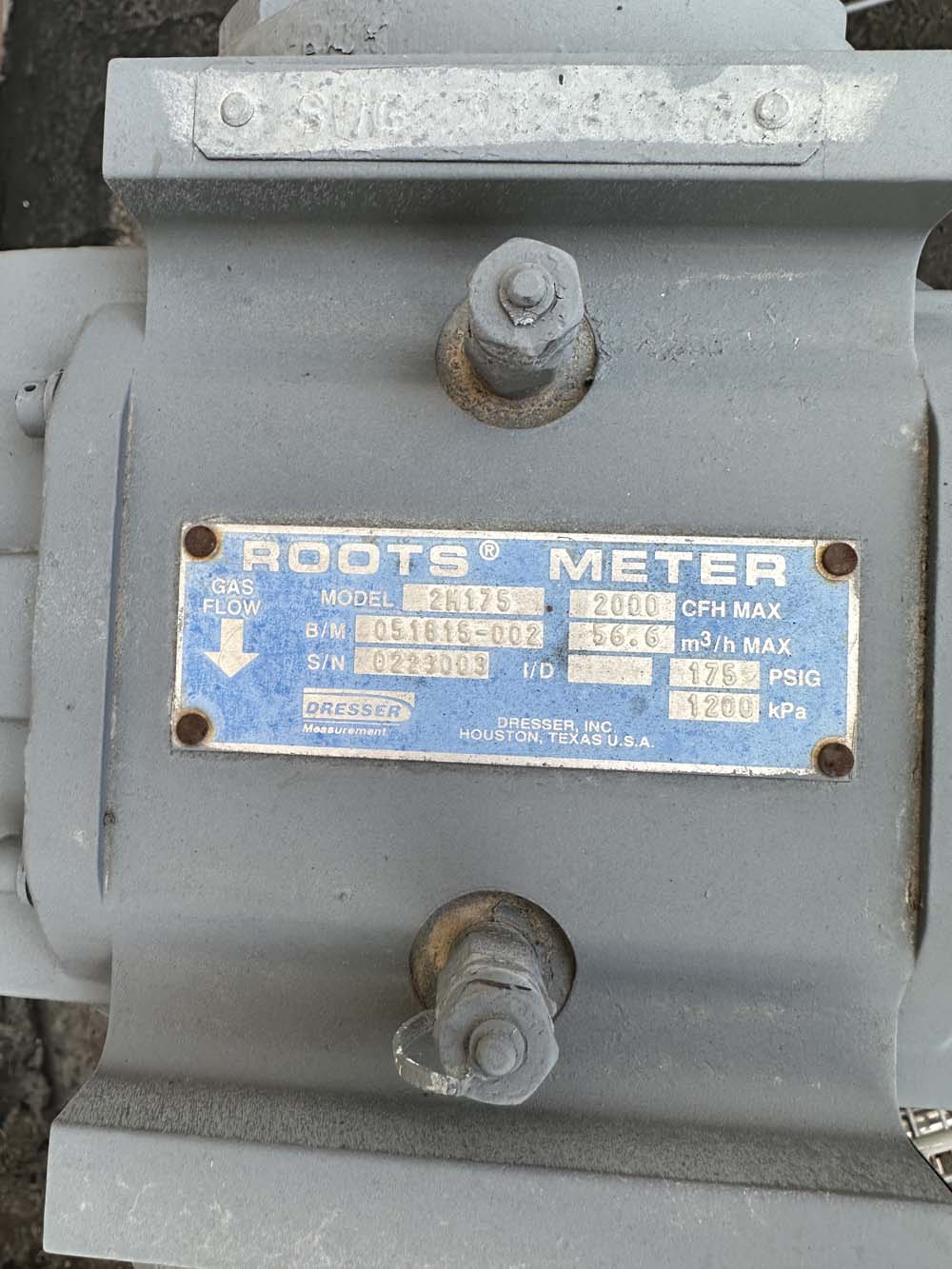

  • Gas Service | Meter
         2" Dia. (Service)
         Location: Exterior - 30’ South of Dock Door
         Meter No.: 0223003

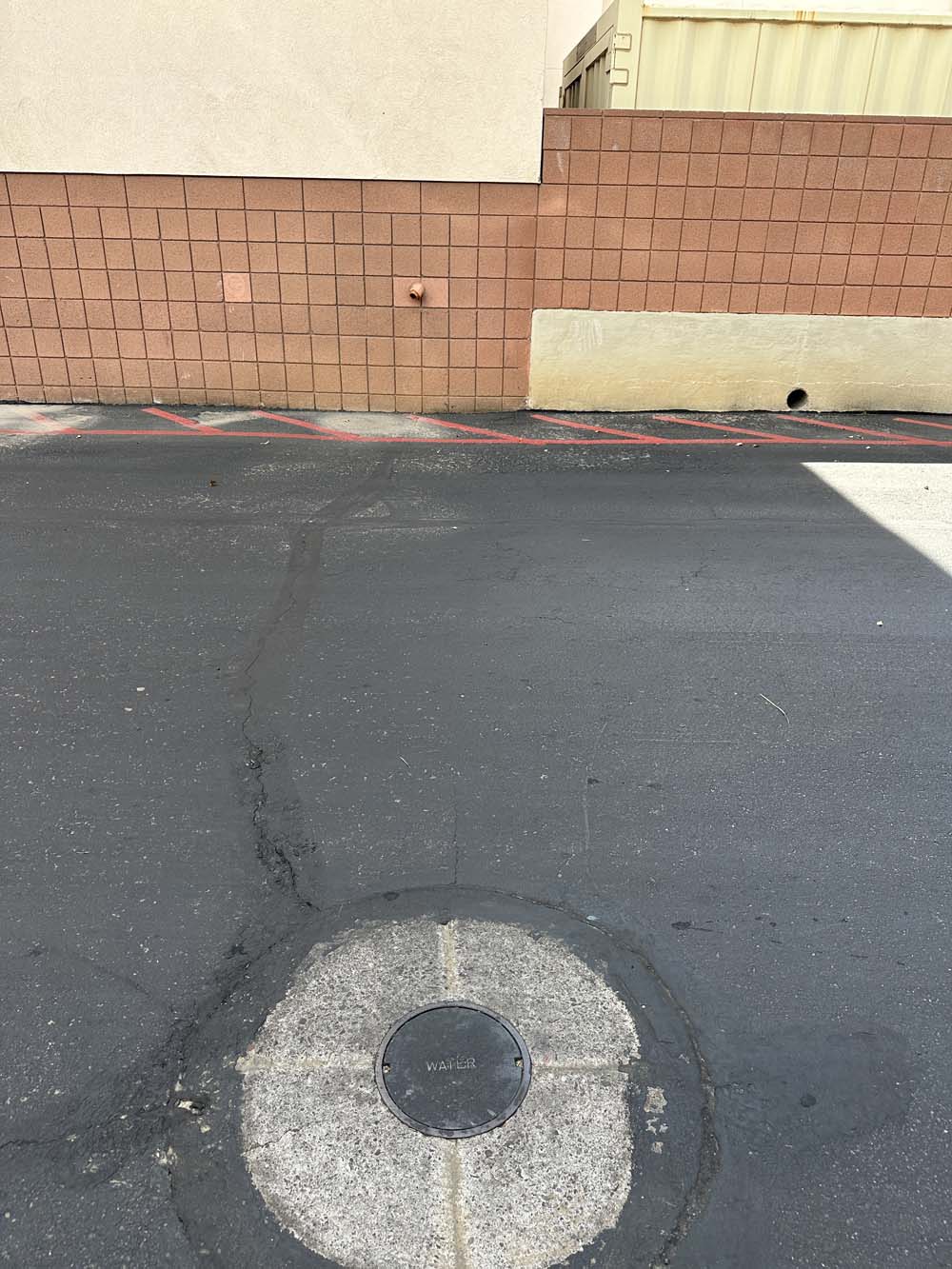

  • Water Service | Meter
         2 1/2" Dia. (Service)
         Location: Undetermined
         Meter No.: Undetermined
  • Sanitary Sewer Cleanout
         Location: Undetermined

Vicinity Map...

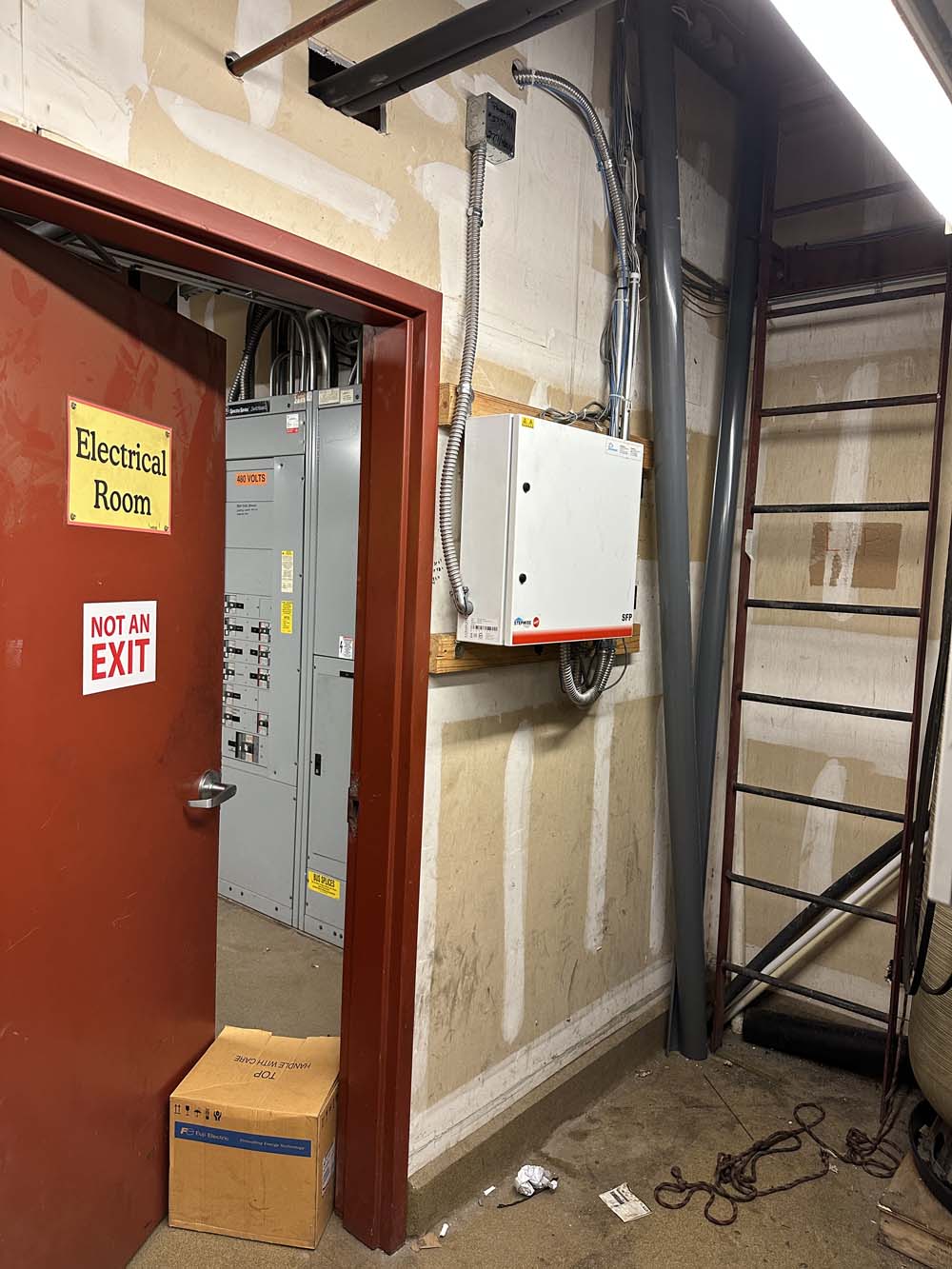

Electrical

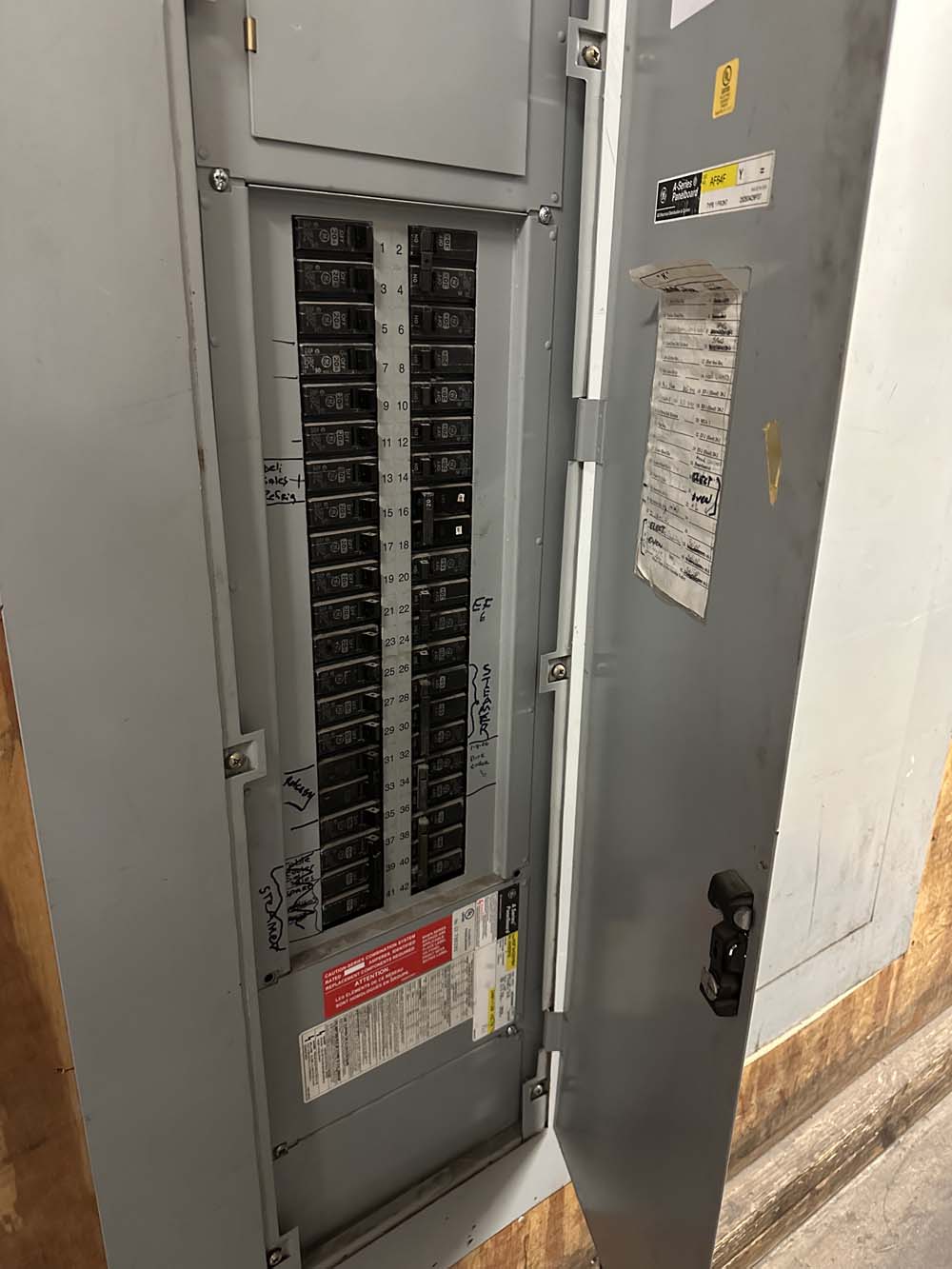

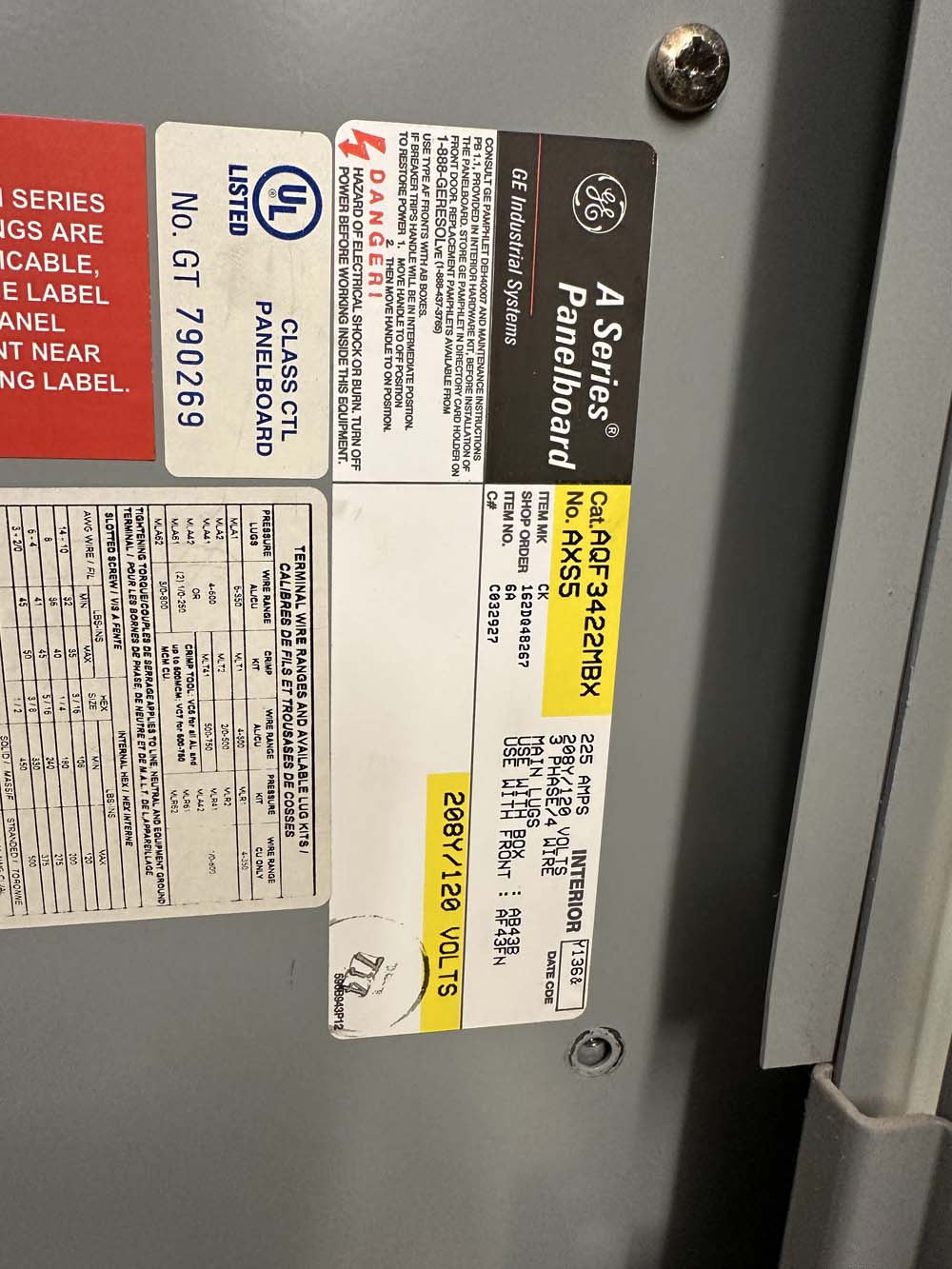

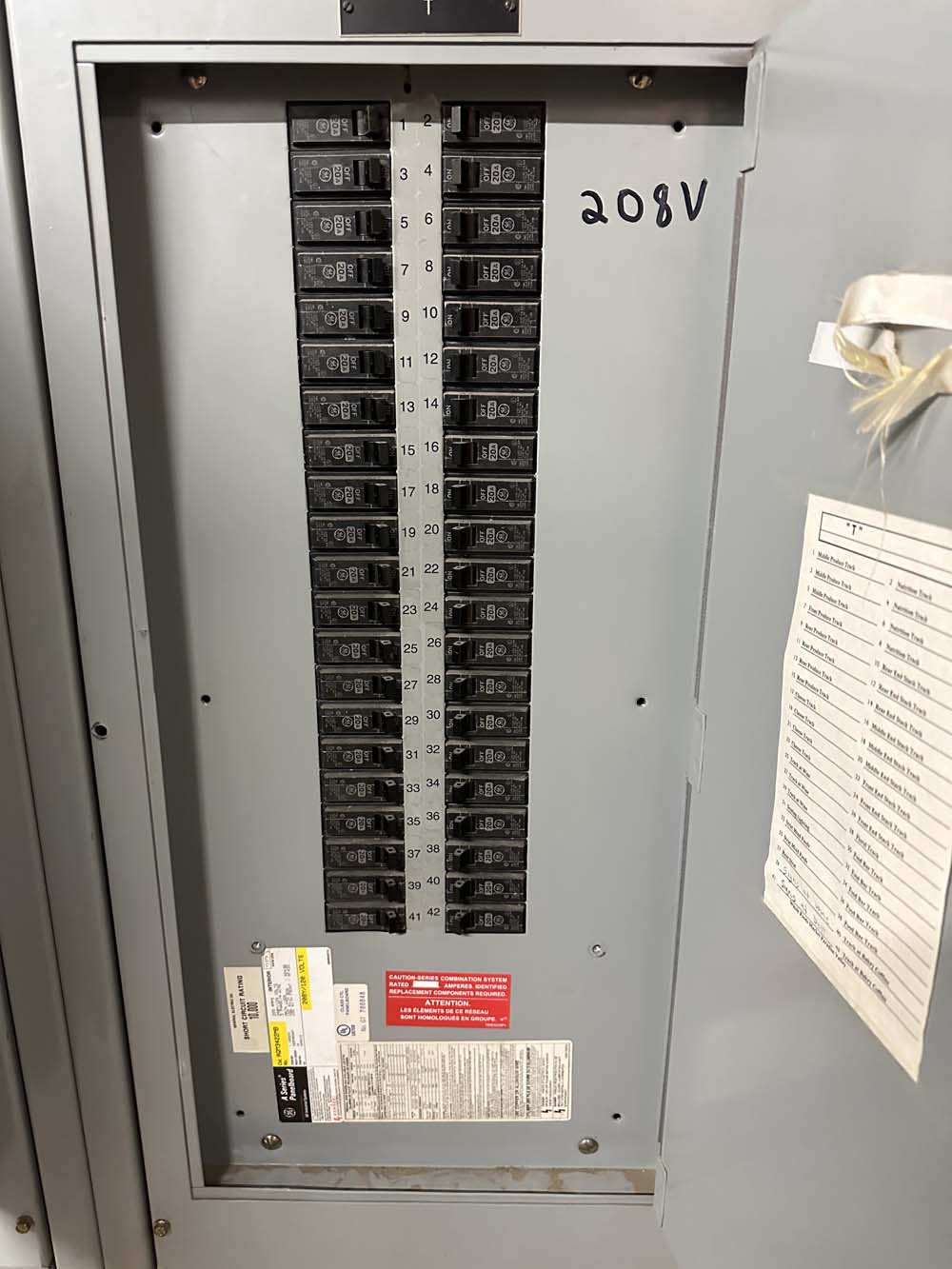

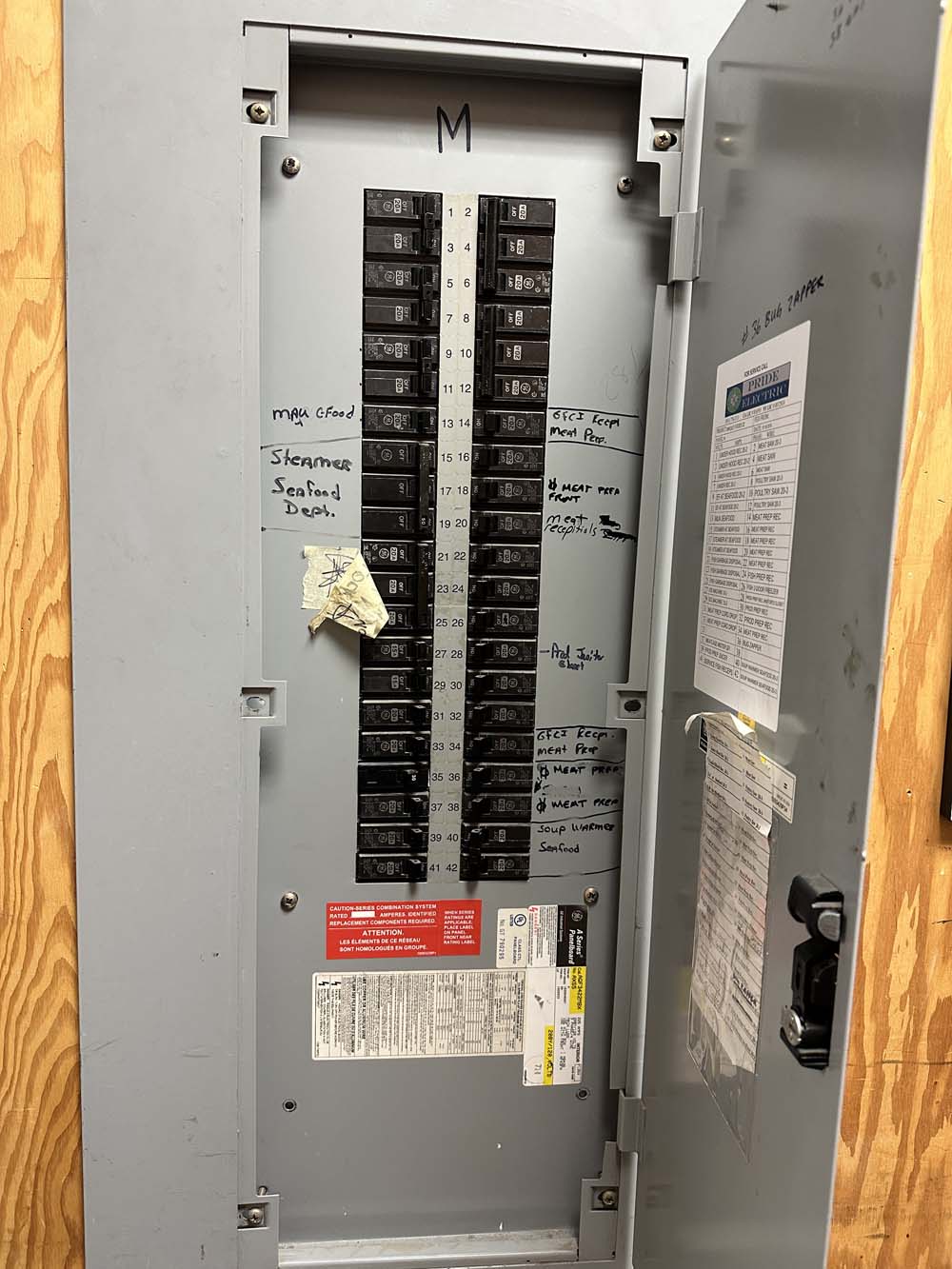

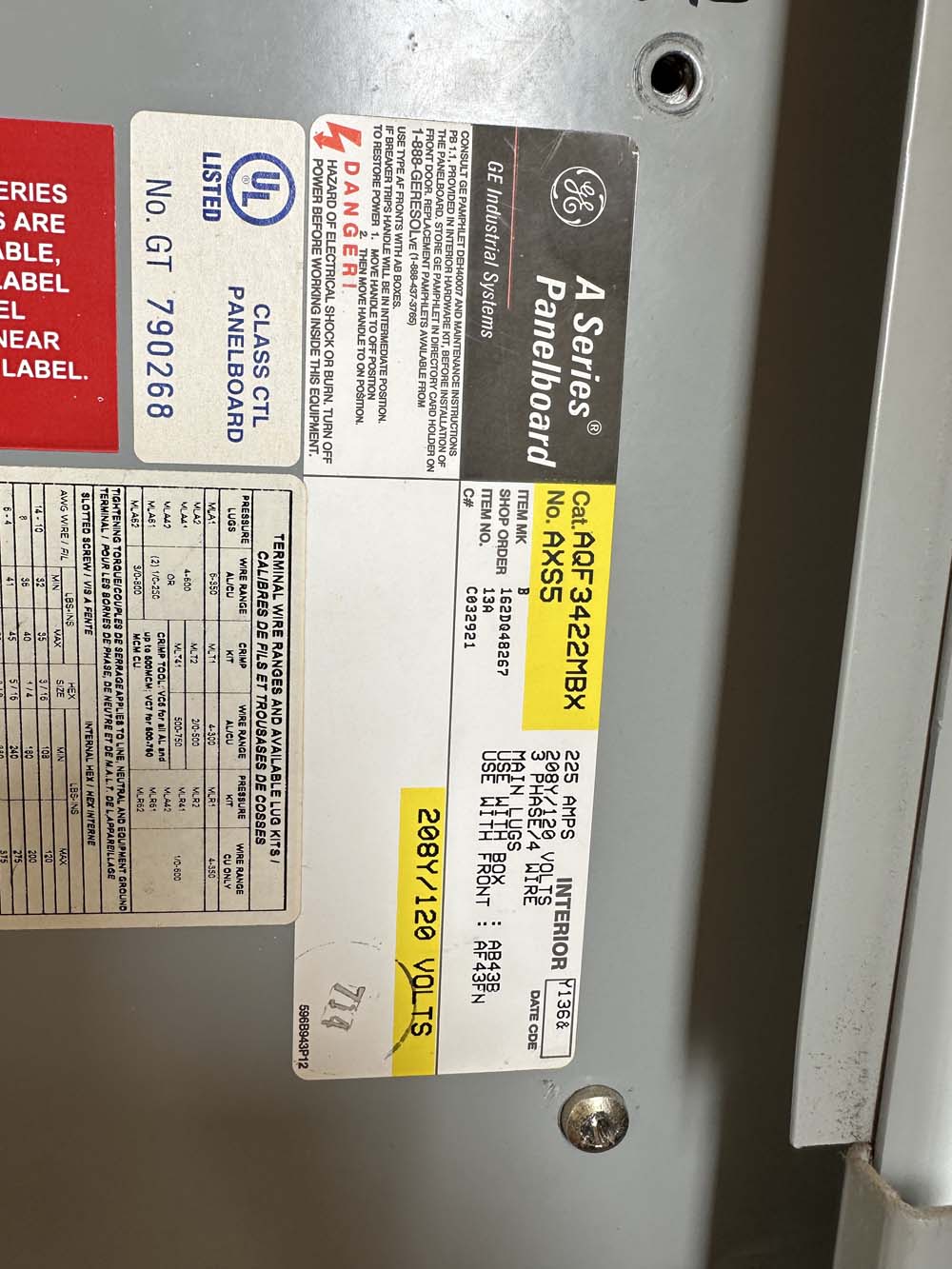

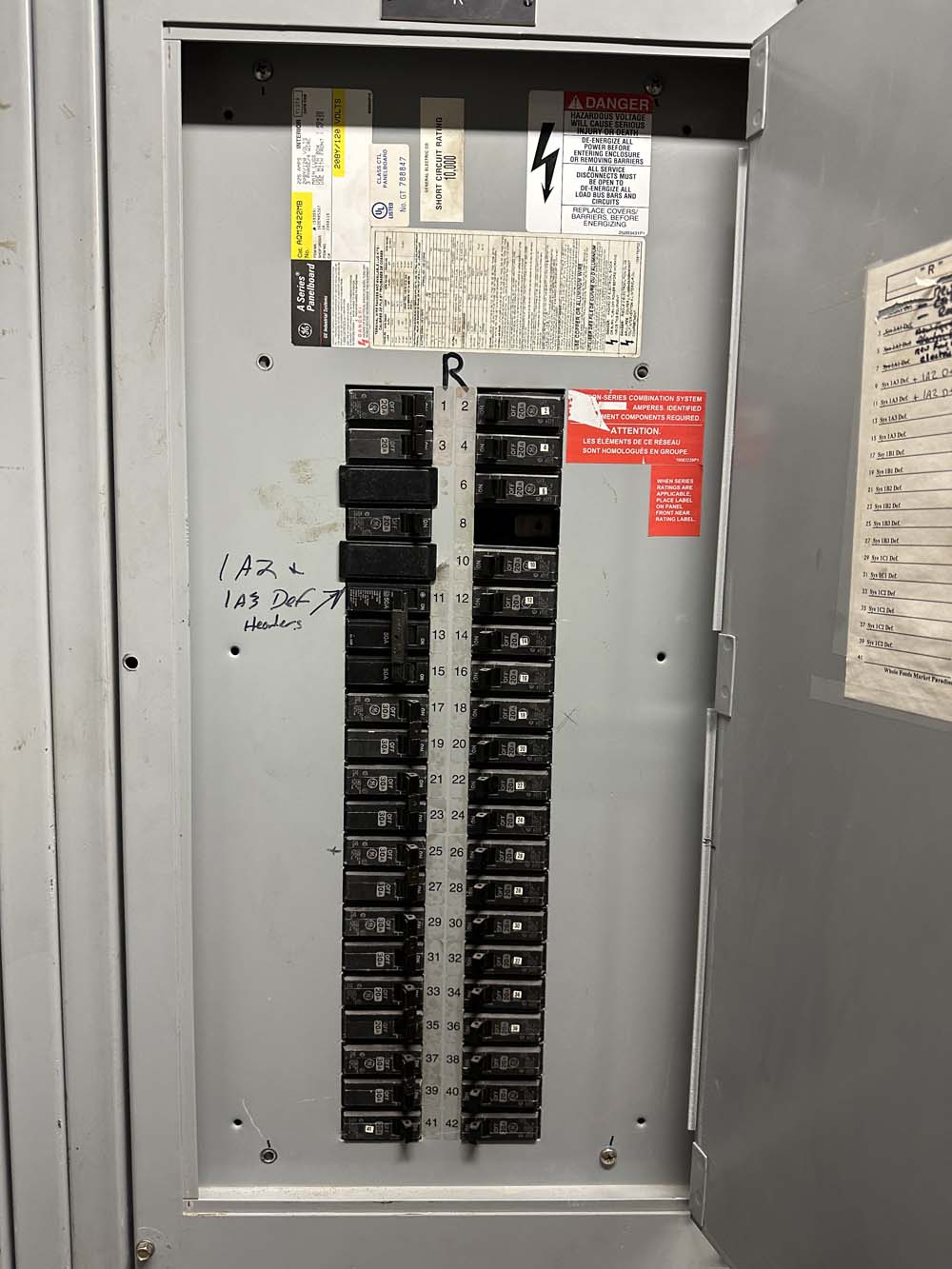

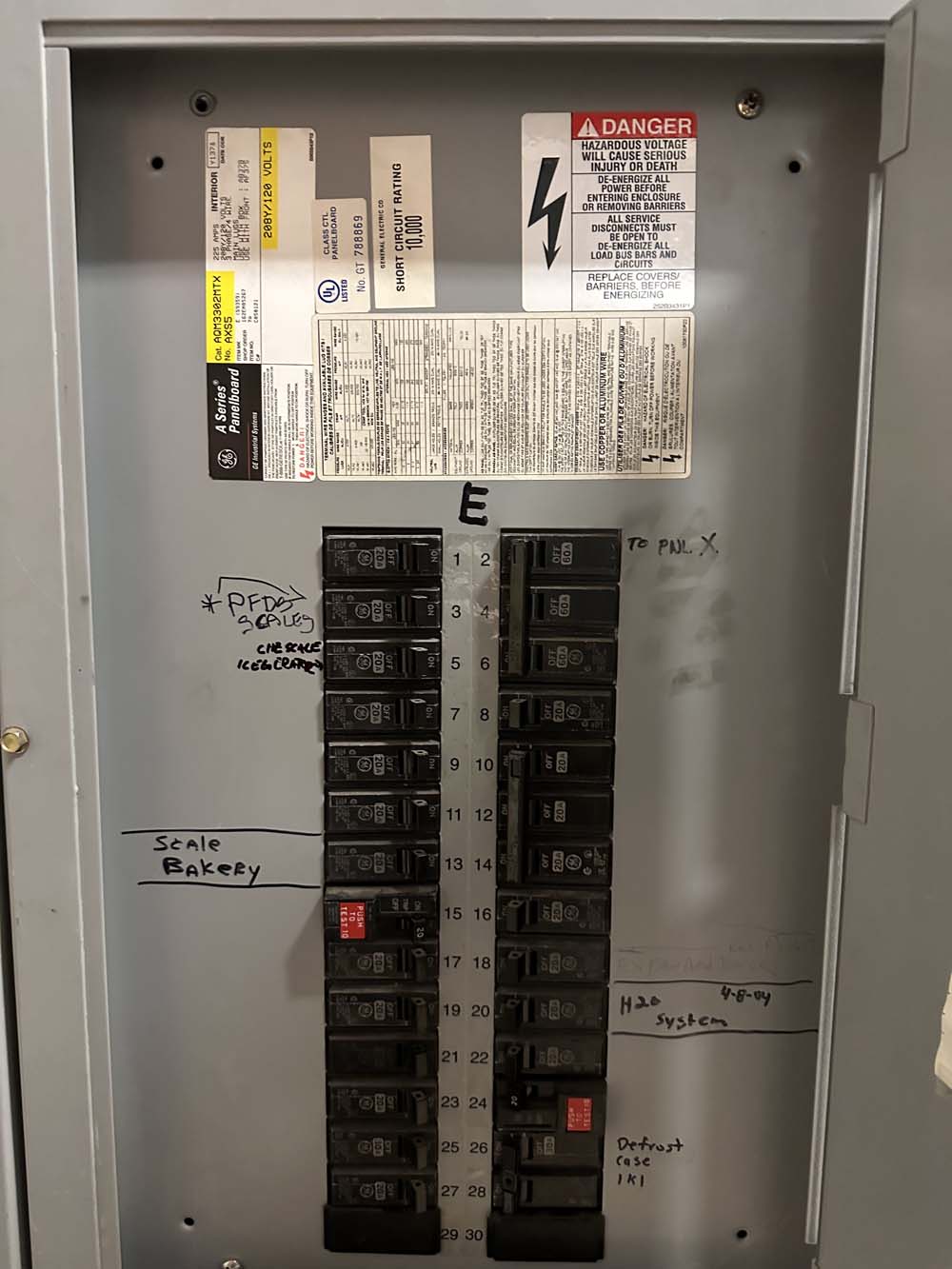

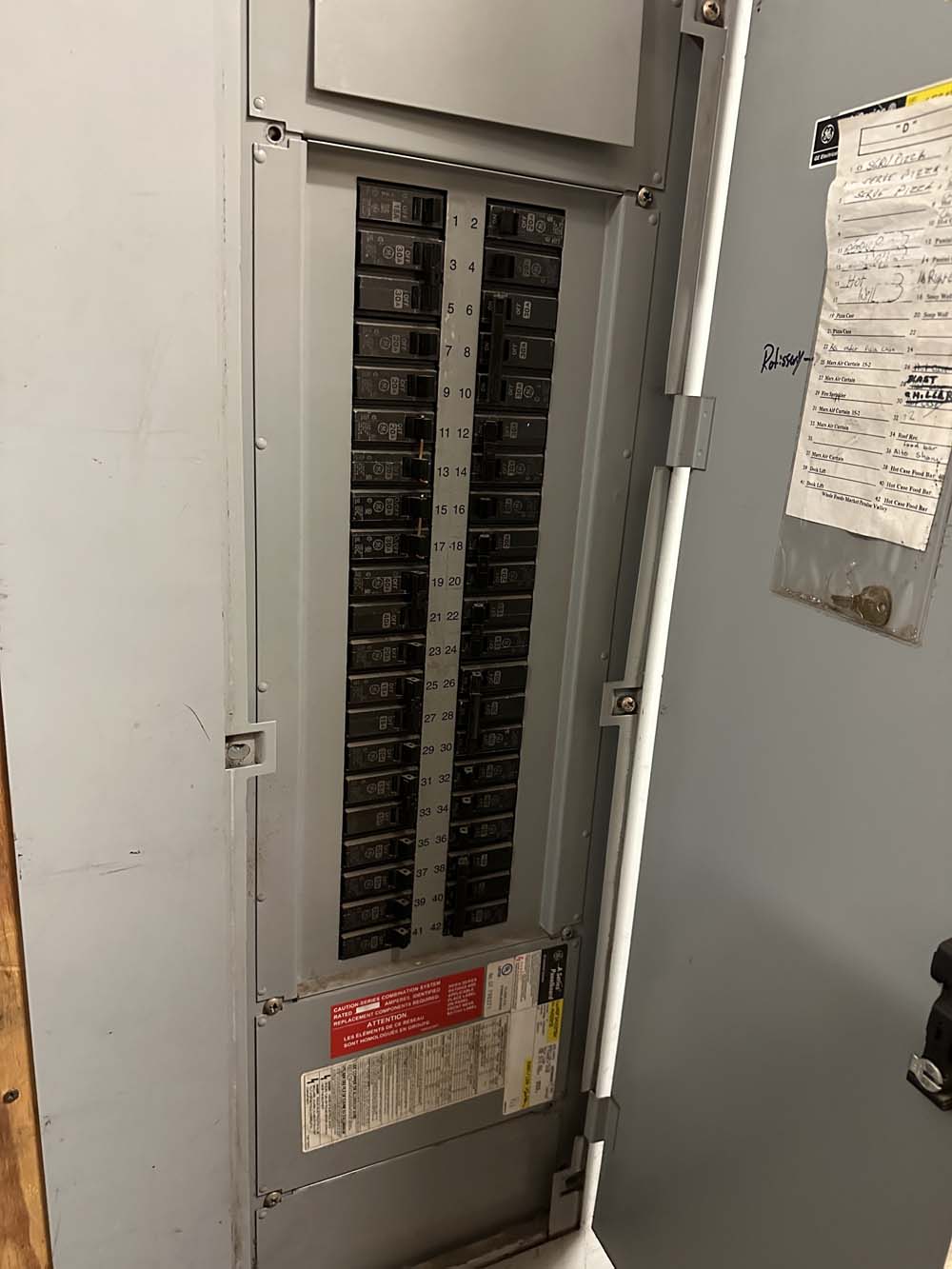

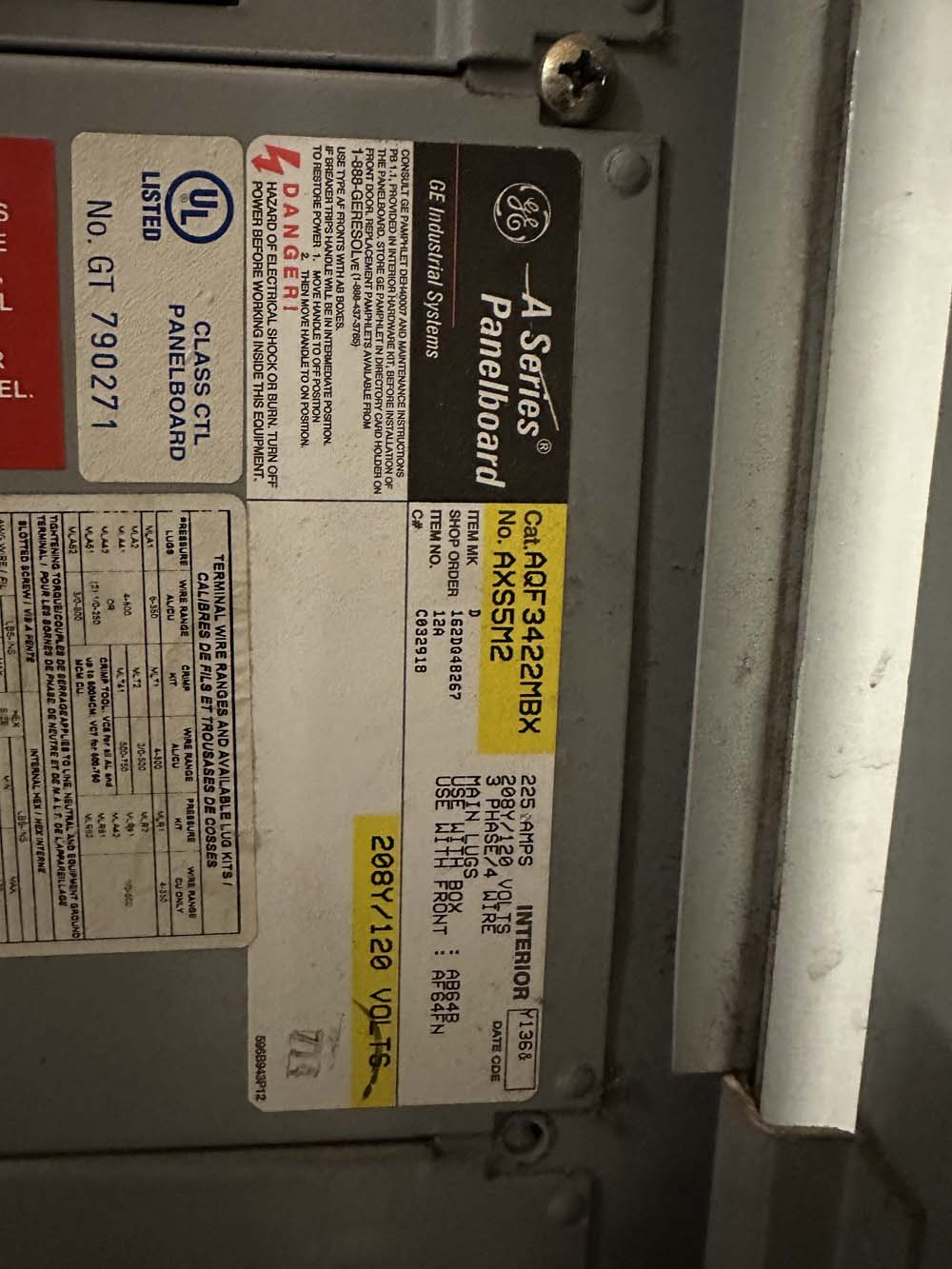

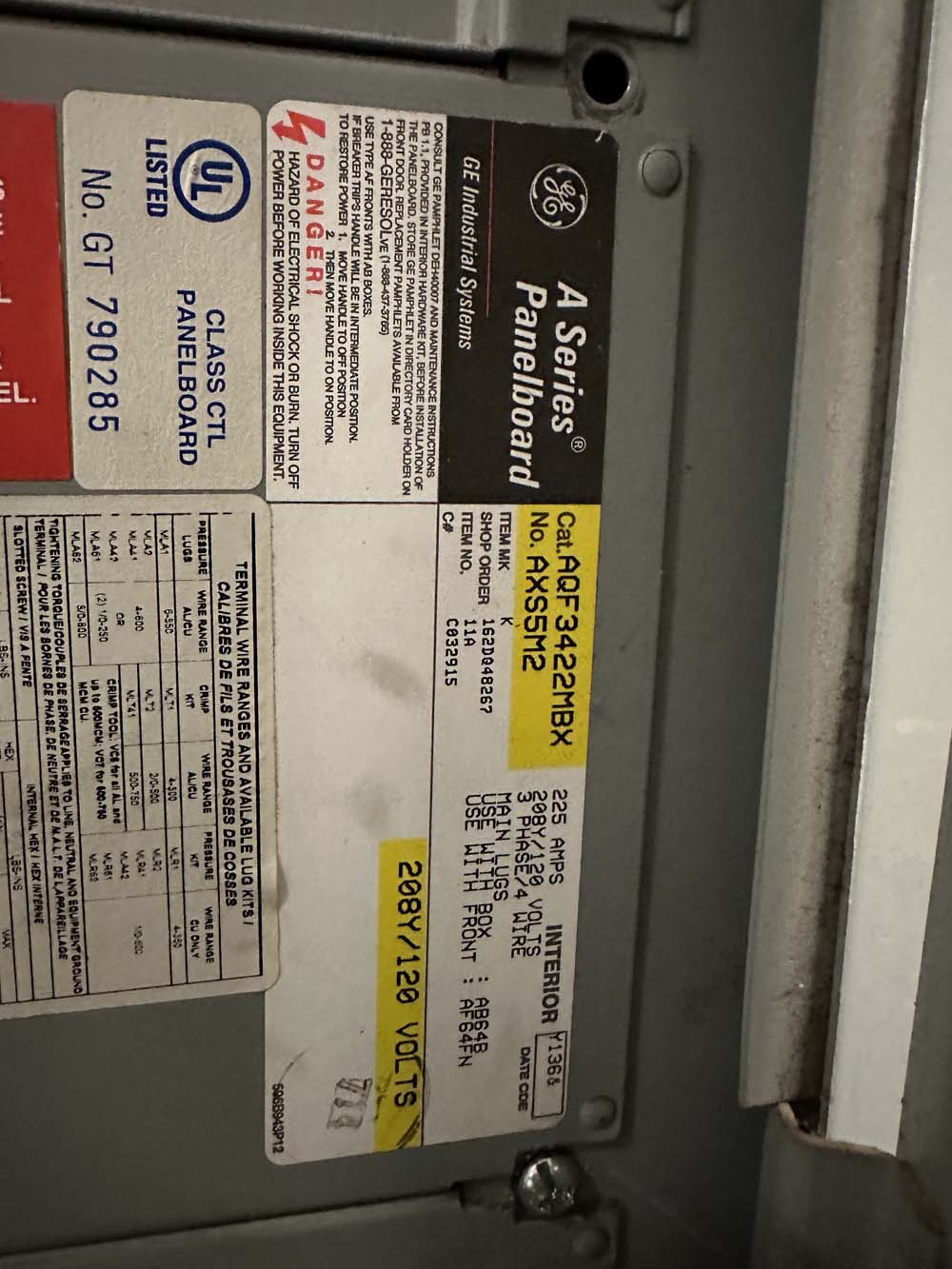

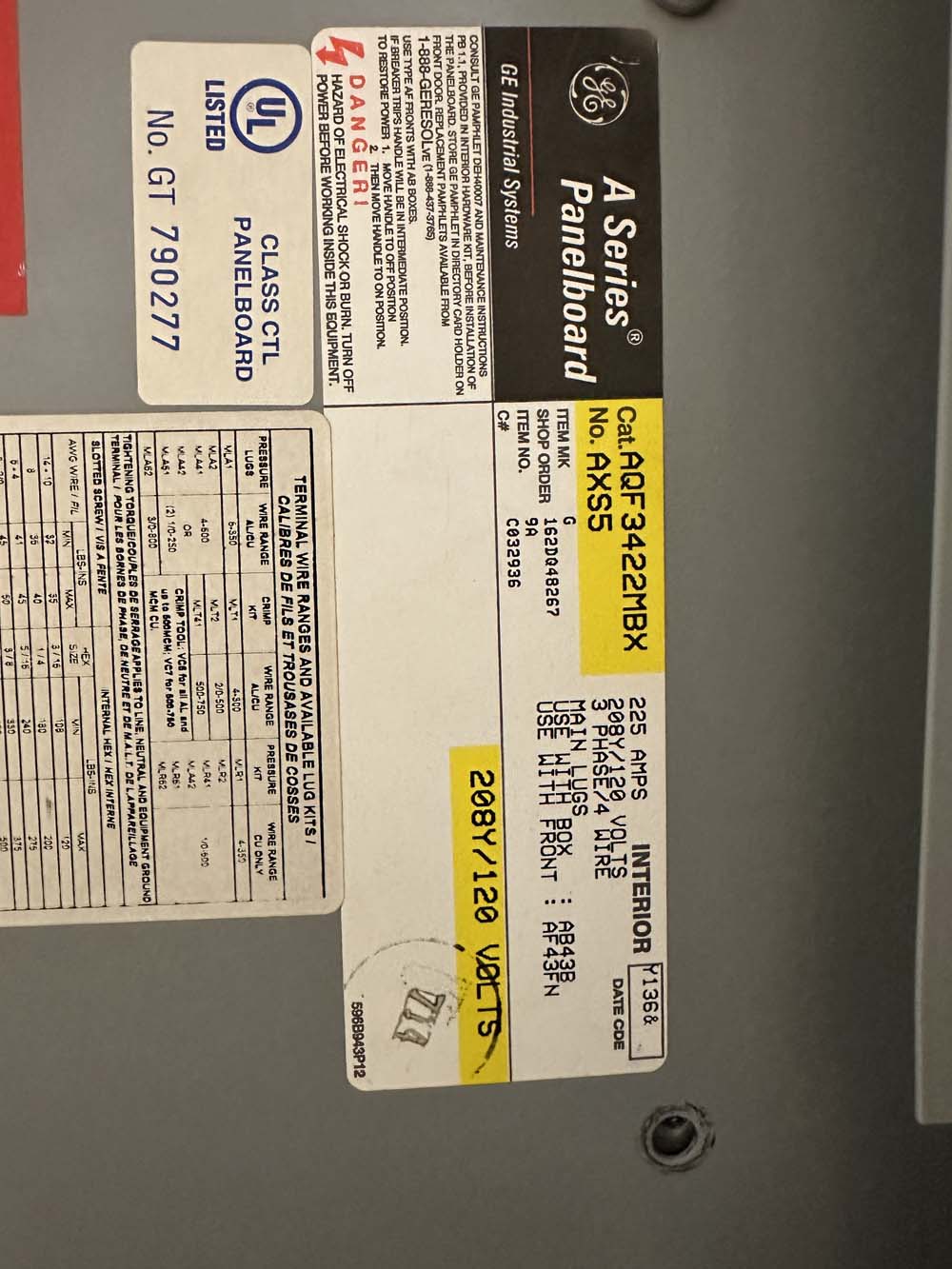

Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  40 Circuits (Used)
Main Breaker:  No

** Label Not Accessible | Label Not Legible / Worn | No Label
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  40 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  41 Circuits (Used)
Main Breaker:  No

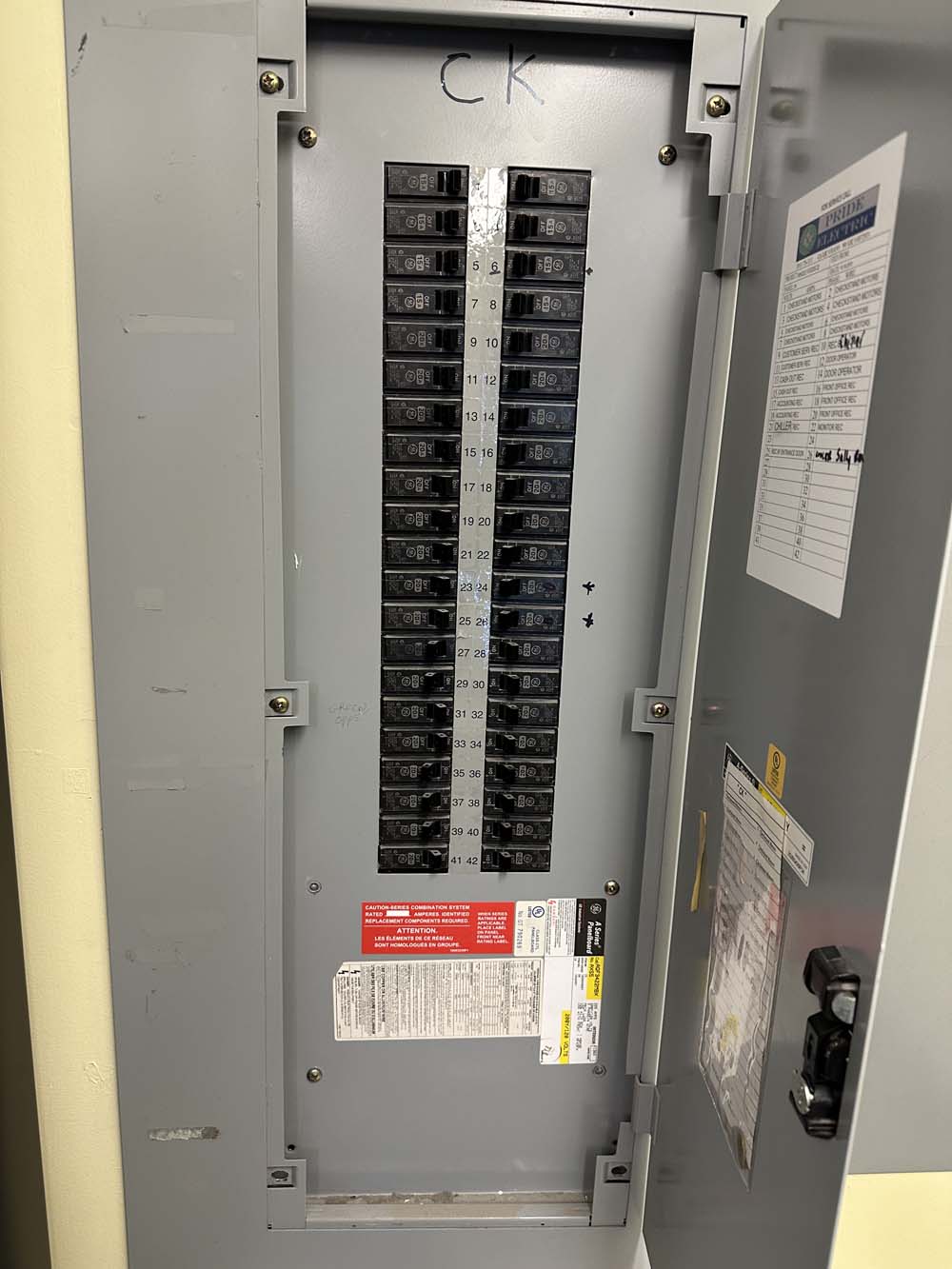

Electrical Panelboard

General Electric
Catalog #:  AQF3422MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No

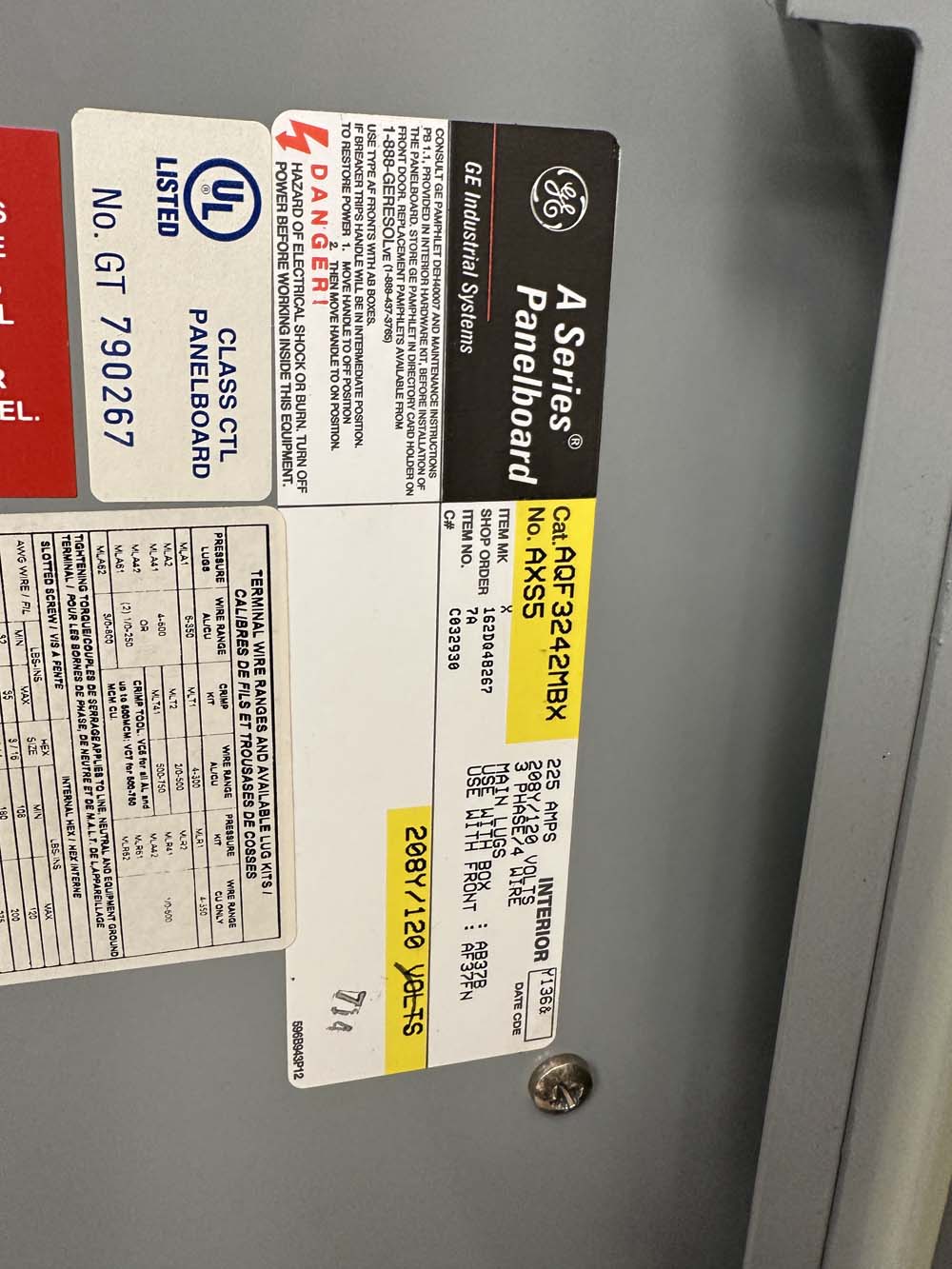

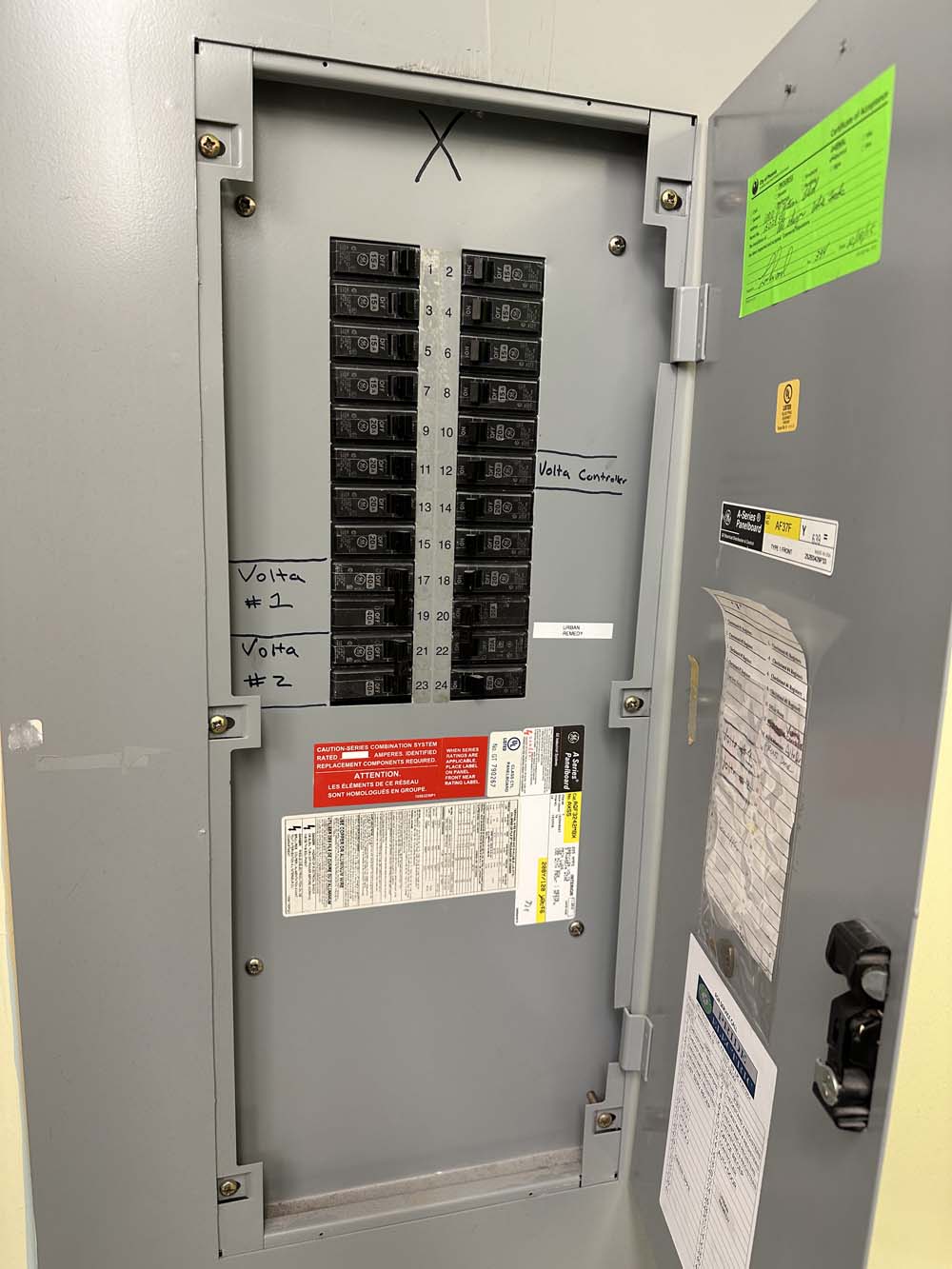

Electrical Panelboard

General Electric
Catalog #:  AQF3242MBX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  24 Circuits (Used)
Main Breaker:  No

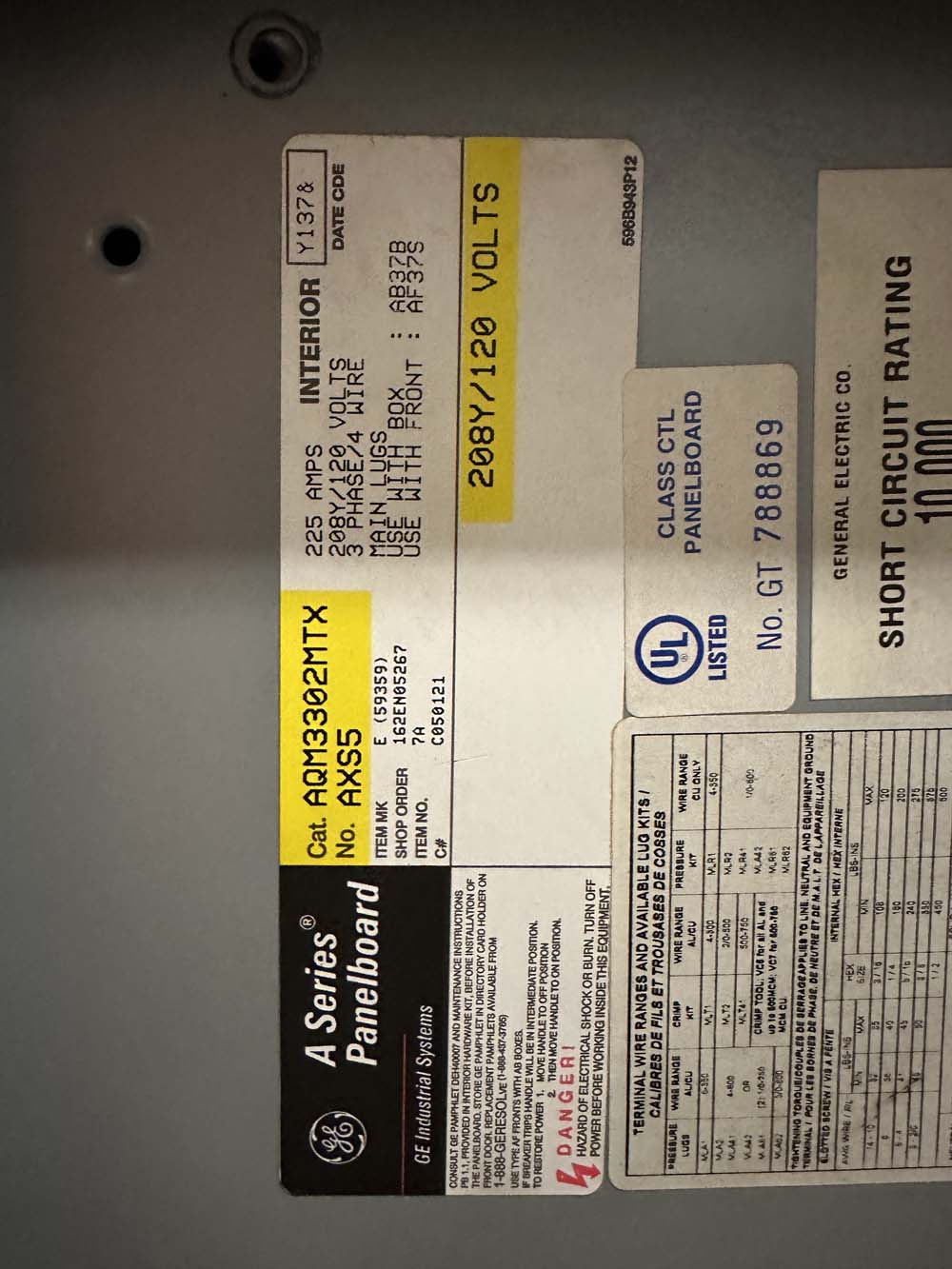

Electrical Panelboard

General Electric
Catalog #:  AQM3302MTX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  28 Circuits (Used)
Main Breaker:  No

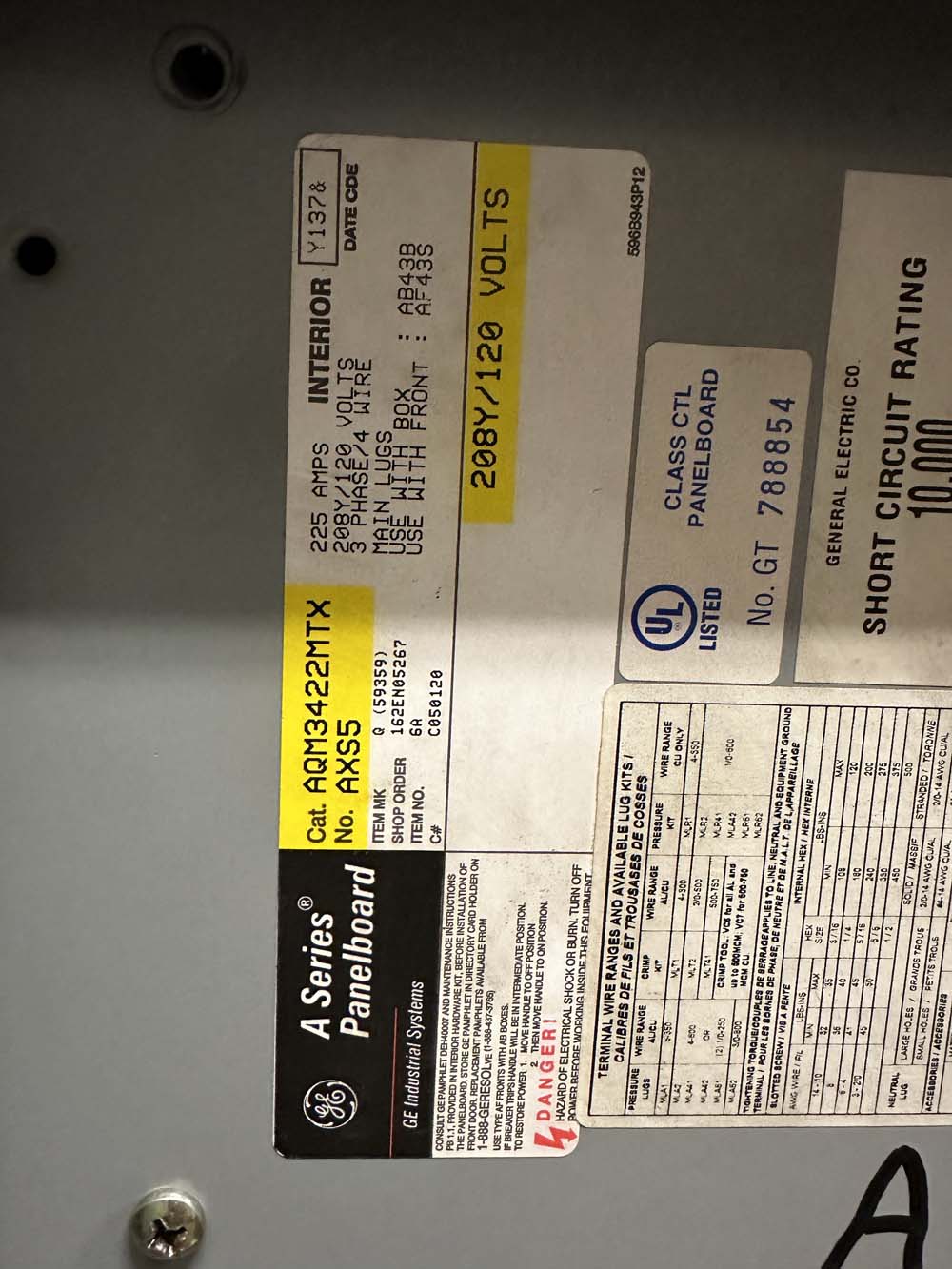

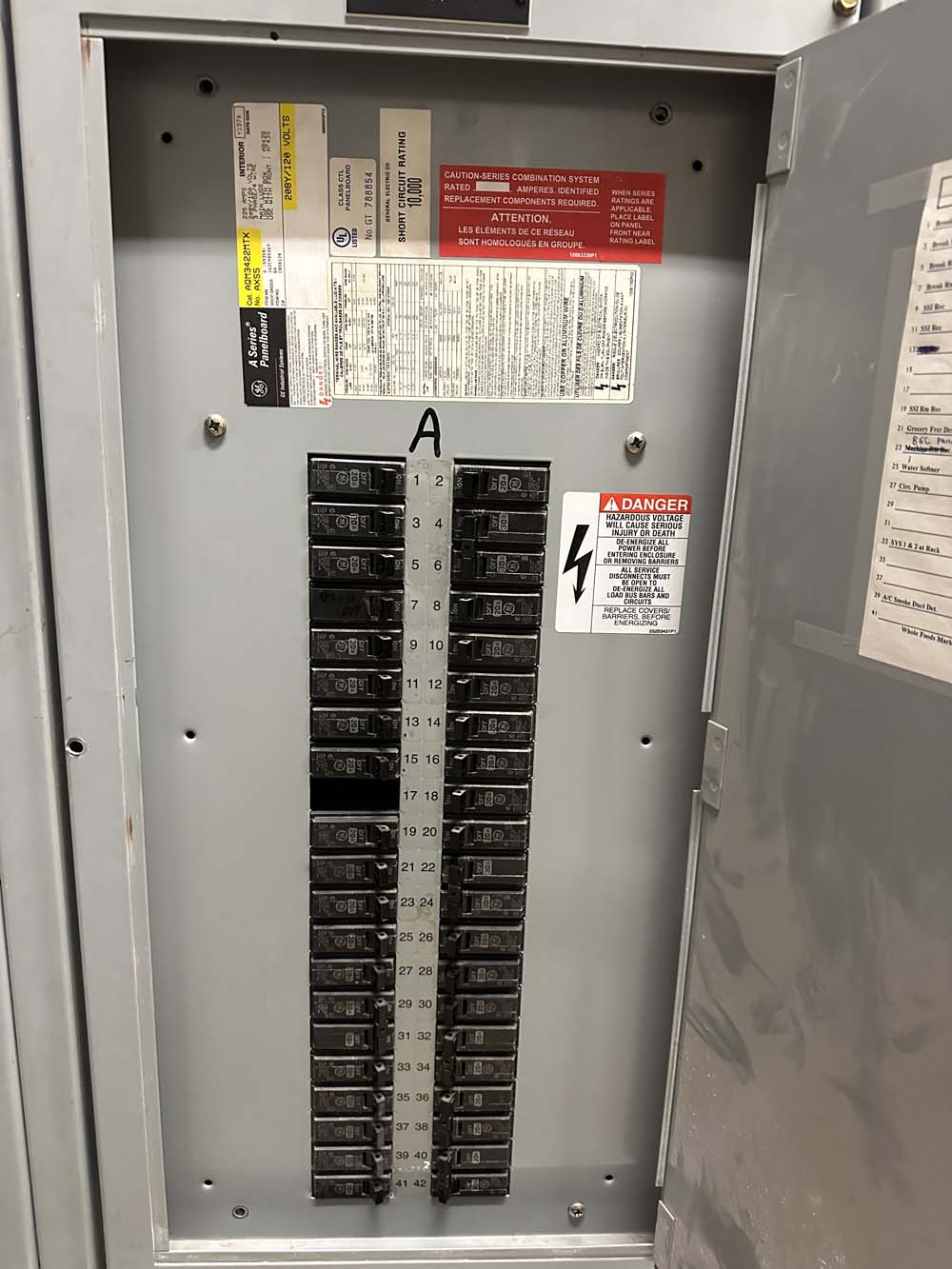

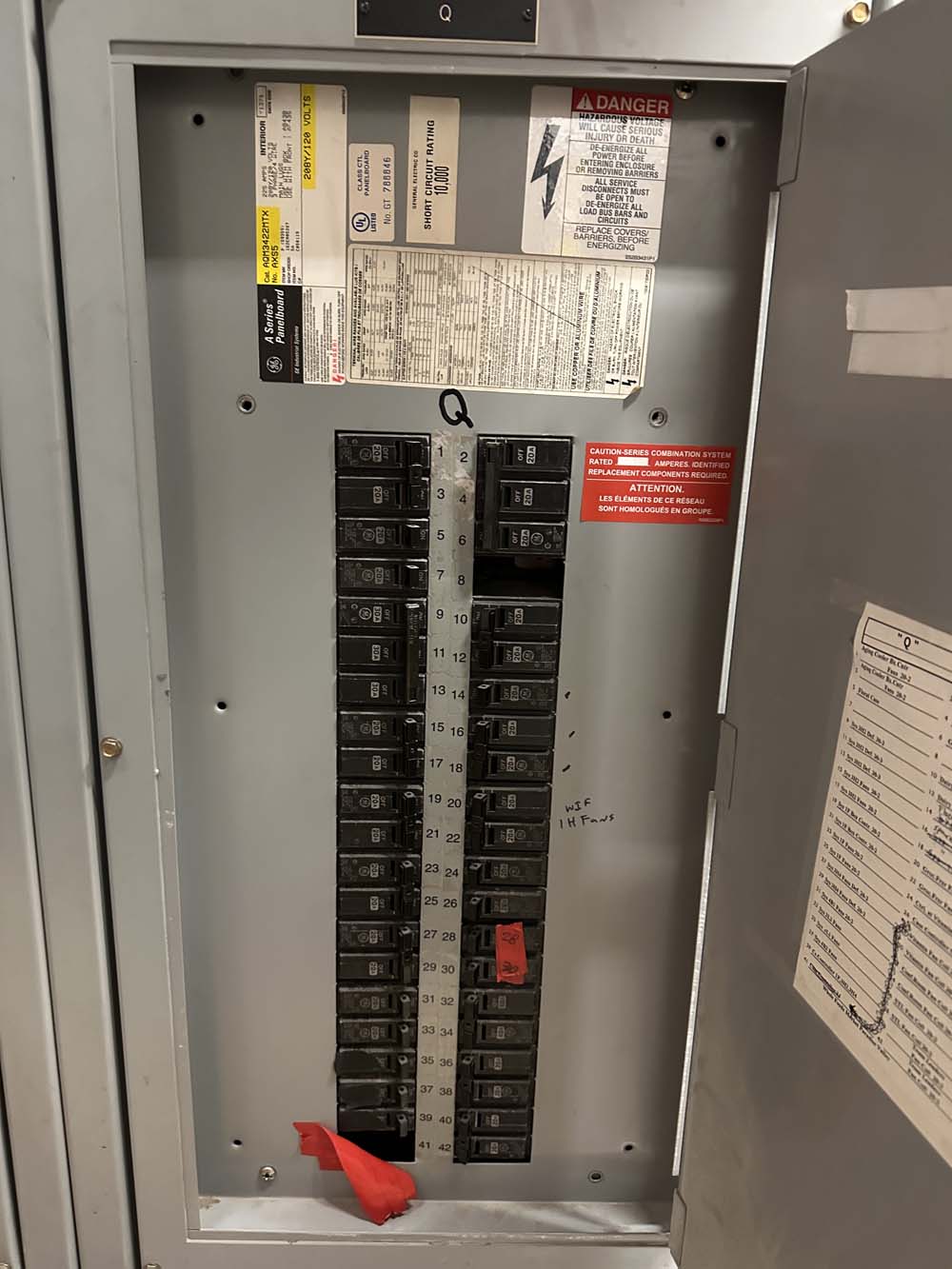

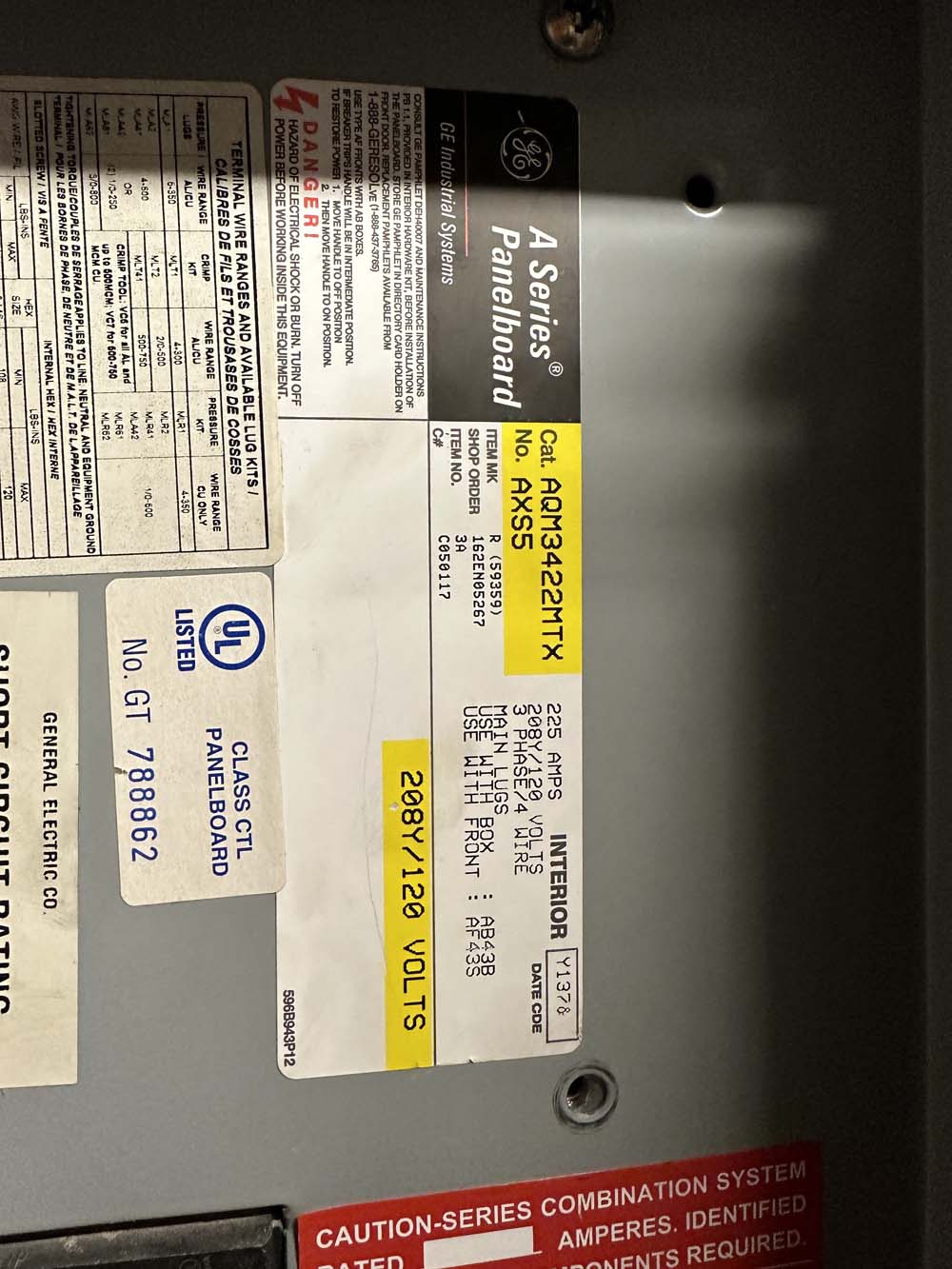

Electrical Panelboard

General Electric
Catalog #:  AQM3422MTX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQM3422MTX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  40 Circuits (Used)
Main Breaker:  No

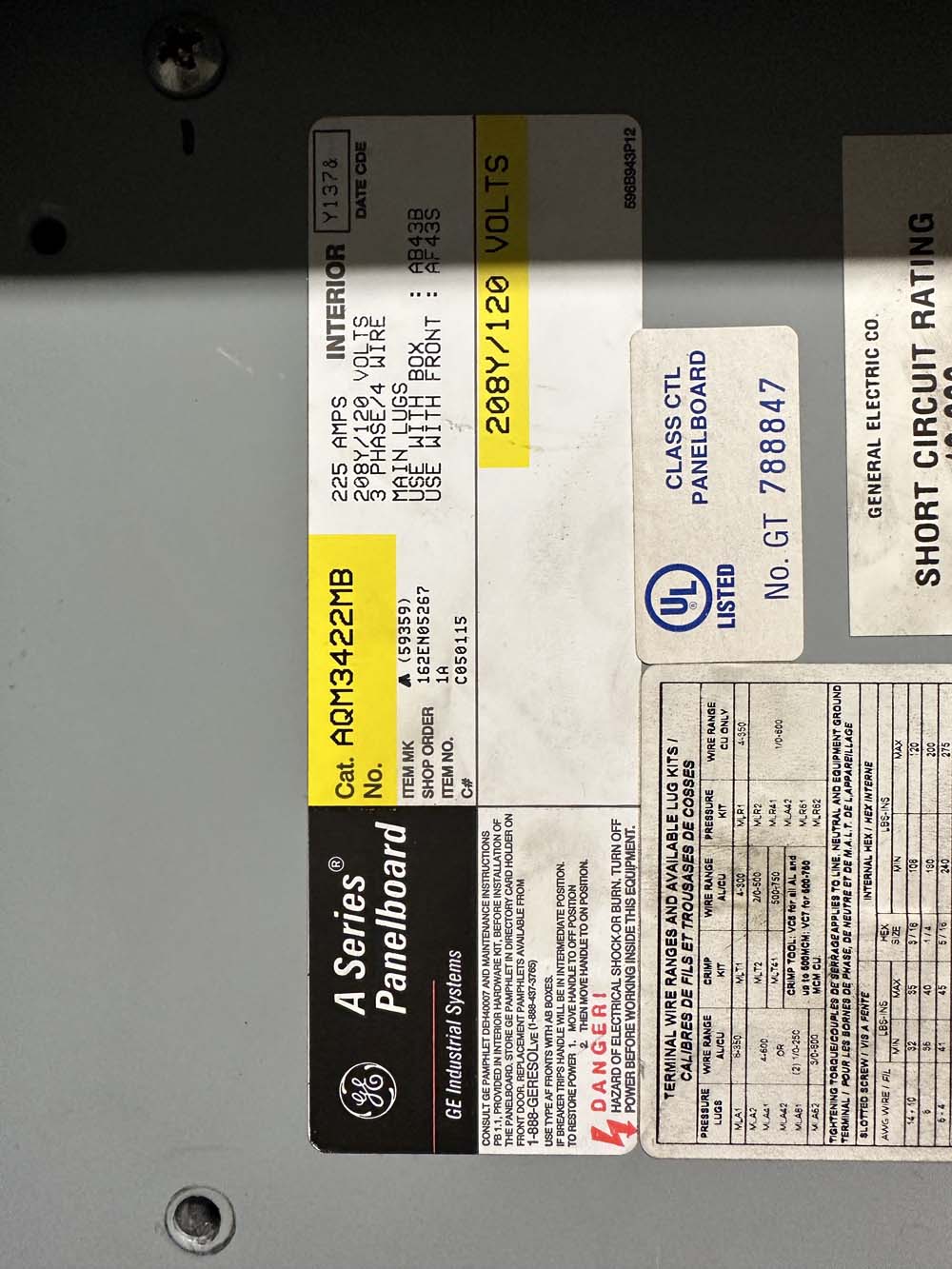

Electrical Panelboard

General Electric
Catalog #:  AQM3422MB
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  39 Circuits (Used)
Main Breaker:  No
Electrical Panelboard

General Electric
Catalog #:  AQM3422MTX
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  41 Circuits (Used)
Main Breaker:  No

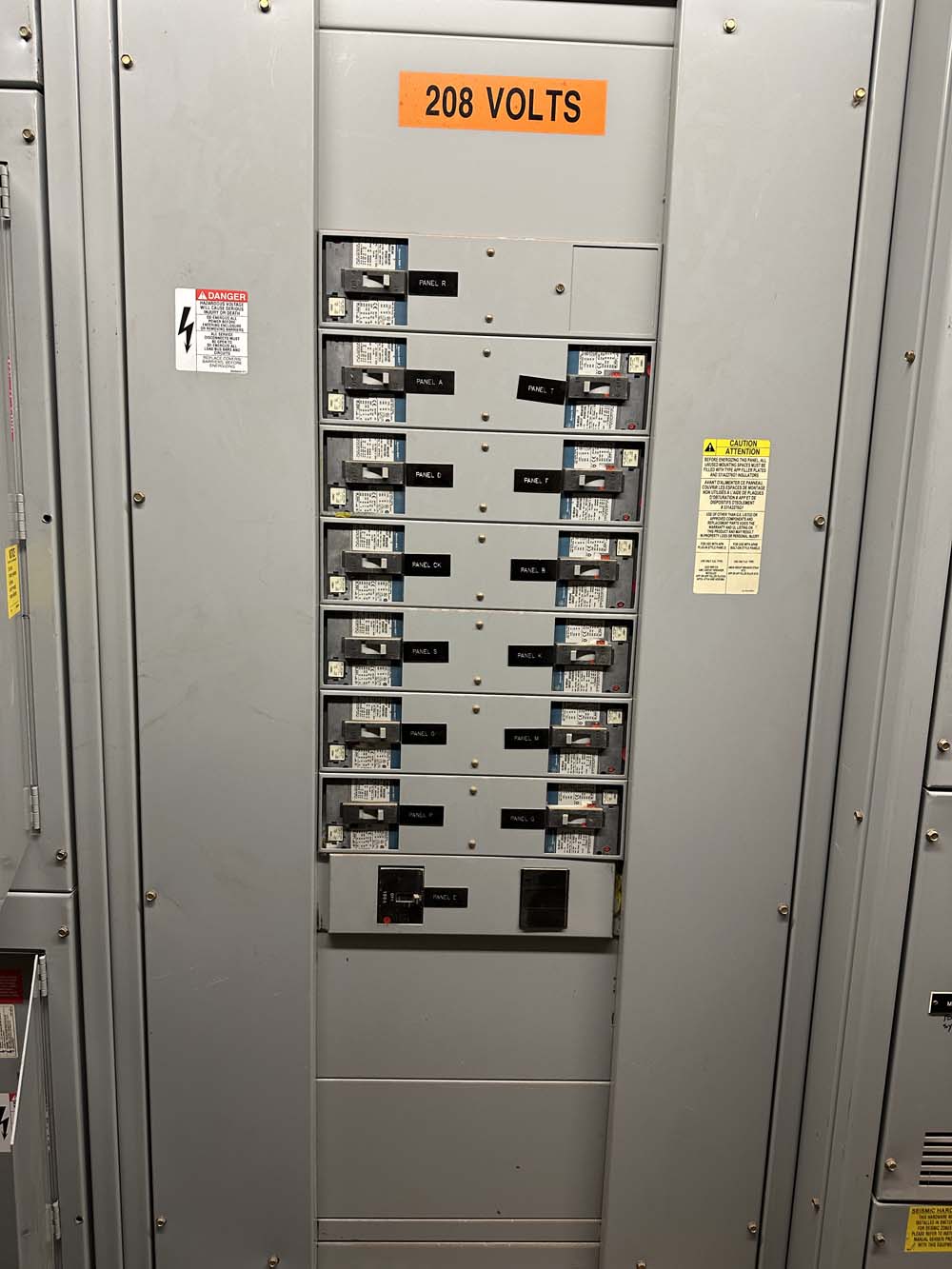

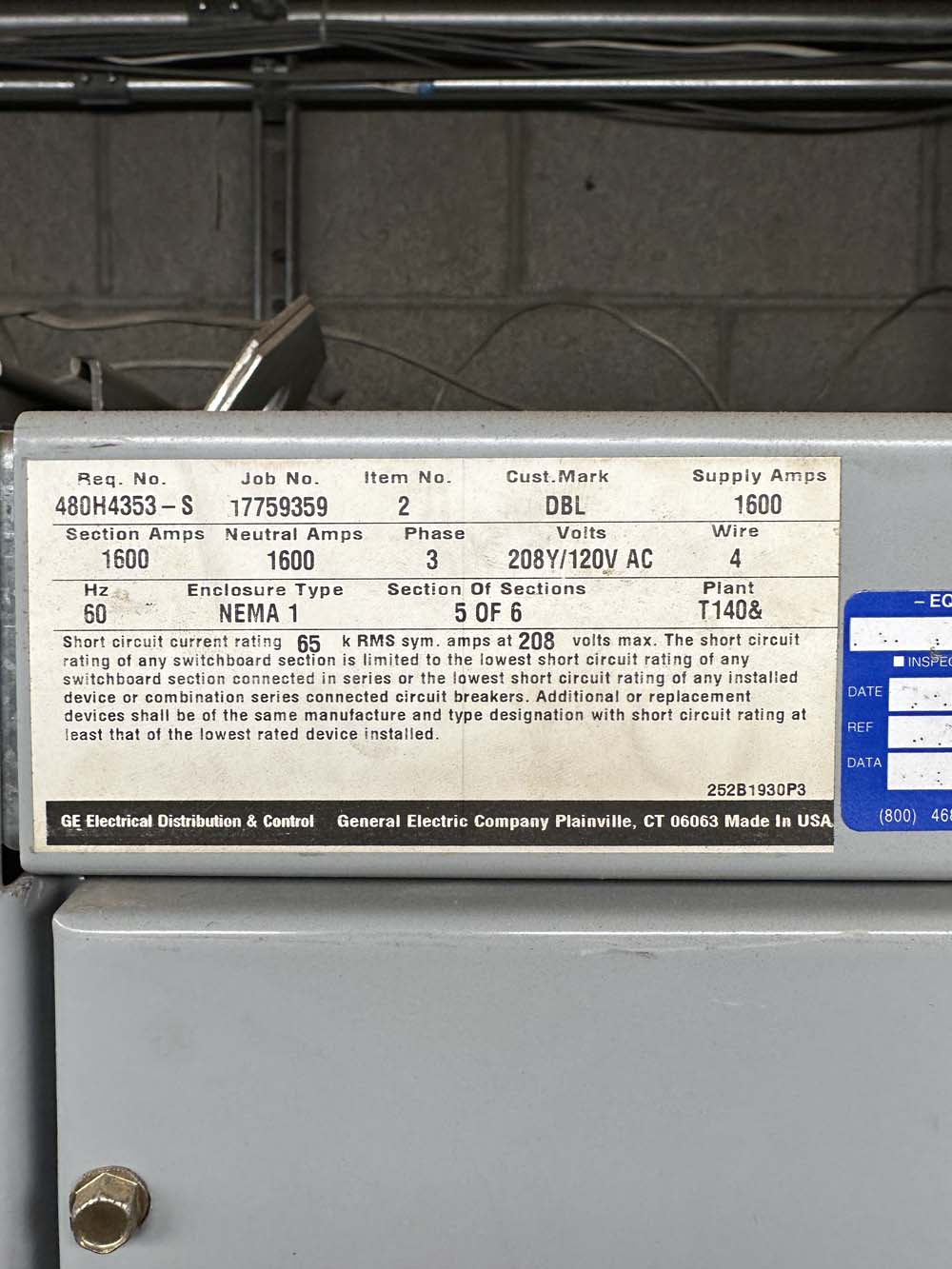

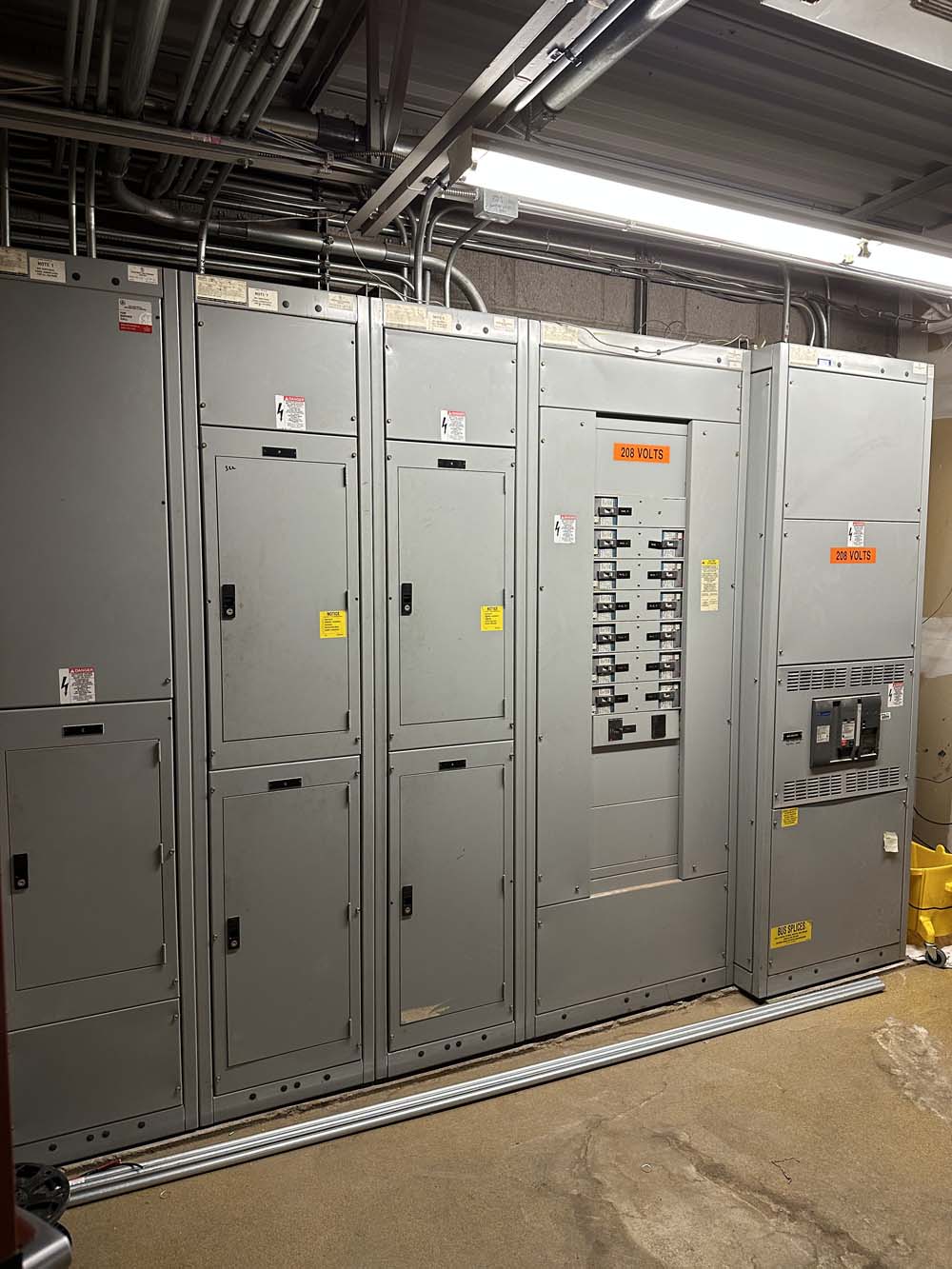

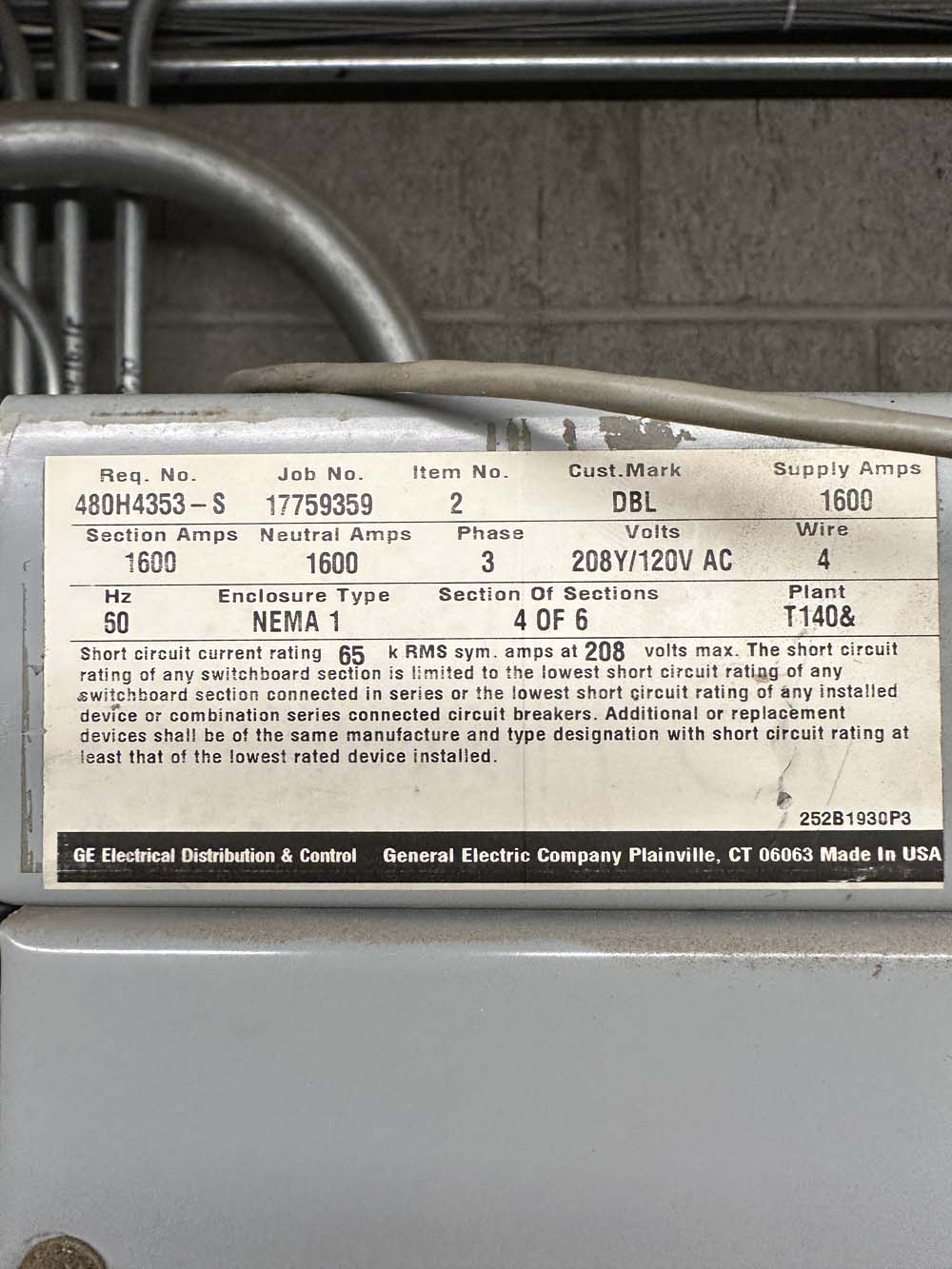

Electrical Panelboard

General Electric
Catalog #:  480H4353-S
Voltage:  208Y/120
Amps:  1600
Phase:  3Ph|4W
Circuits:  14 Circuits (Used)
Main Breaker:  No

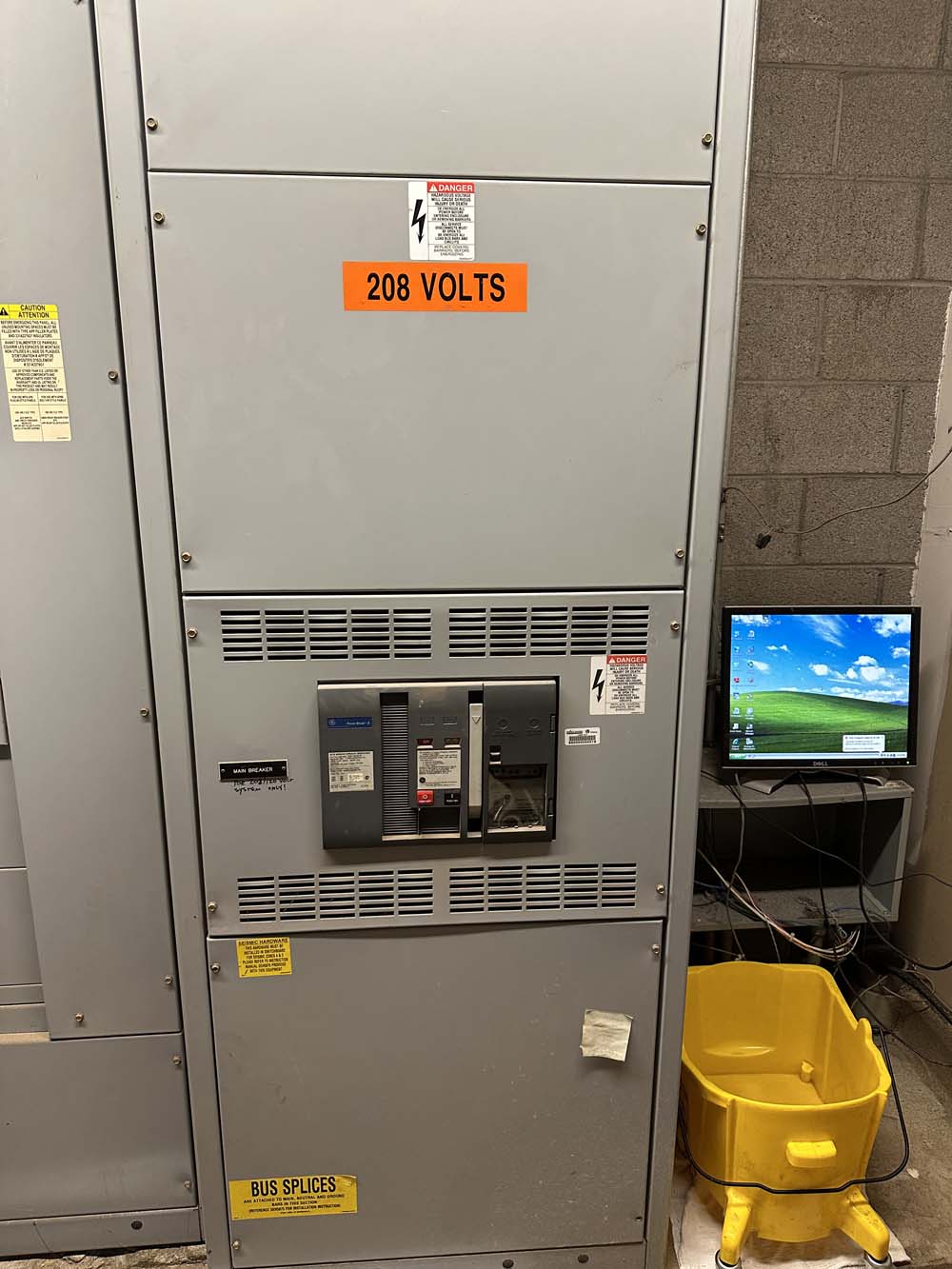

Electrical Panelboard

General Electric
Catalog #:  480H4353-S
Voltage:  208Y/120
Amps:  1600
Phase:  3Ph|4W
Circuits:  n/a
Main Breaker:  Yes
Electrical Panelboard

General Electric
Catalog #:  480H4353-S
Voltage:  208Y/120
Amps:  1200
Phase:  3Ph|4W
Circuits:  14 Circuits (Used)
Main Breaker:  No

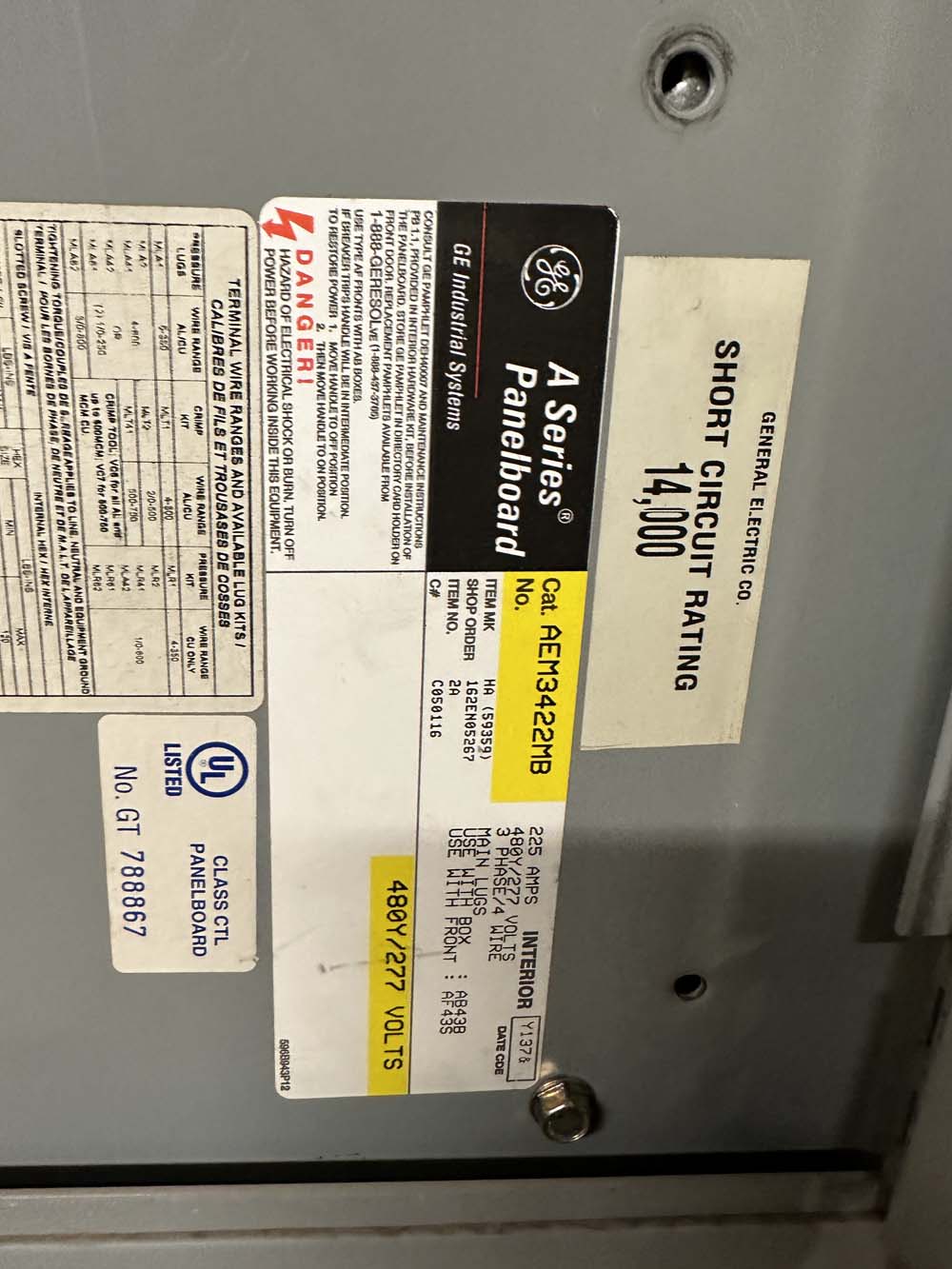

Electrical Panelboard

General Electric
Catalog #:  AEM3422MB
Voltage:  480Y/277
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No

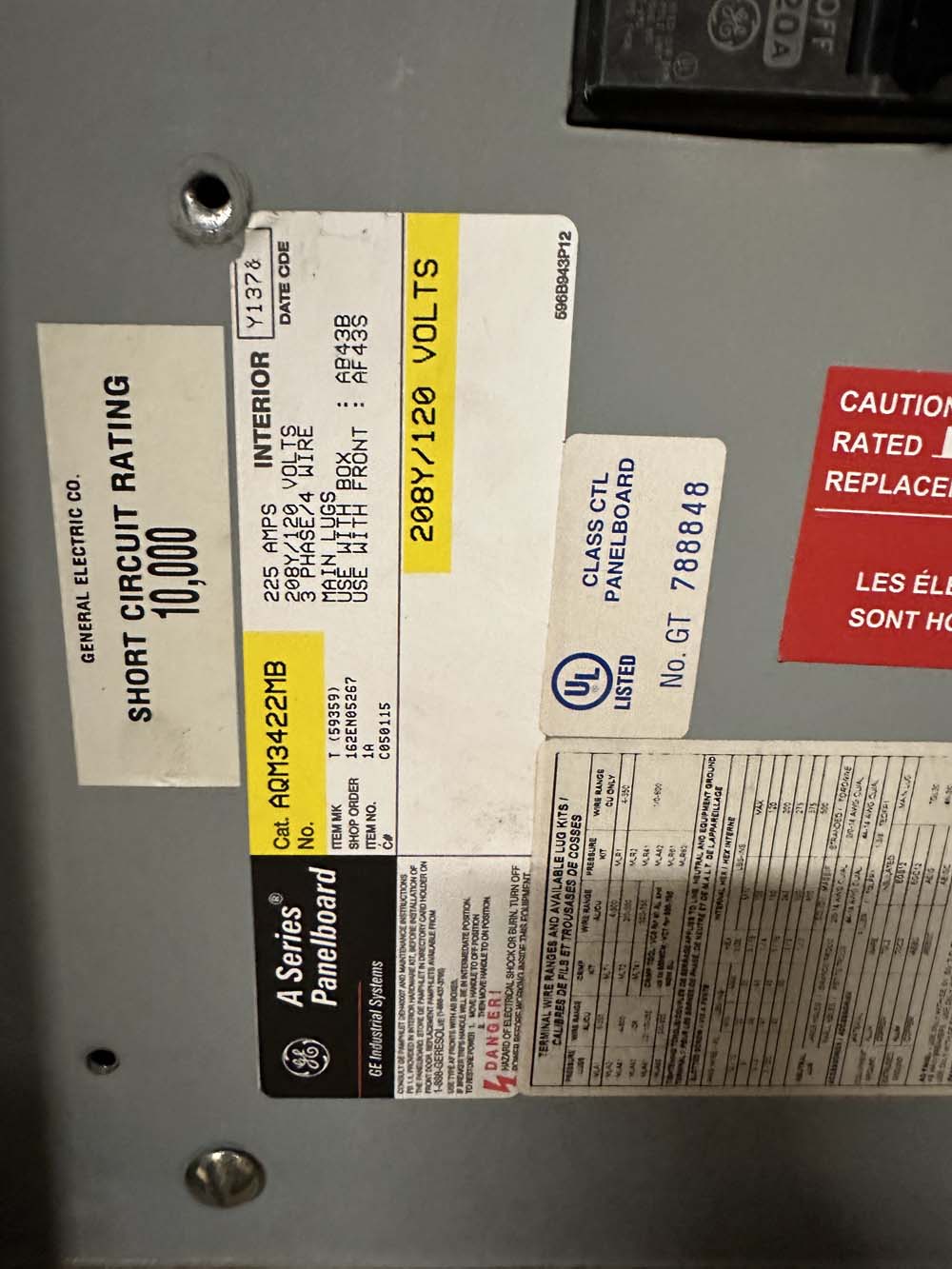

Electrical Panelboard

General Electric
Catalog #:  AQM3422MB
Voltage:  208Y/120
Amps:  225
Phase:  3Ph|4W
Circuits:  42 Circuits (Used)
Main Breaker:  No

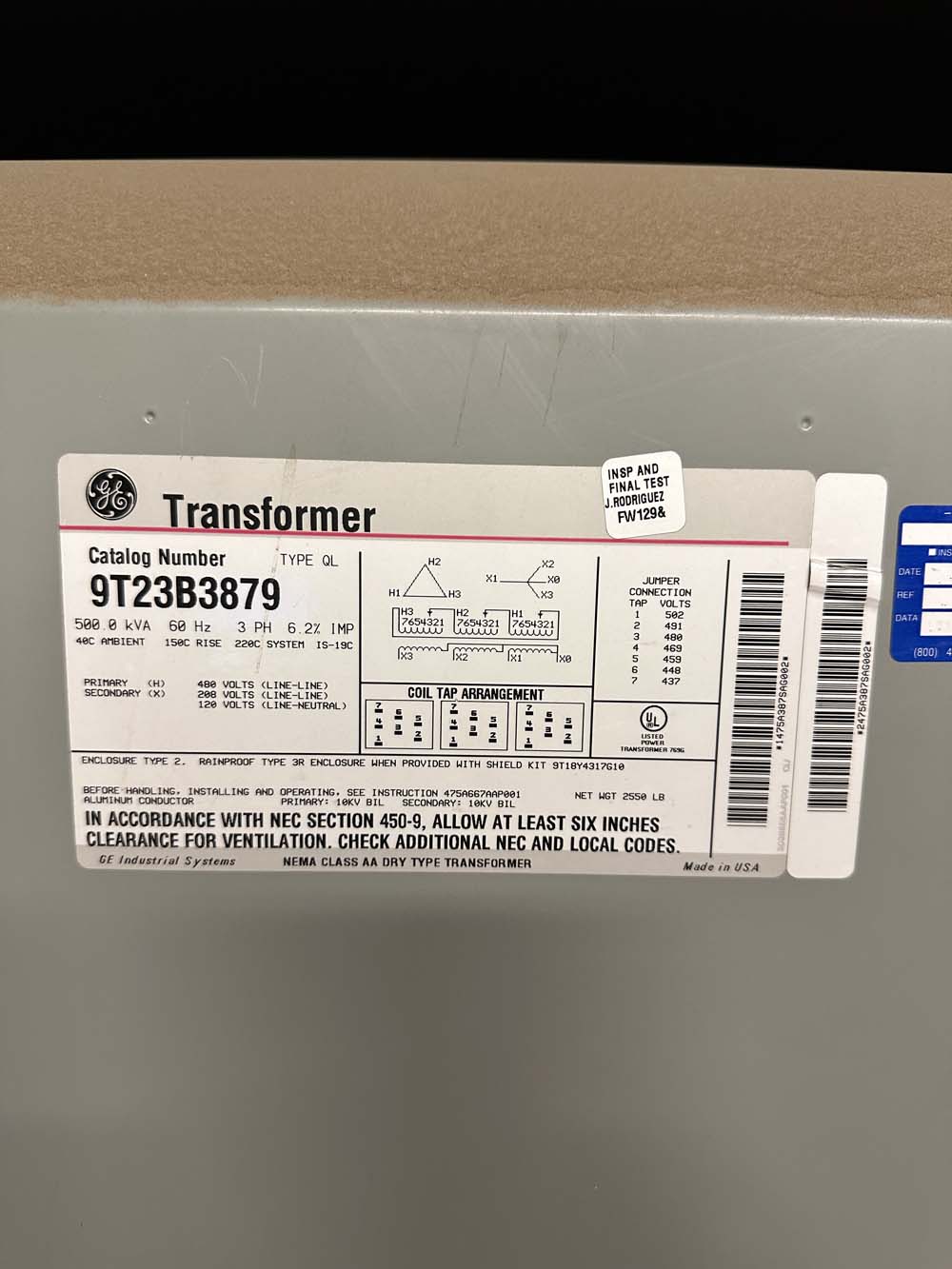

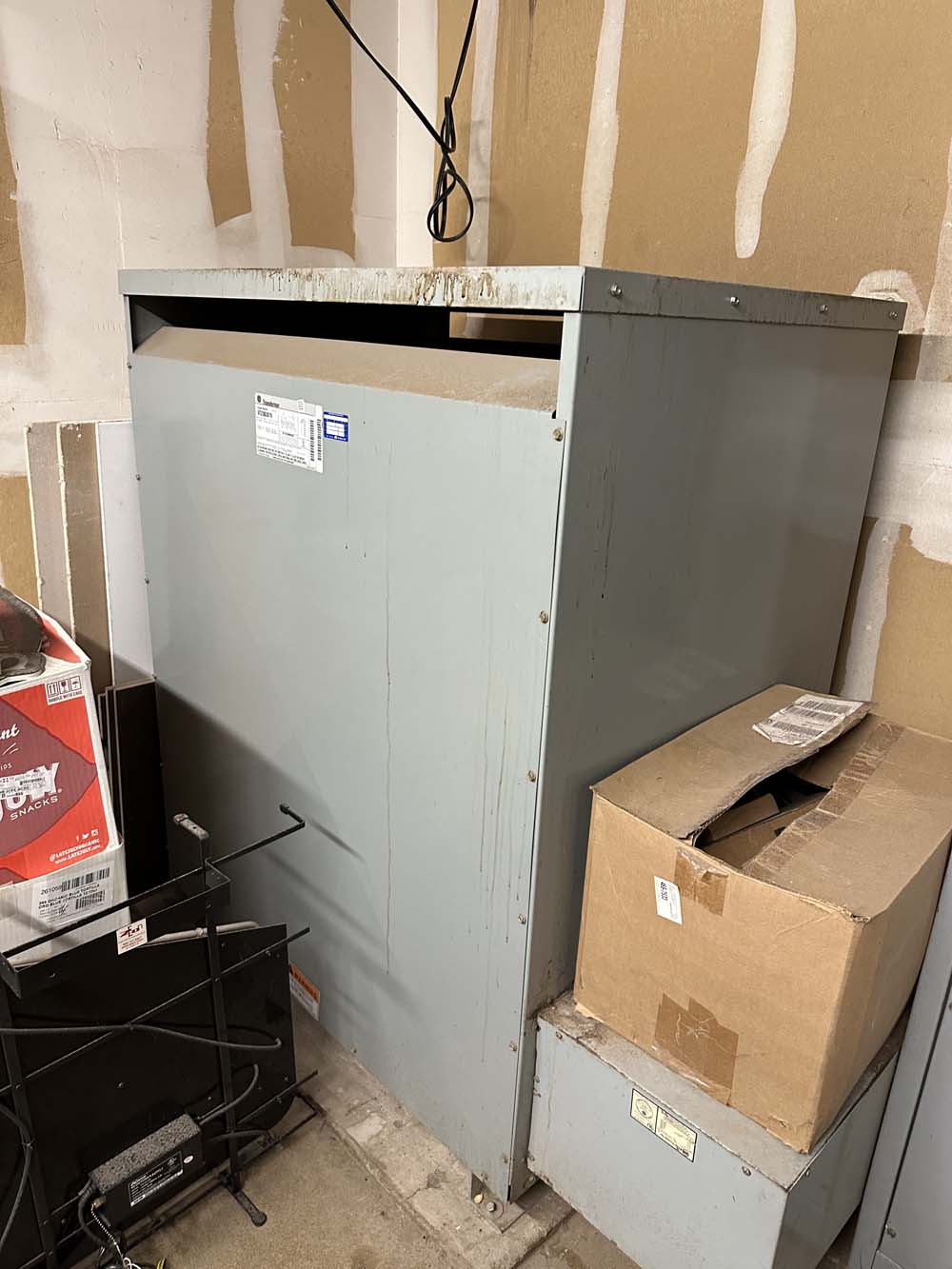

Transformer

General Electric
Catalog #:  9T23B3879
Voltage:  208Y/120
Phase:  3Ph
Hertz:  60
kVA:  500

Mechanical

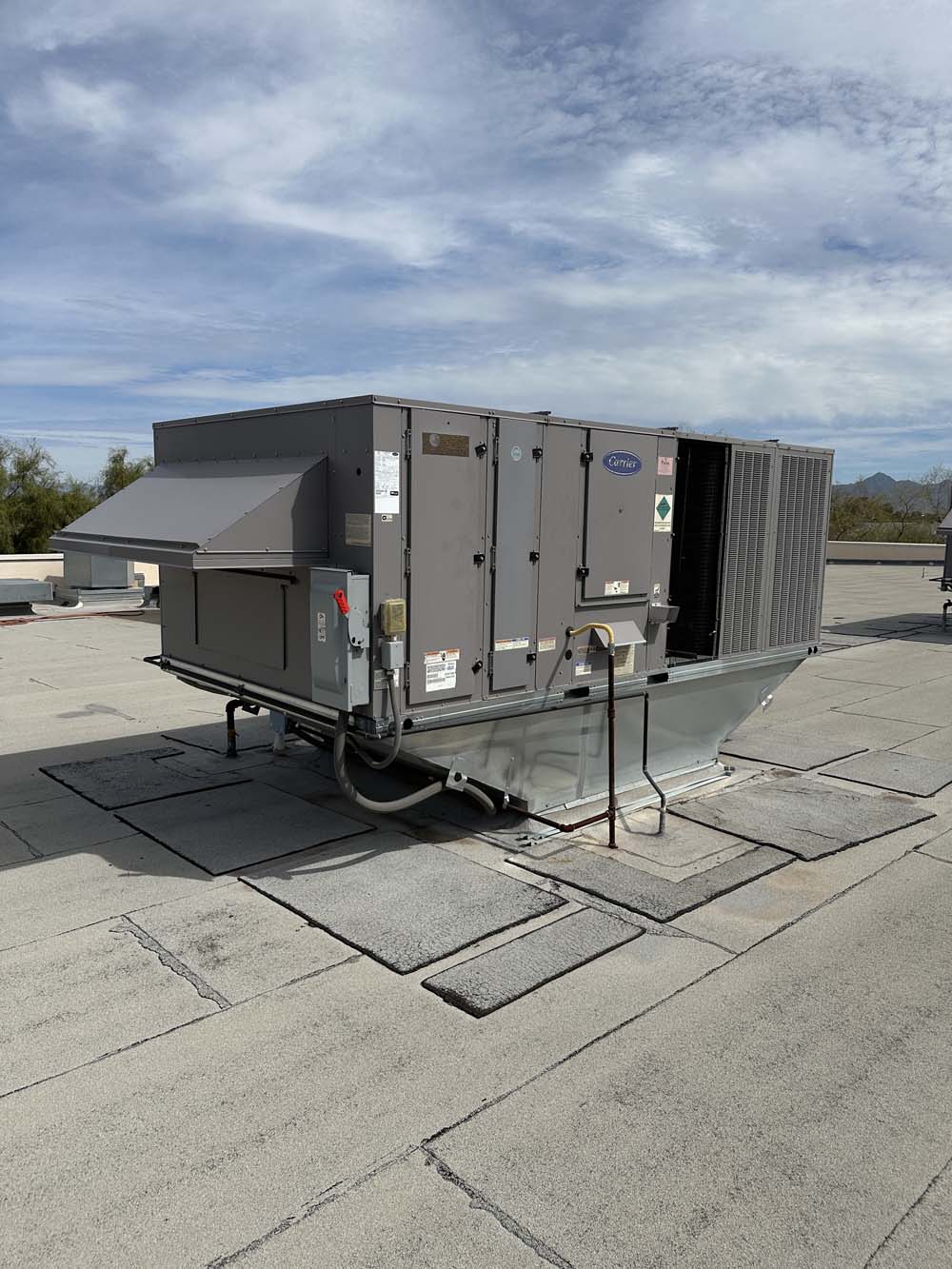

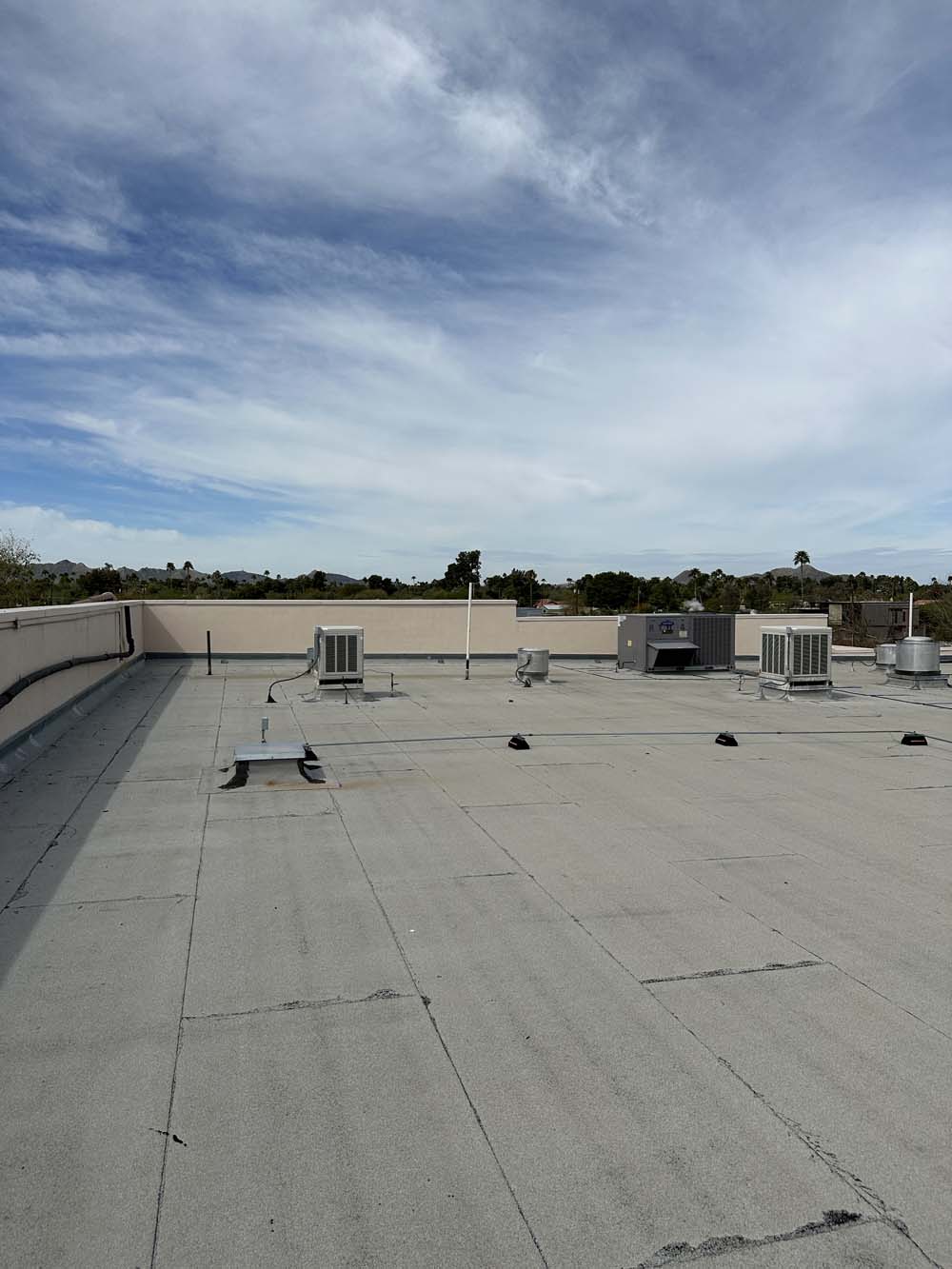

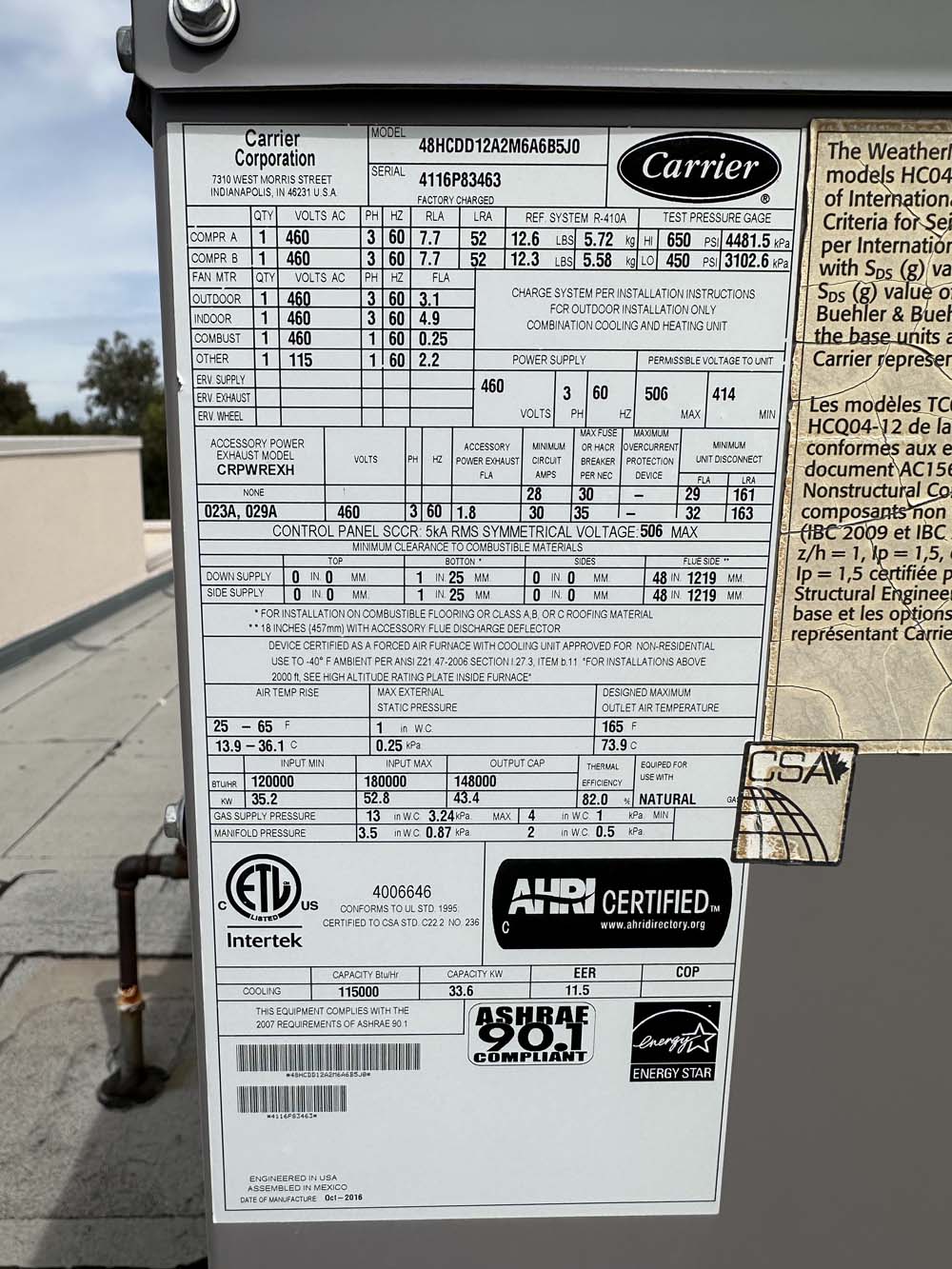

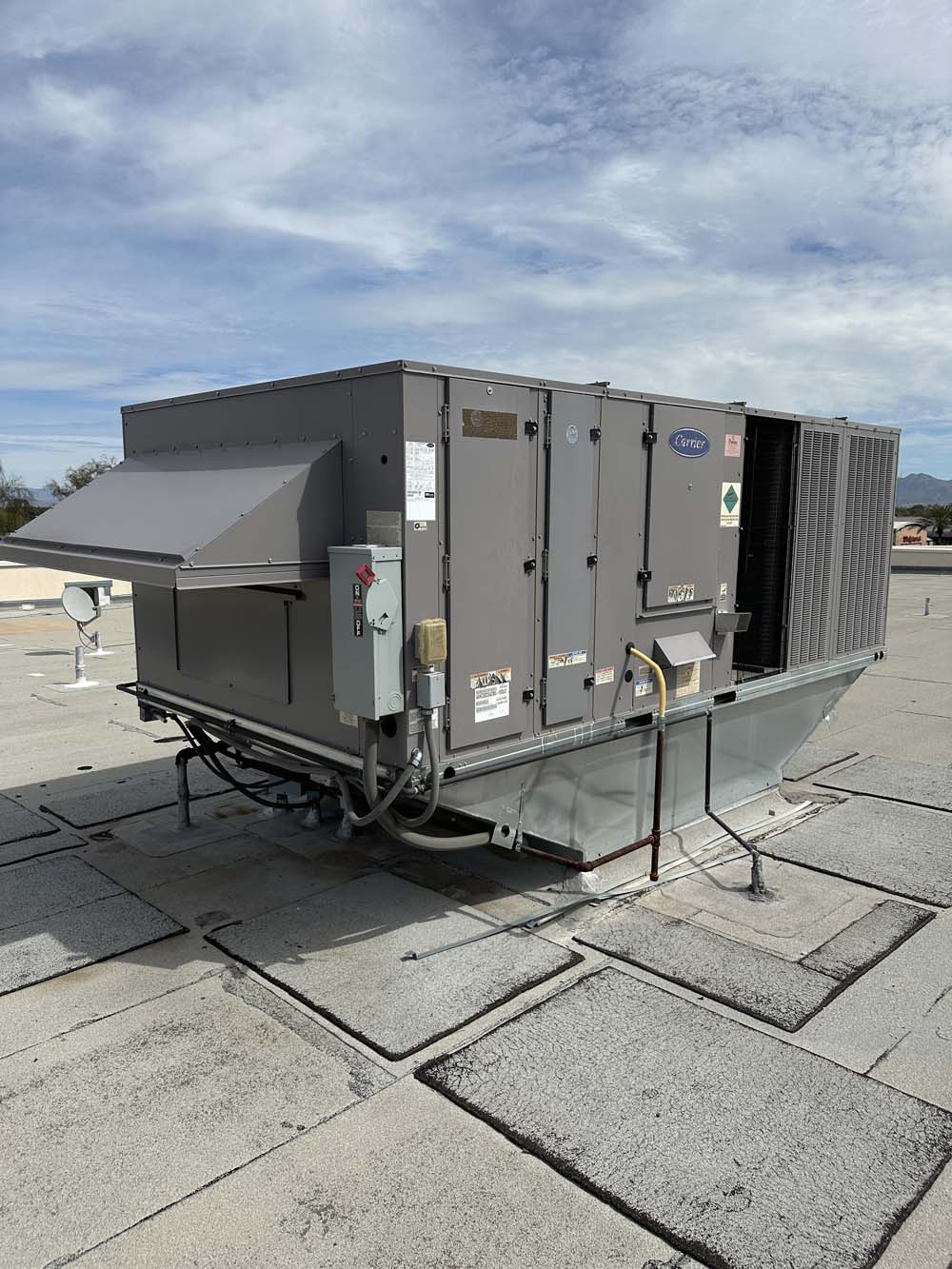

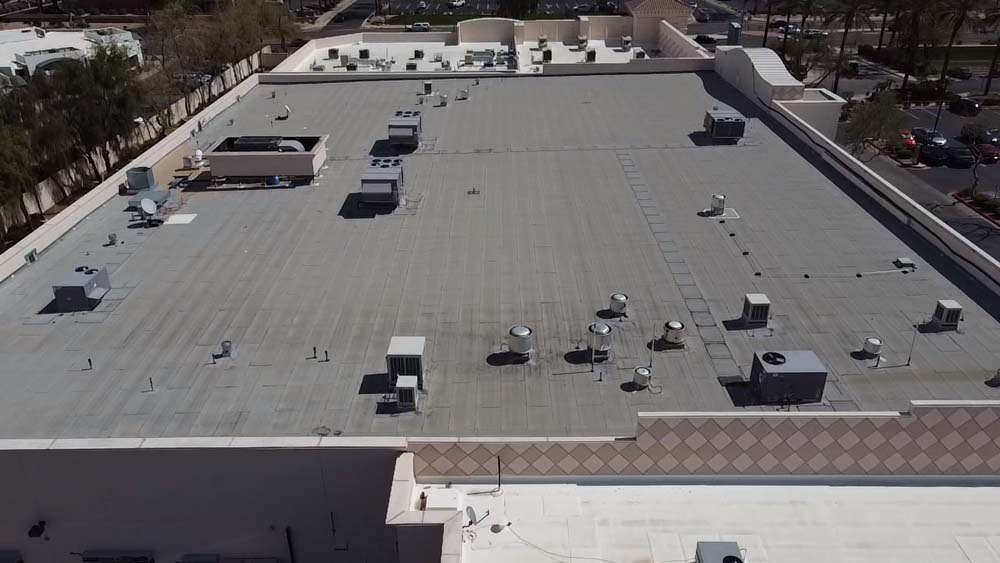

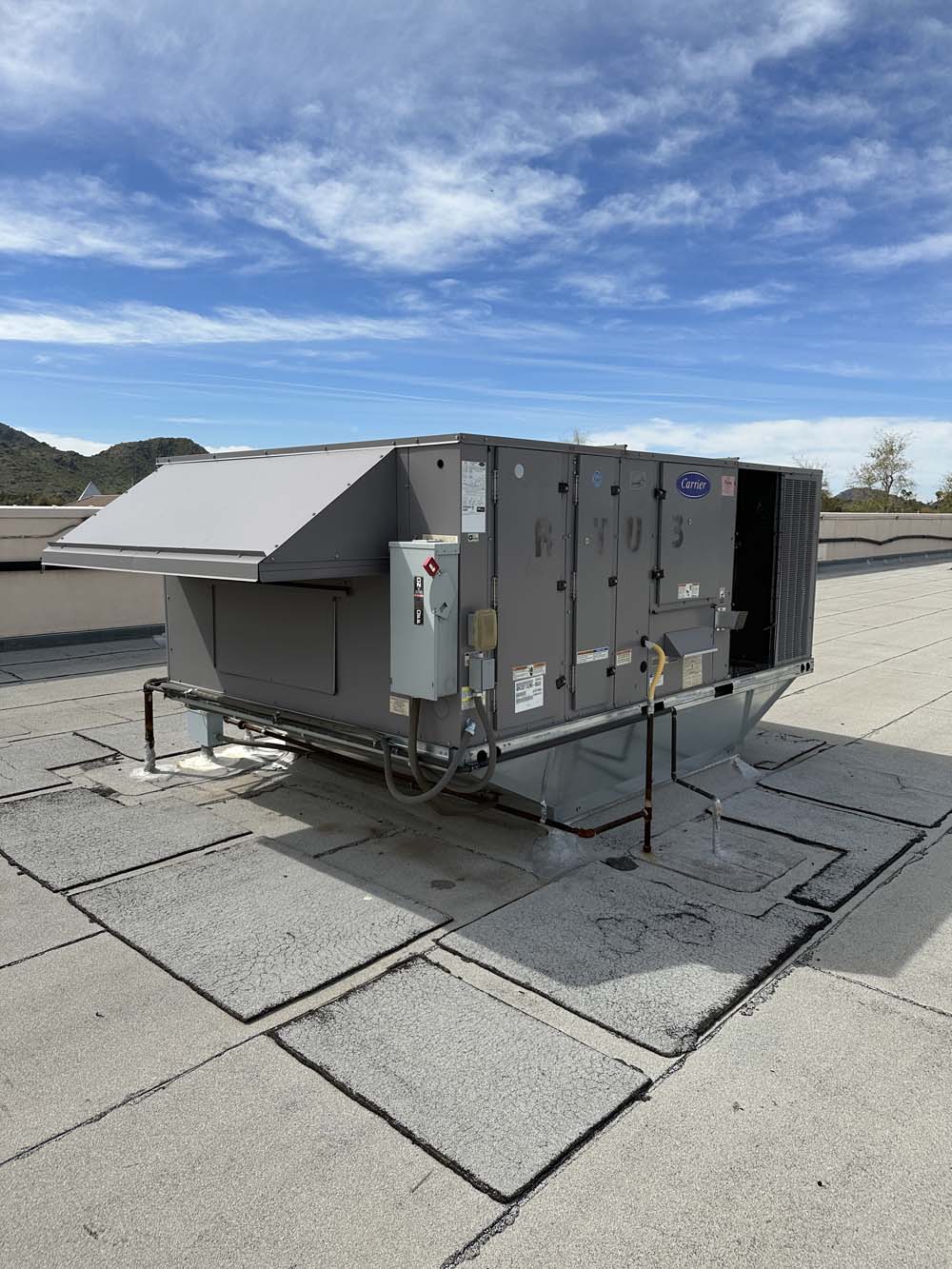

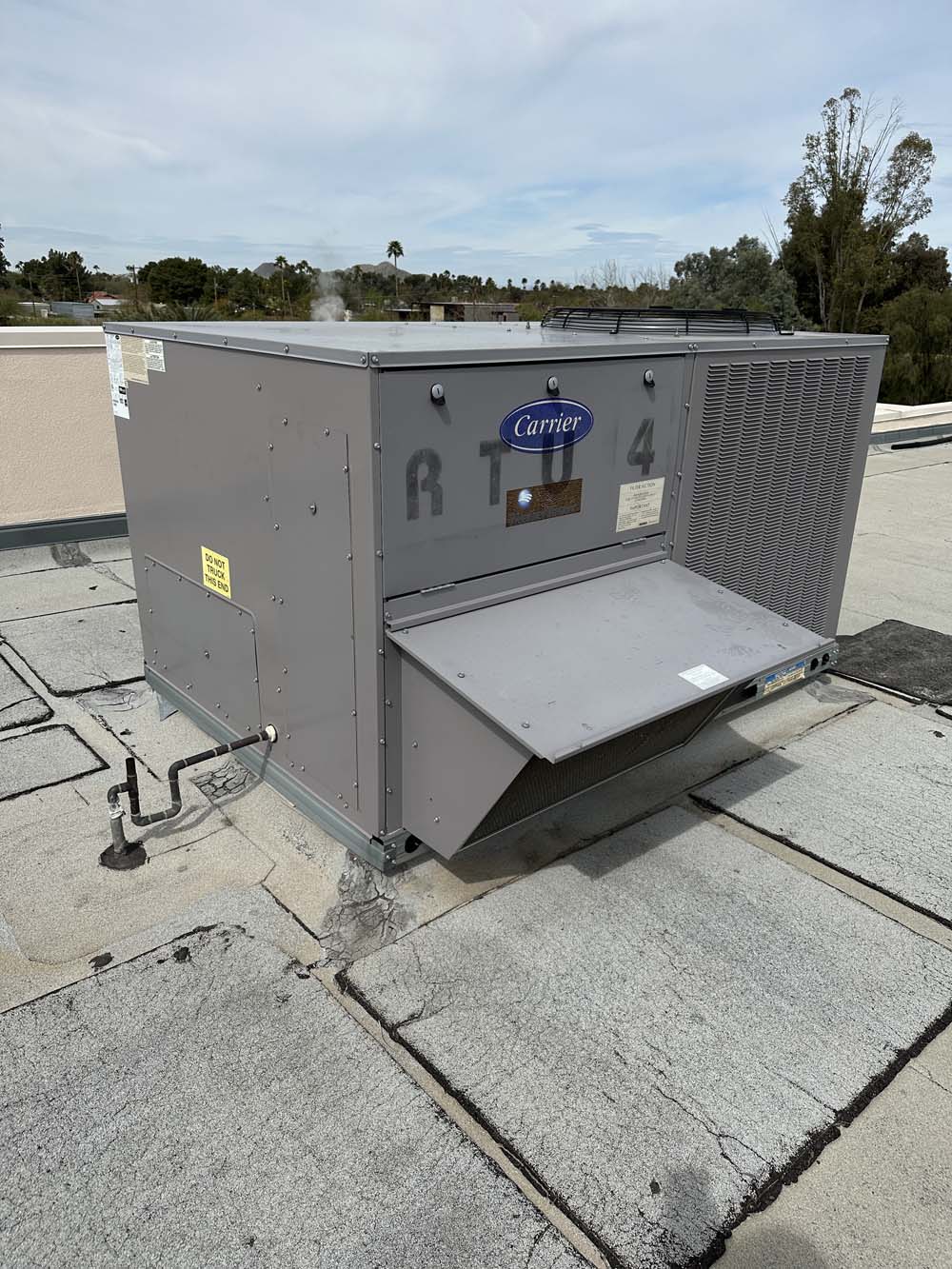

Rooftop Unit

Carrier
Model #:  48HCDD12A2M6A6B5J0
Serial #:  4116P83463
Capacity:  10 Ton
Manf. Date:  Oct 2016
Comments:  Gas

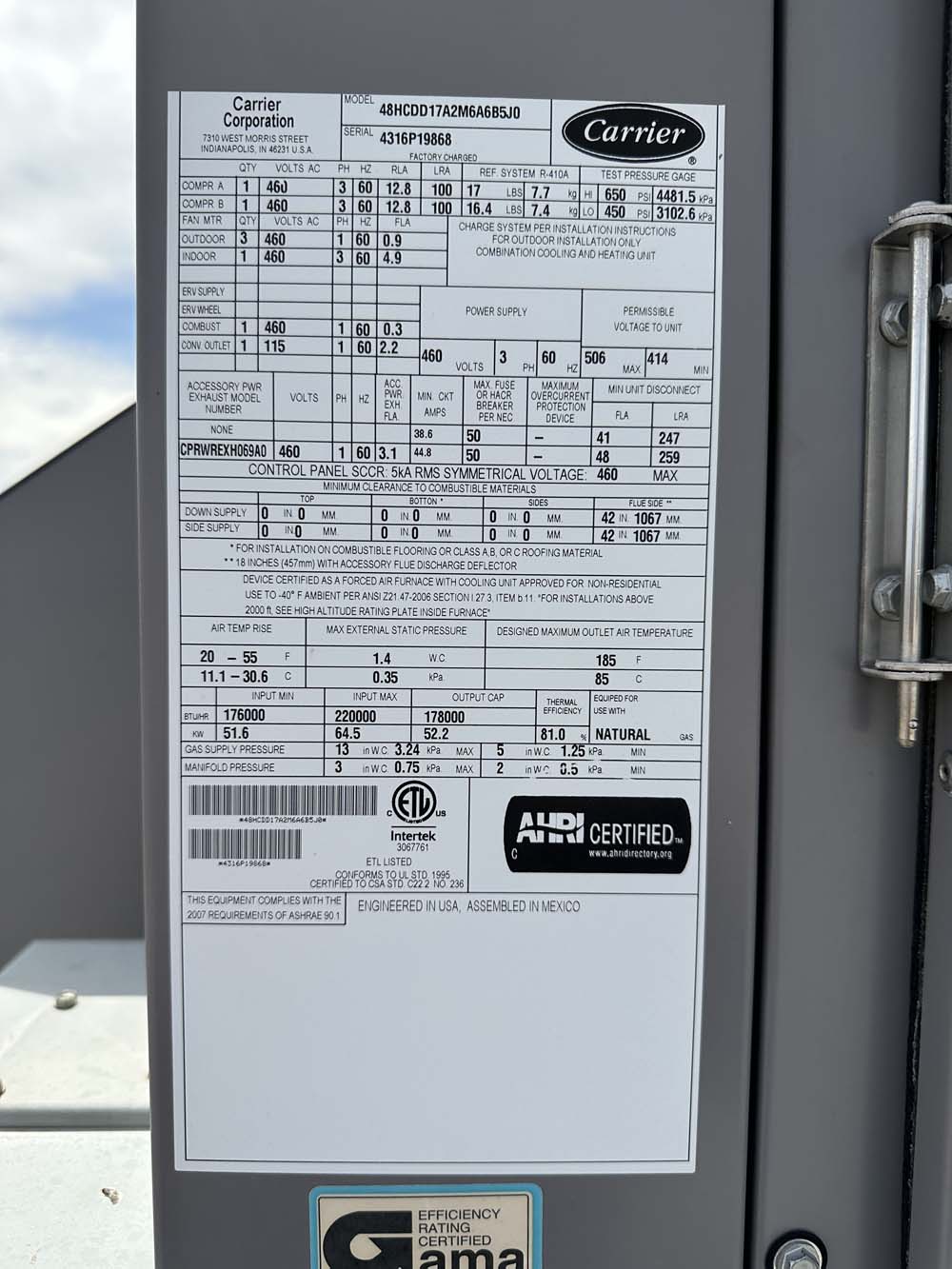

Rooftop Unit

Carrier
Model #:  48HCDD17A2M6A6B5J0
Serial #:  4316P19868
Capacity:  15 Ton
Manf. Date:  Oct 2016
Comments:  Gas

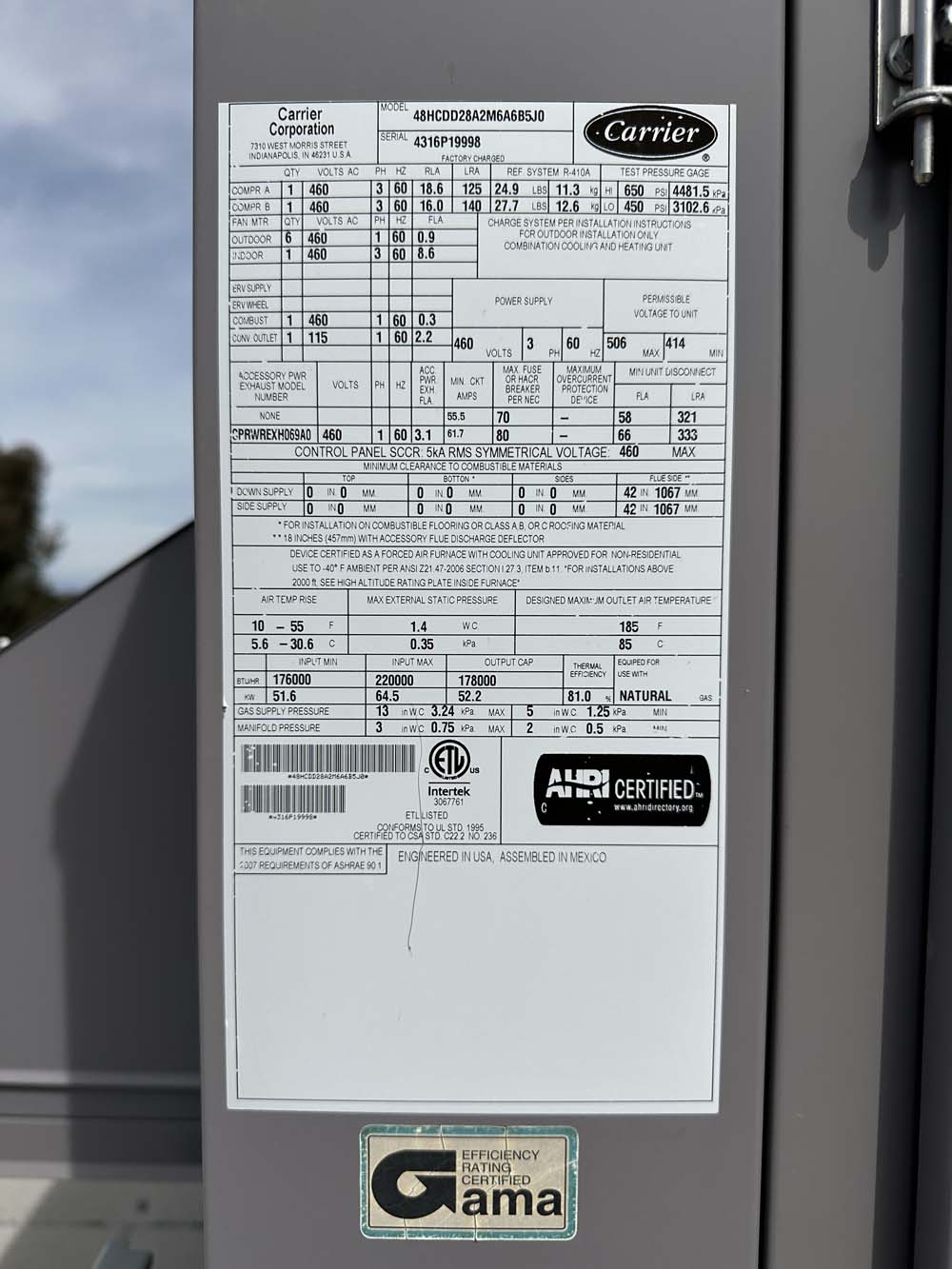

Rooftop Unit

Carrier
Model #:  48HCDD28A2M6A6B5J0
Serial #:  4316P19998
Capacity:  25 Ton
Manf. Date:  Oct 2016
Comments:  Gas

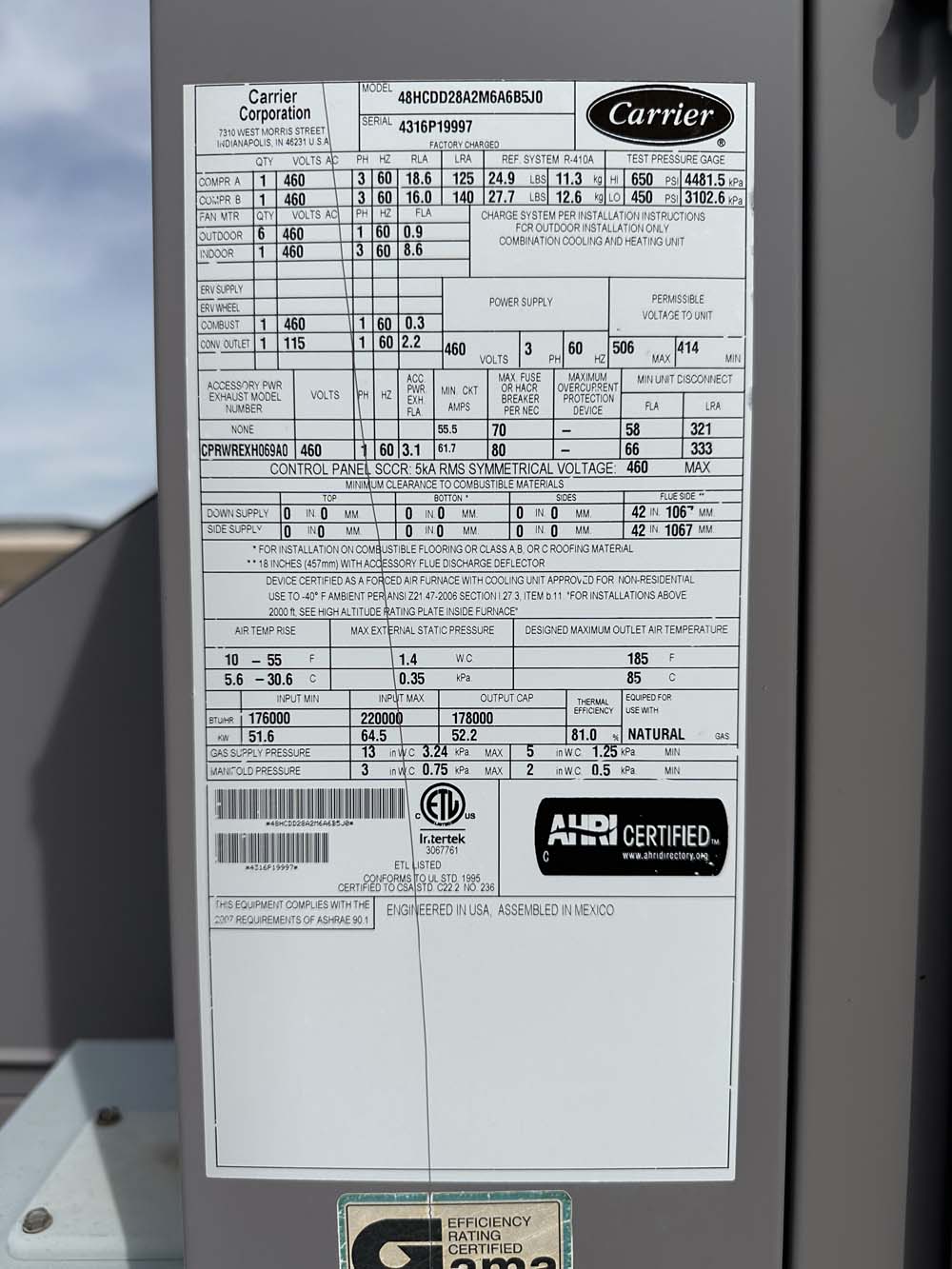

Rooftop Unit

Carrier
Model #:  48HCDD28A2M6A6B5J0
Serial #:  4316P19997
Capacity:  25 Ton
Manf. Date:  Oct 2016
Comments:  Gas

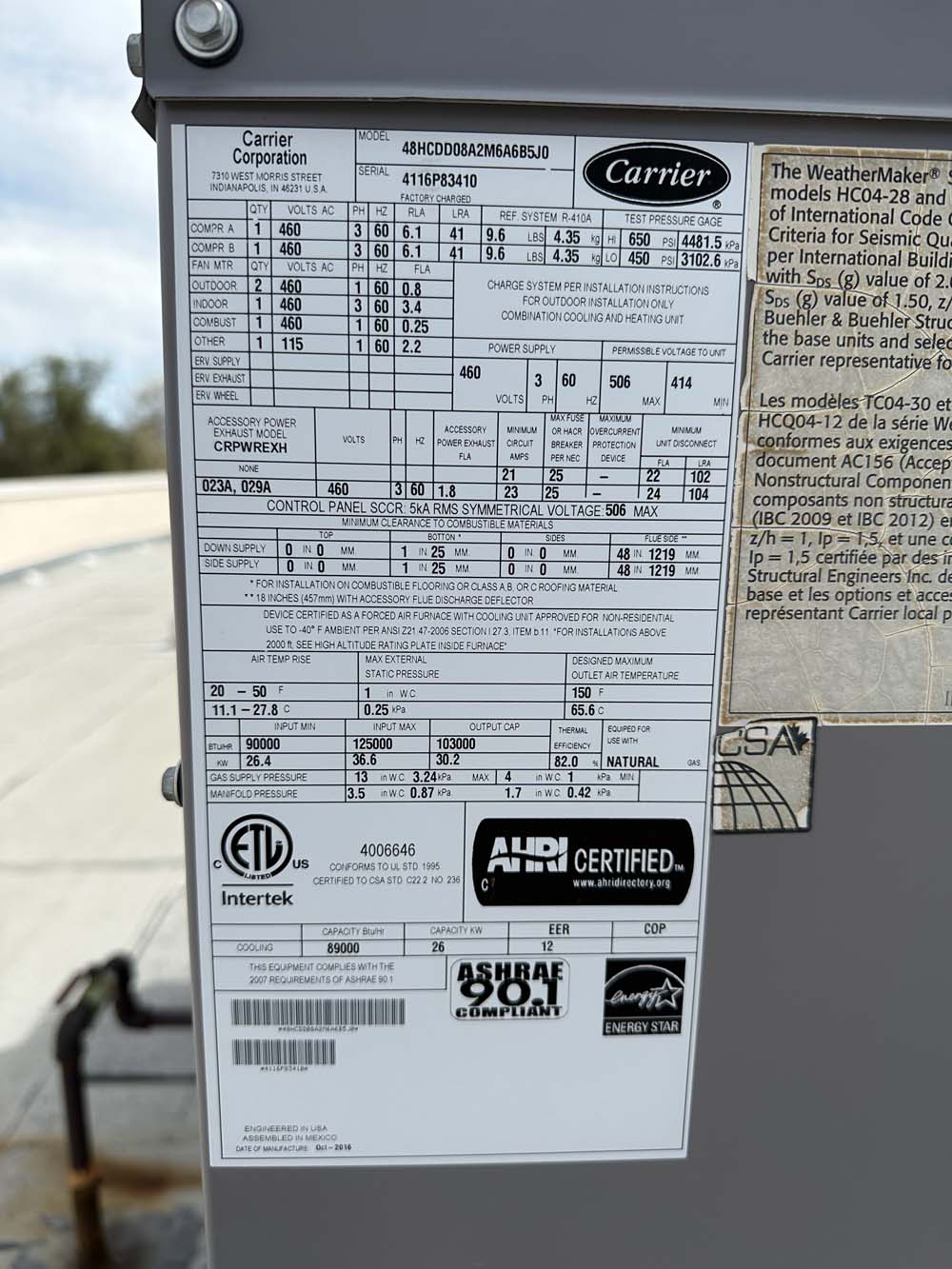

Rooftop Unit

Carrier
Model #:  48HCDD08A2M6A6B5J0
Serial #:  4116P83410
Capacity:  7.5 Ton
Manf. Date:  Oct 2016
Comments:  Gas

Plumbing

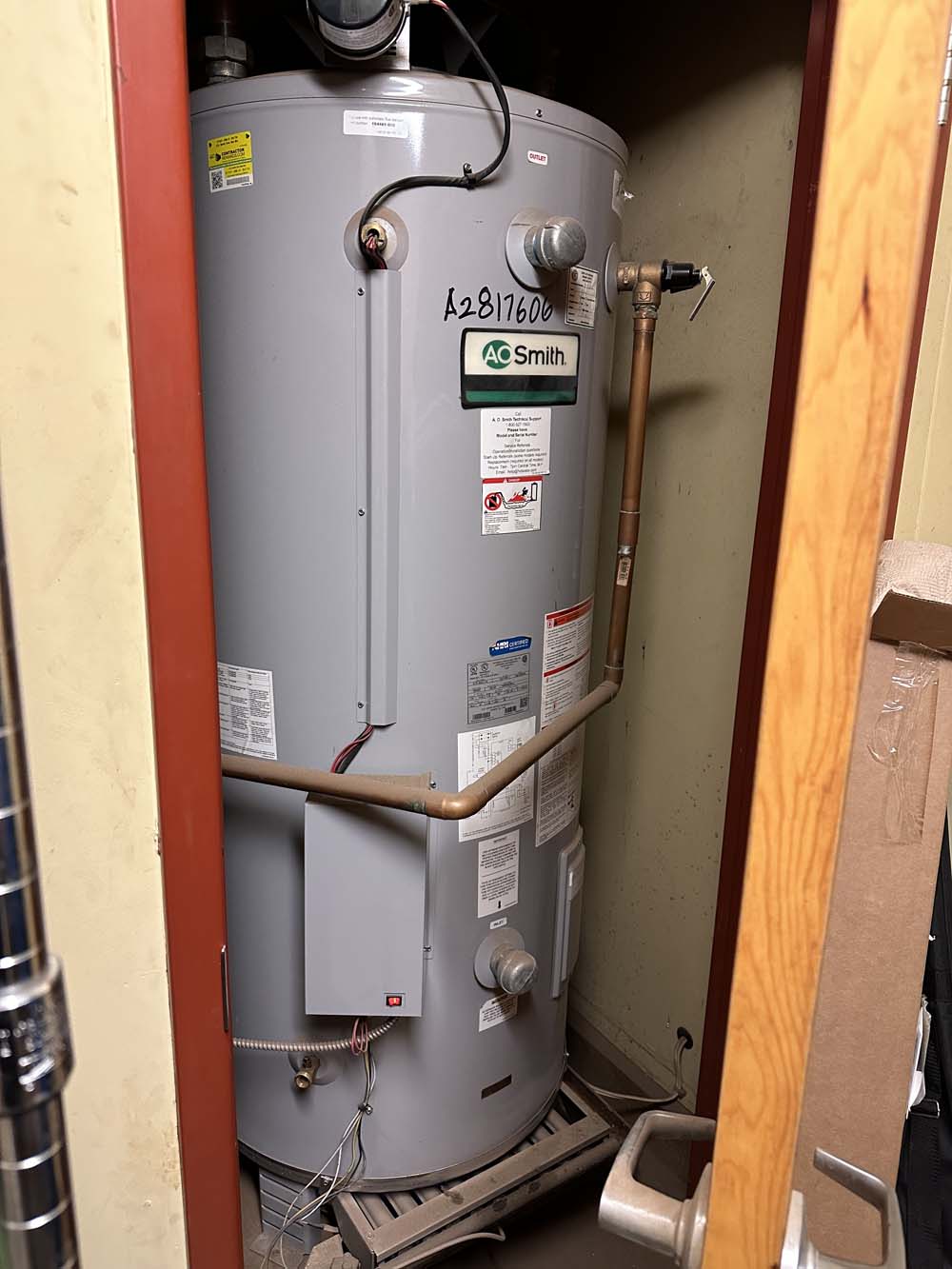

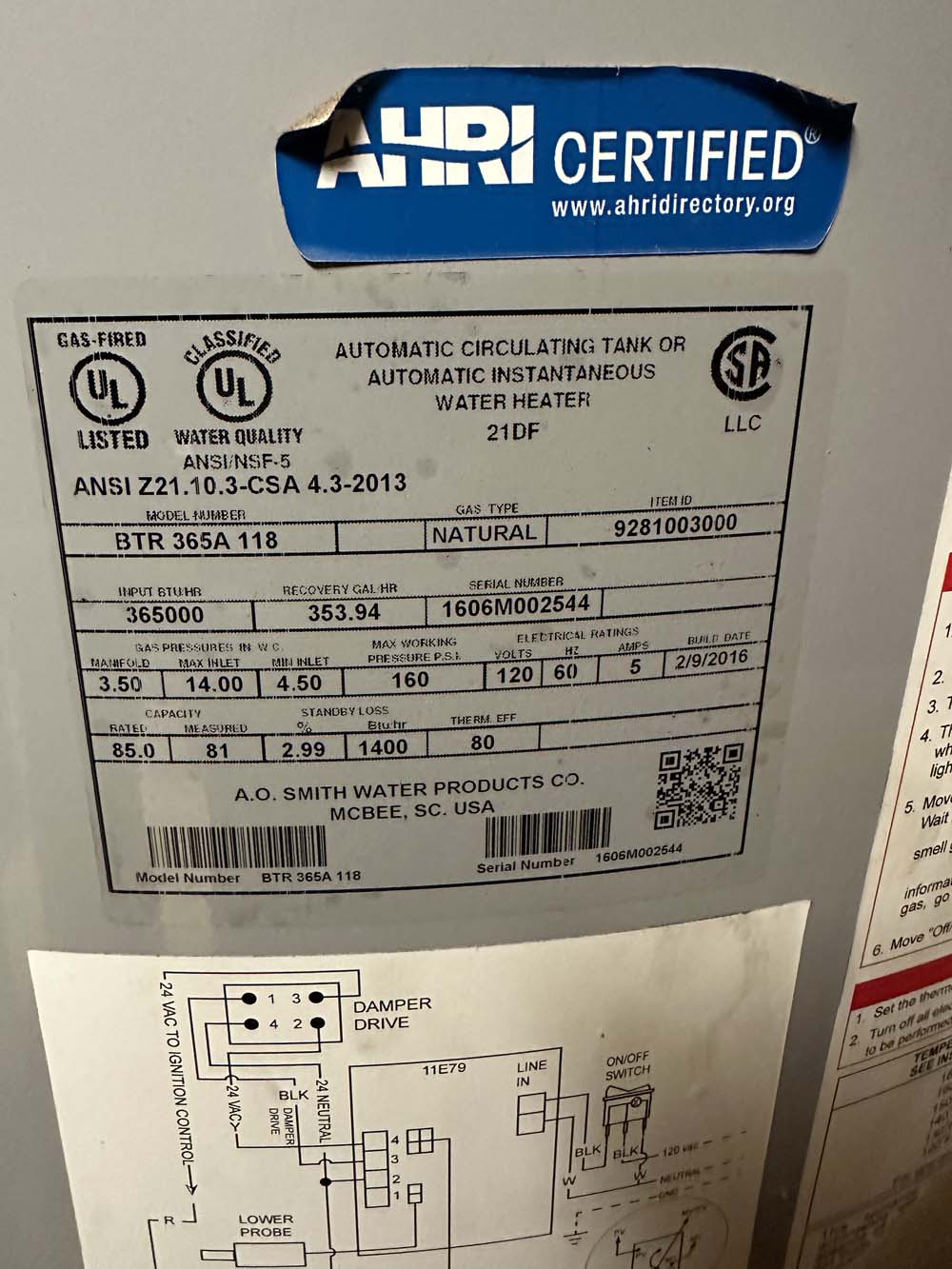

Water Heater

AO Smith
Model #:  BTR 365A 118
Serial #:  1606M002544
Gallons:  85
Utility:  Electric
  • A Complete Project Download Link
    Includes the following...
  • --------------------------------------
  • Space Condition Report (.pdf);  w/ Accessibility Assessment
  • Floor Plan (.pdf);  Adobe Acrobat File
  • Floor Plan (.dwg);  AutoCad File
  • Photos;  w/ Contact Sheets

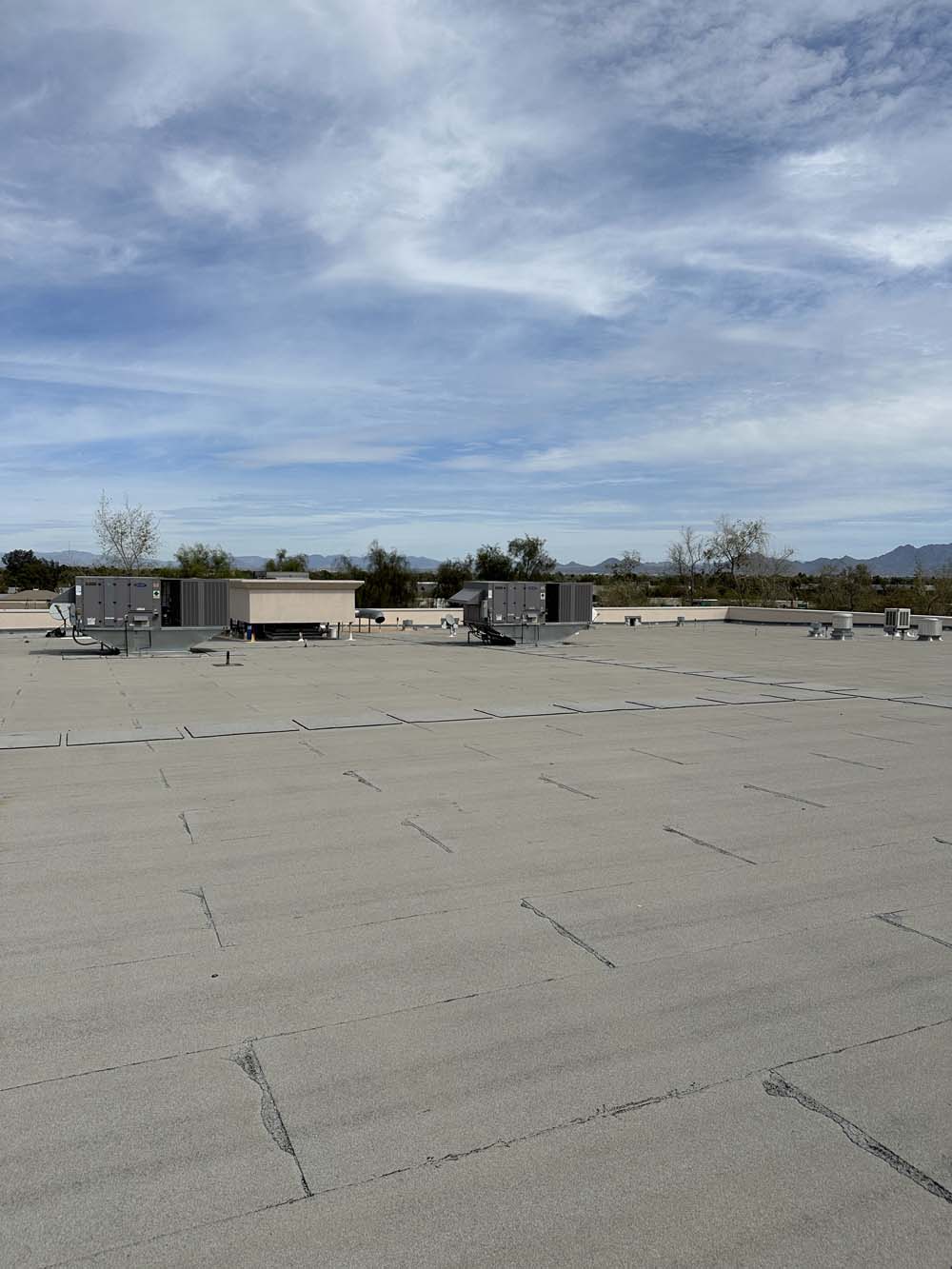

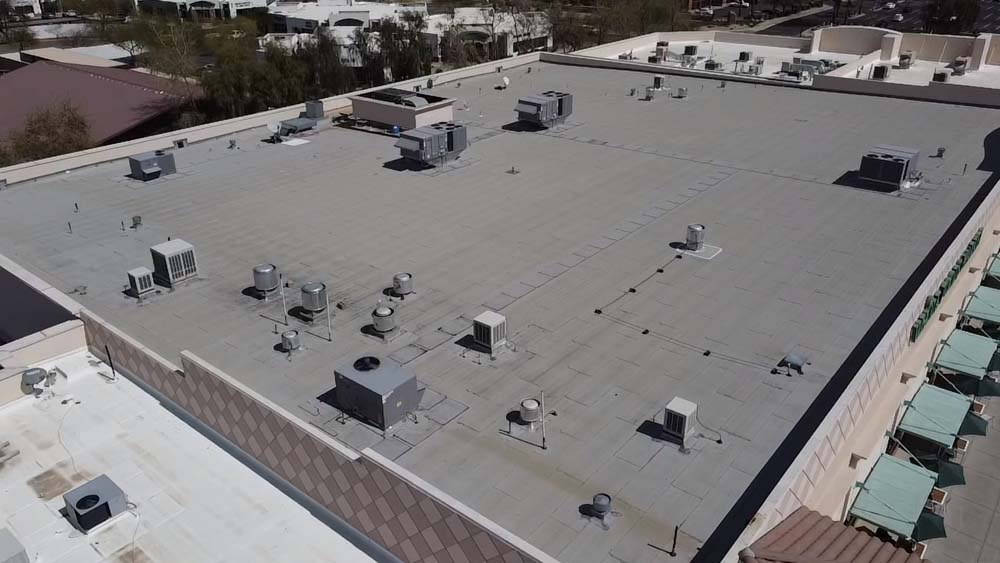

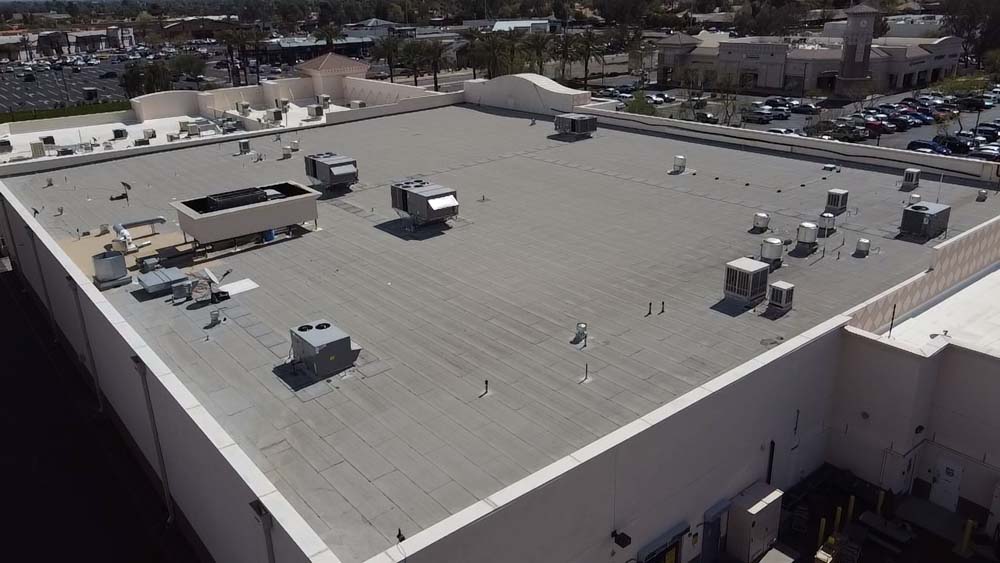

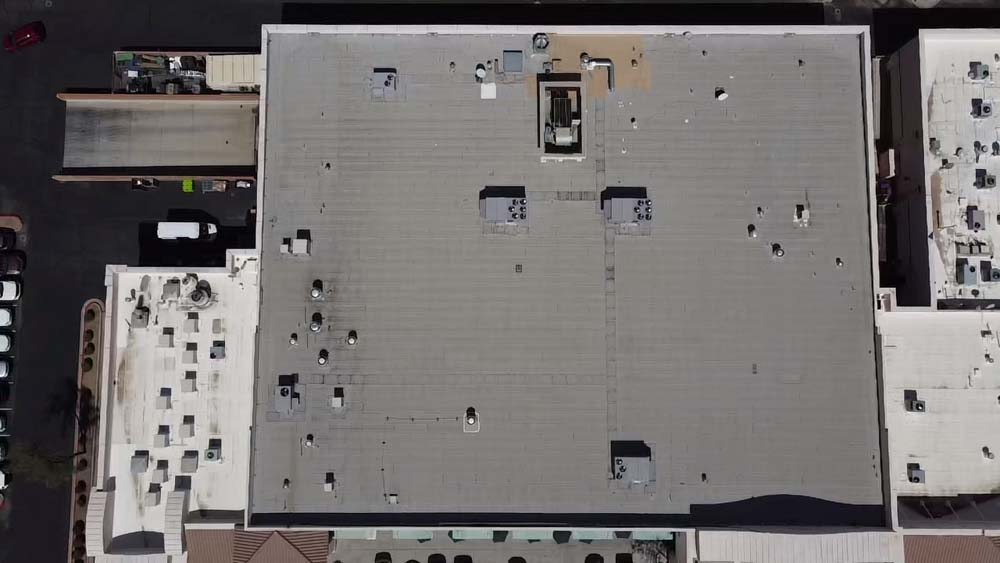

  • Photos (Aerial Rooftop);  w/ Video Clips | 360 Images
