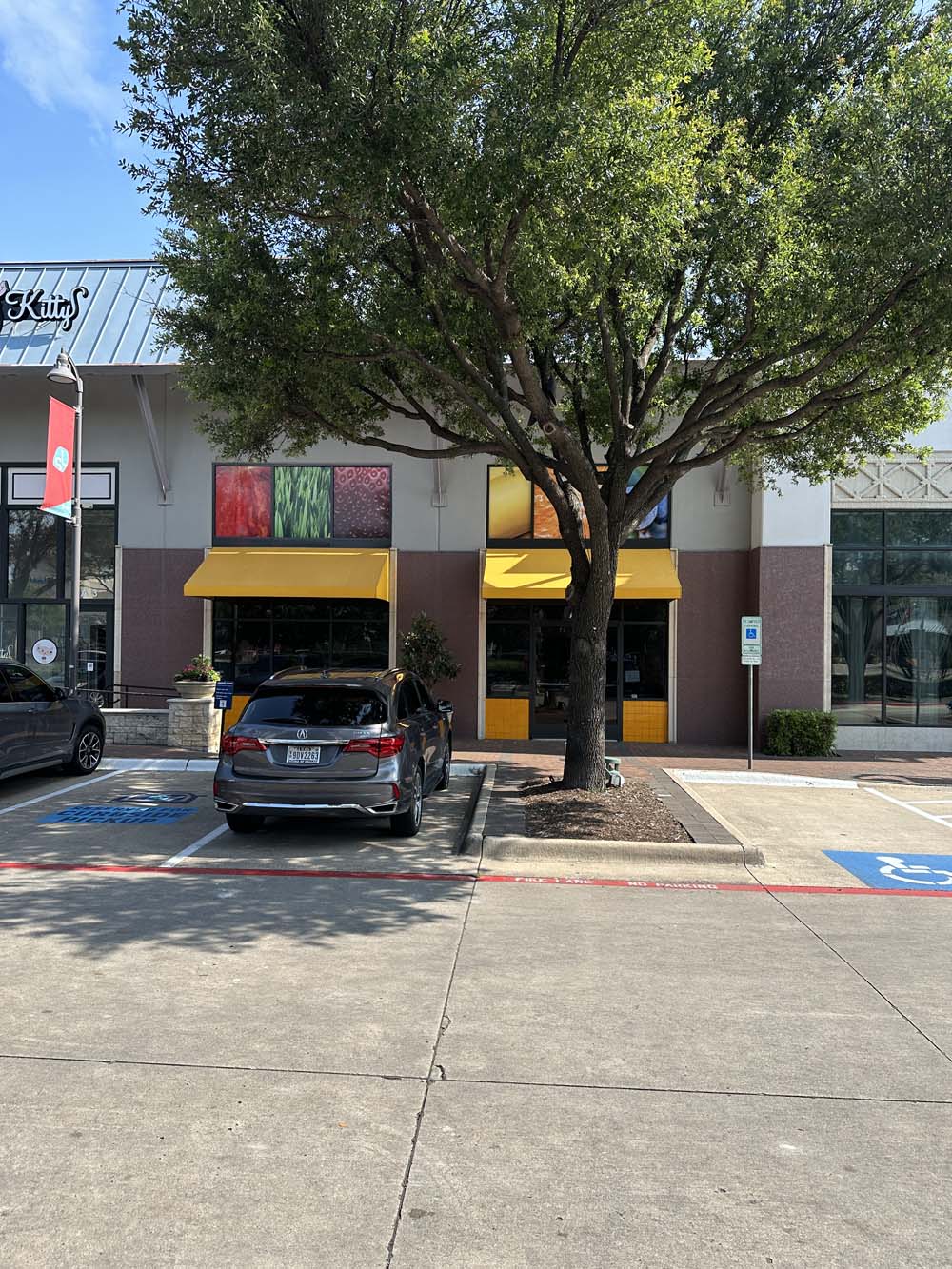

The Shops at Legacy (SR02)
5741 Legacy Drive | Plano, TX 75024
The Shops at Legacy (SR02)
5741 Legacy Drive | Plano, TX 75024
General Information
- Square Footage
1,444 sf (Gross Lease Area) - Building Height
30'-0" (Exterior Deco Metal Height)

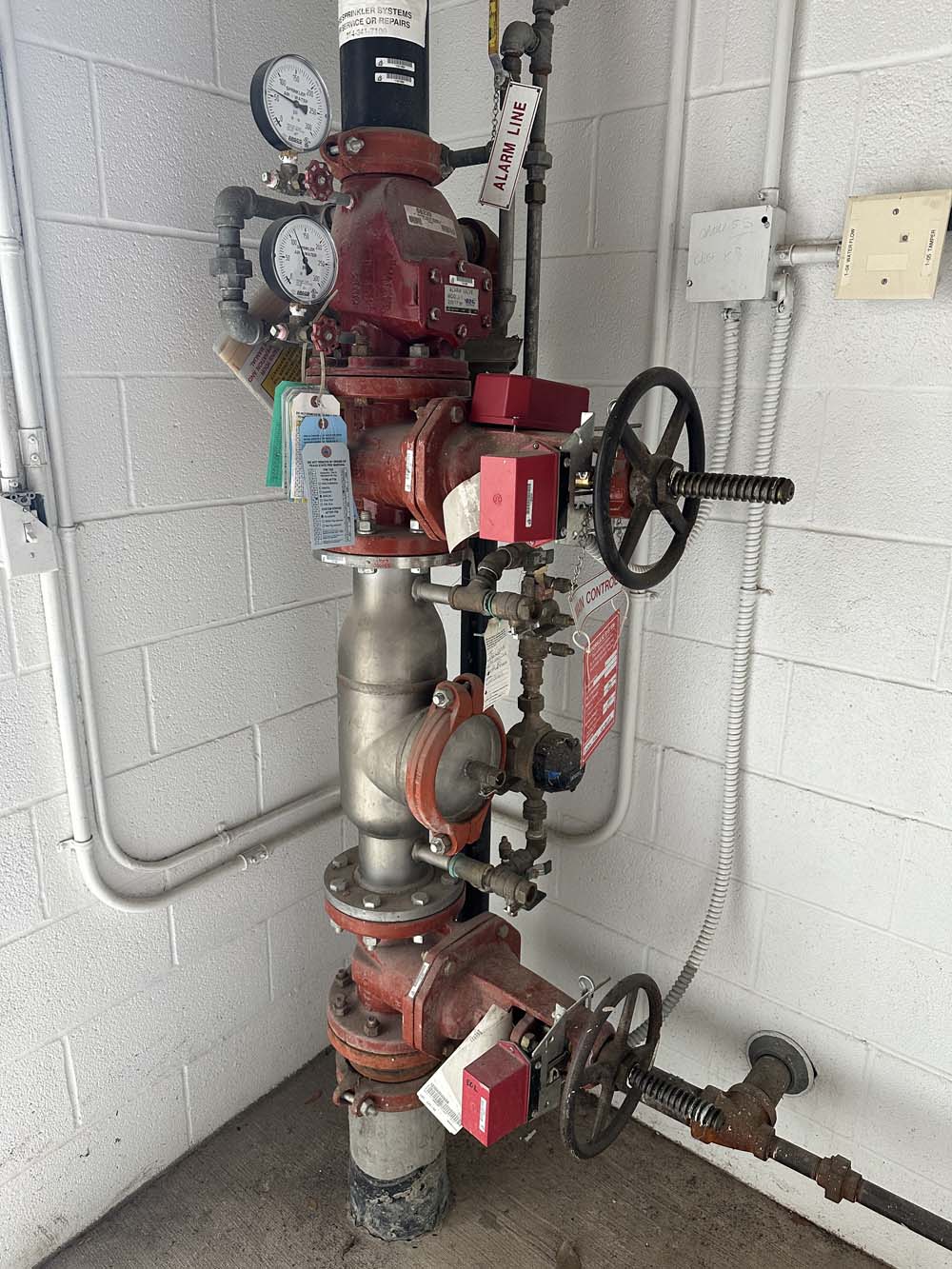

21'-0" (Structural Clear Height - Lowest Point) - Fire Sprinkler
Remote Fire Room
Location: 150’ East of Rear Door

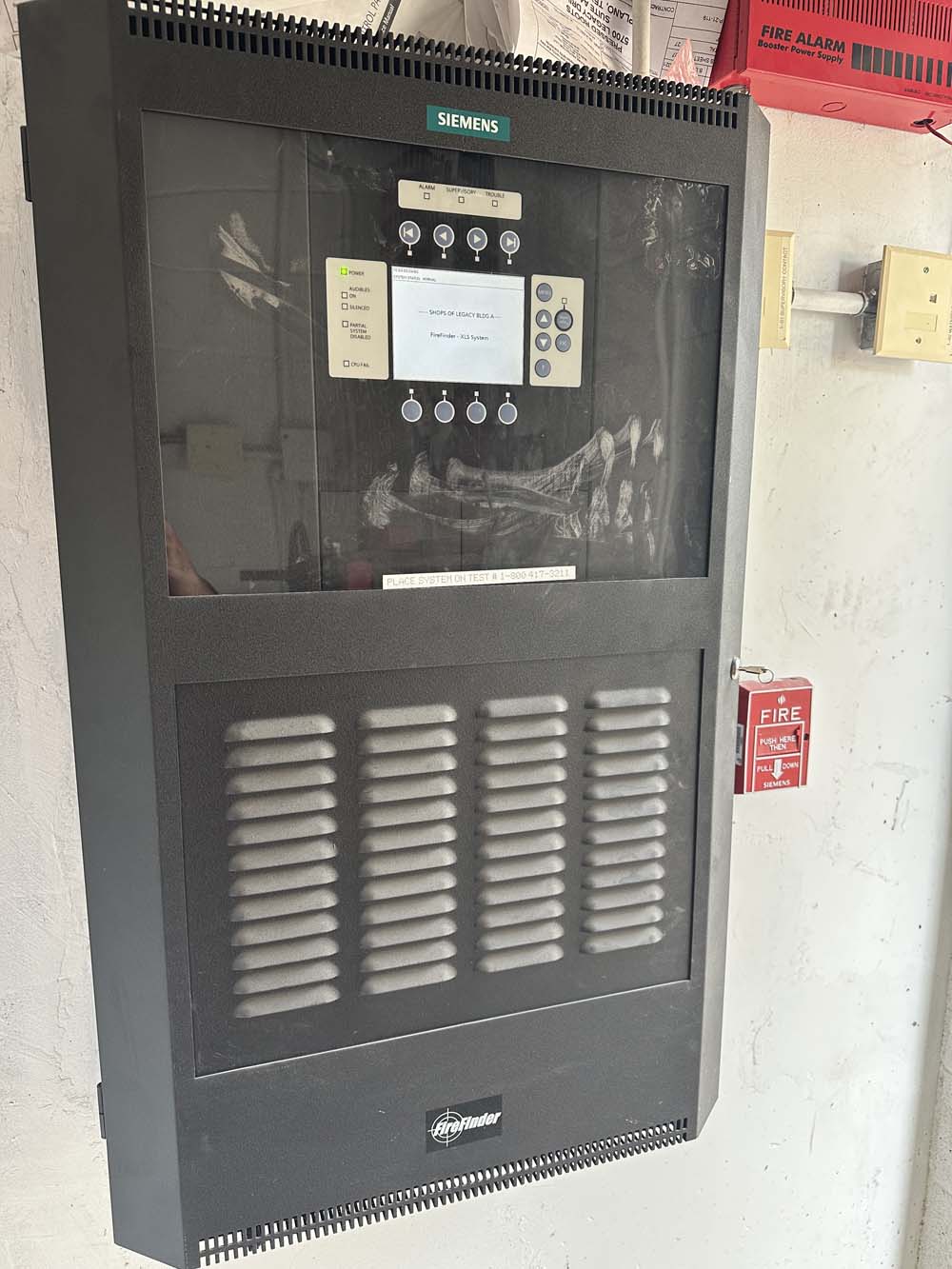

4" Dia. (Riser) - Fire Alarm Panel

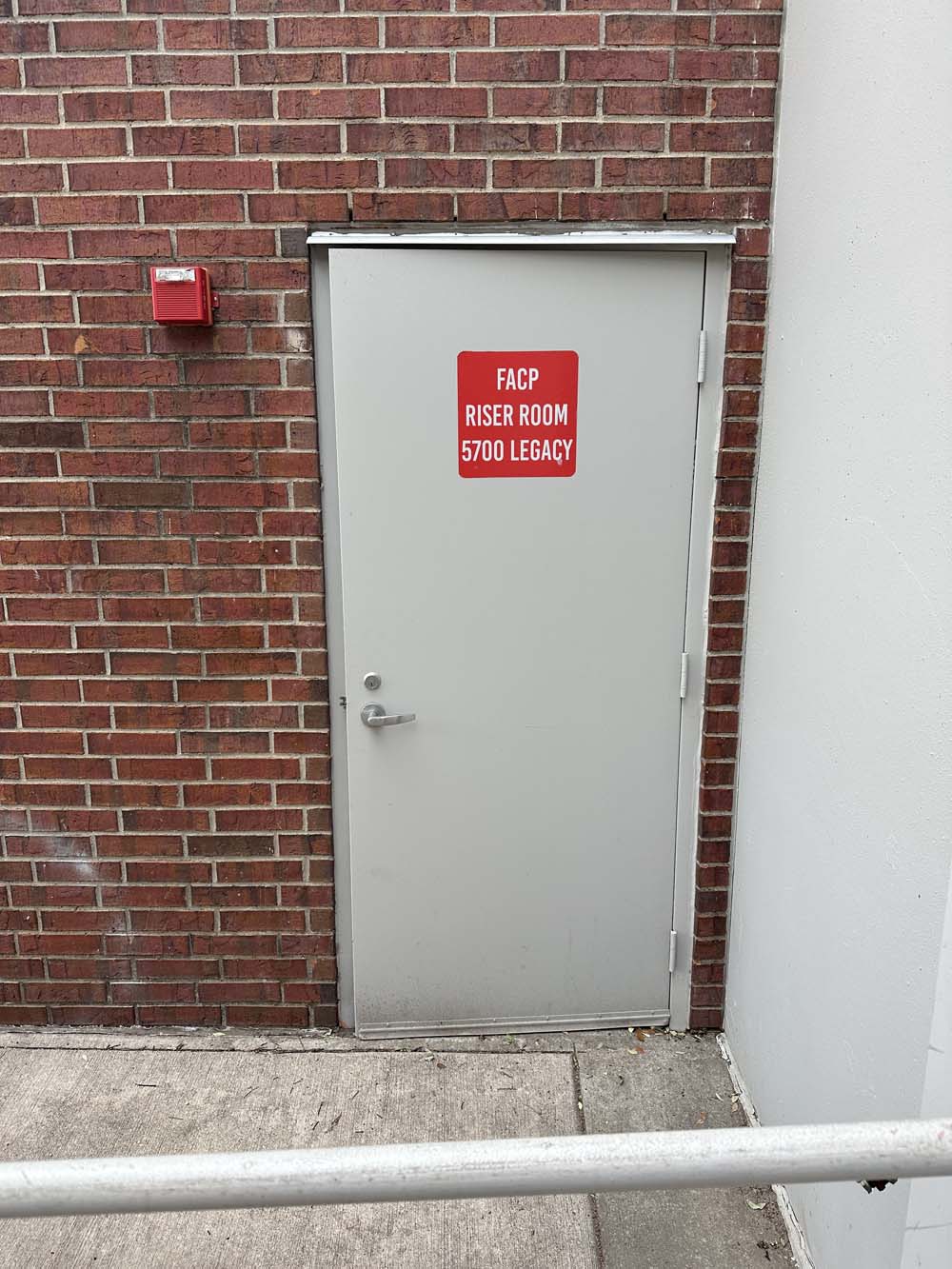

Remote Fire Room
Location: 150’ East of Rear Door
Siemens (FireFinder)
Utility Information

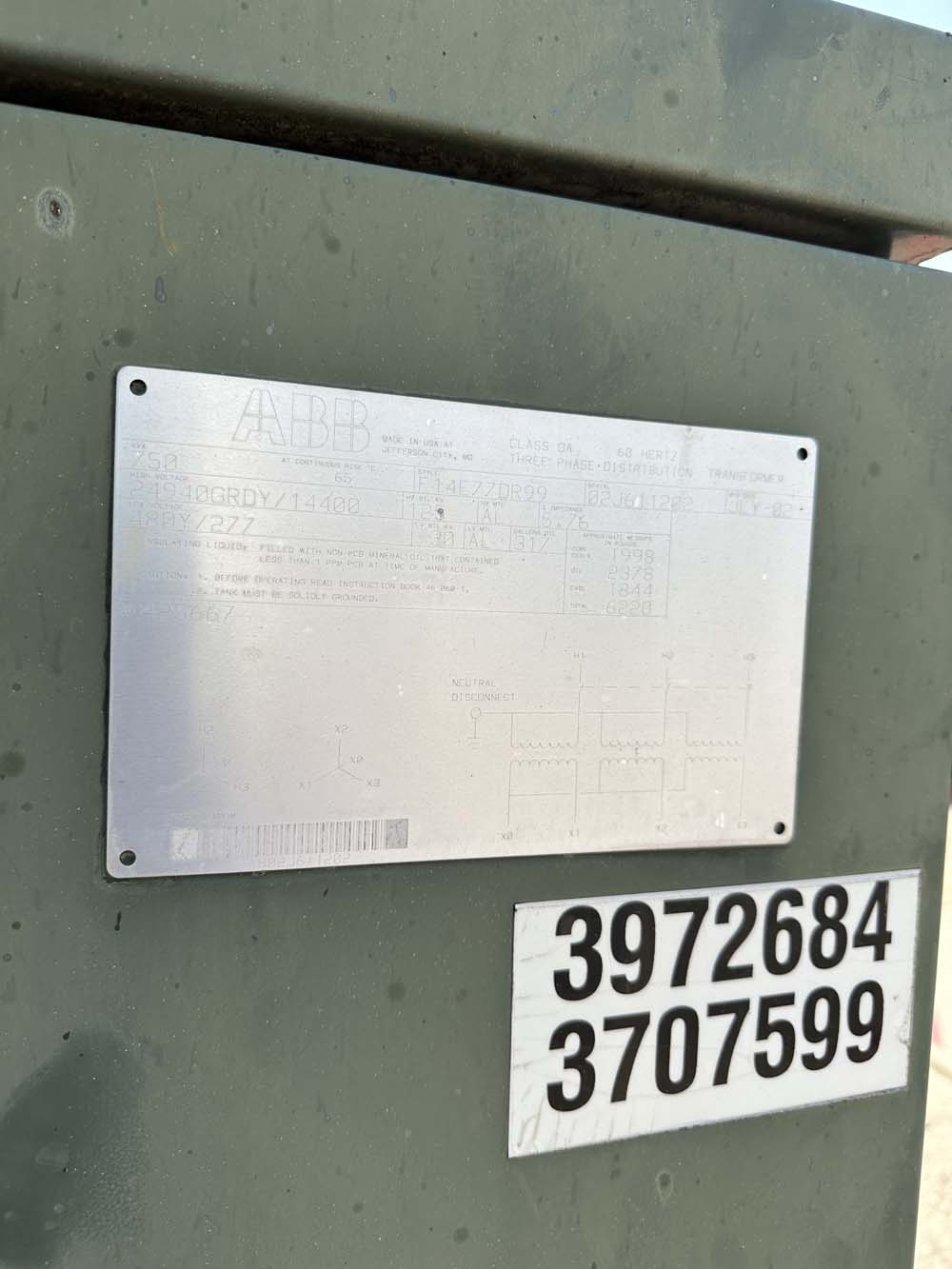

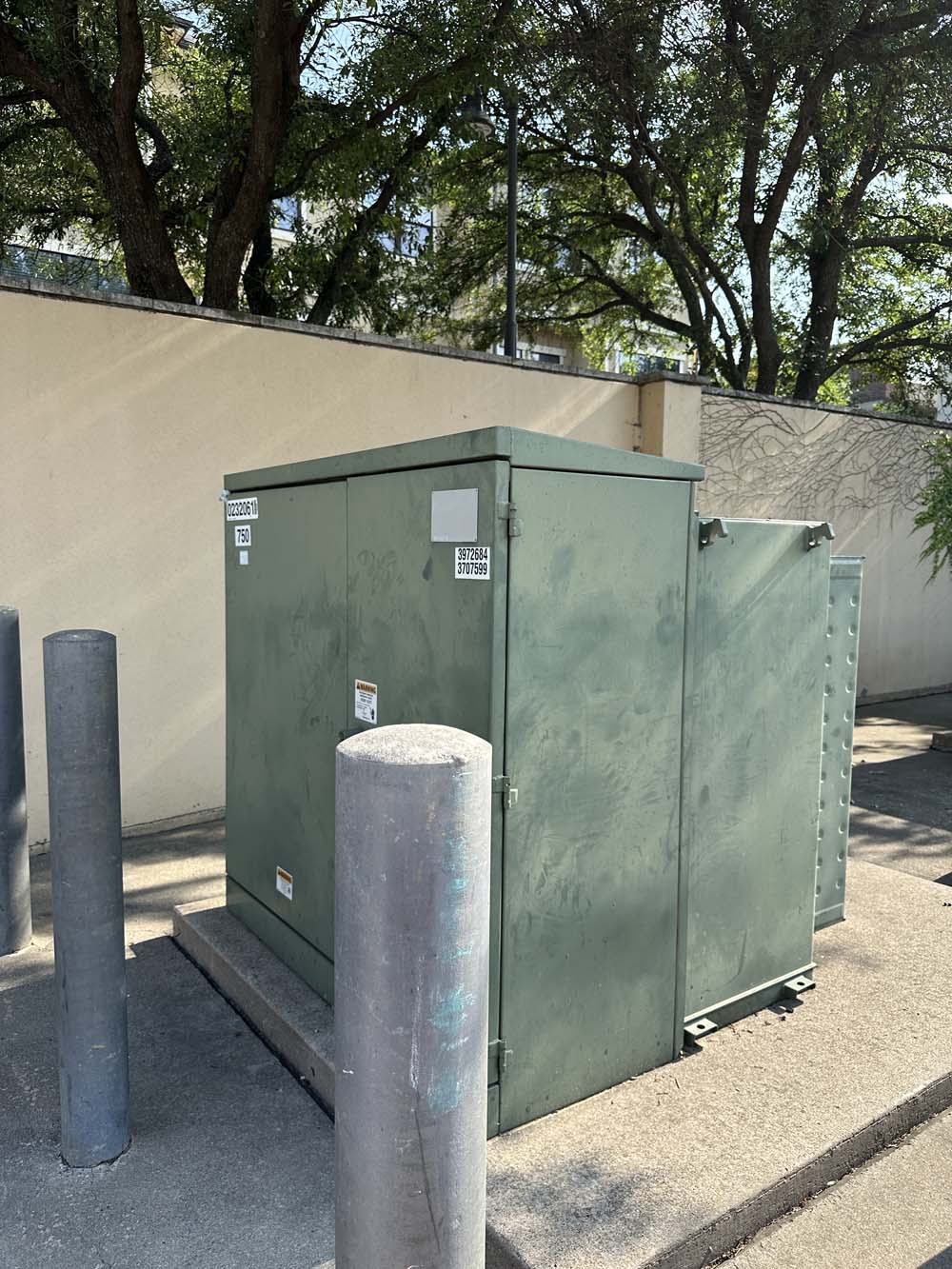

- Electrical Transformer
750 kVA

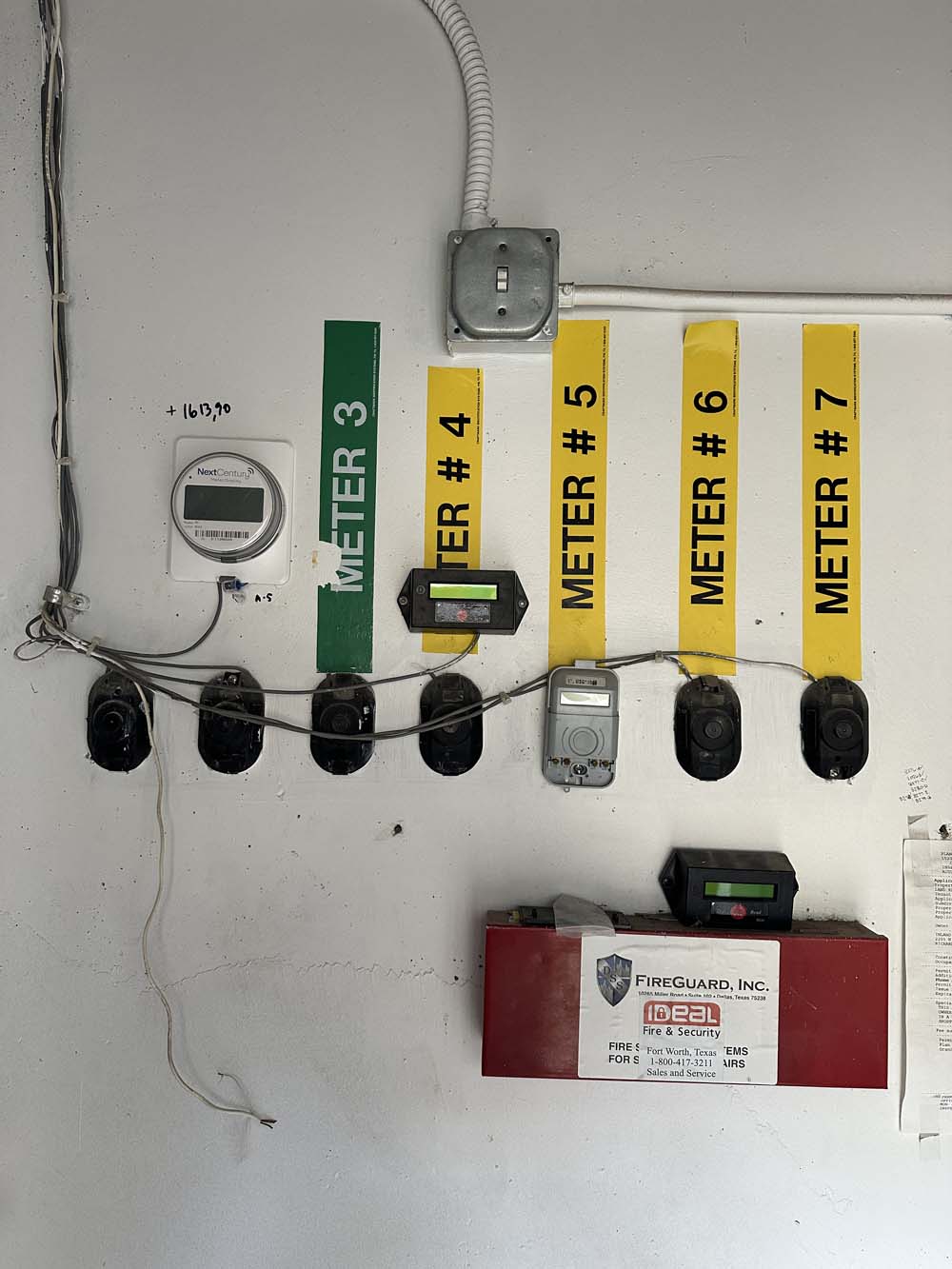

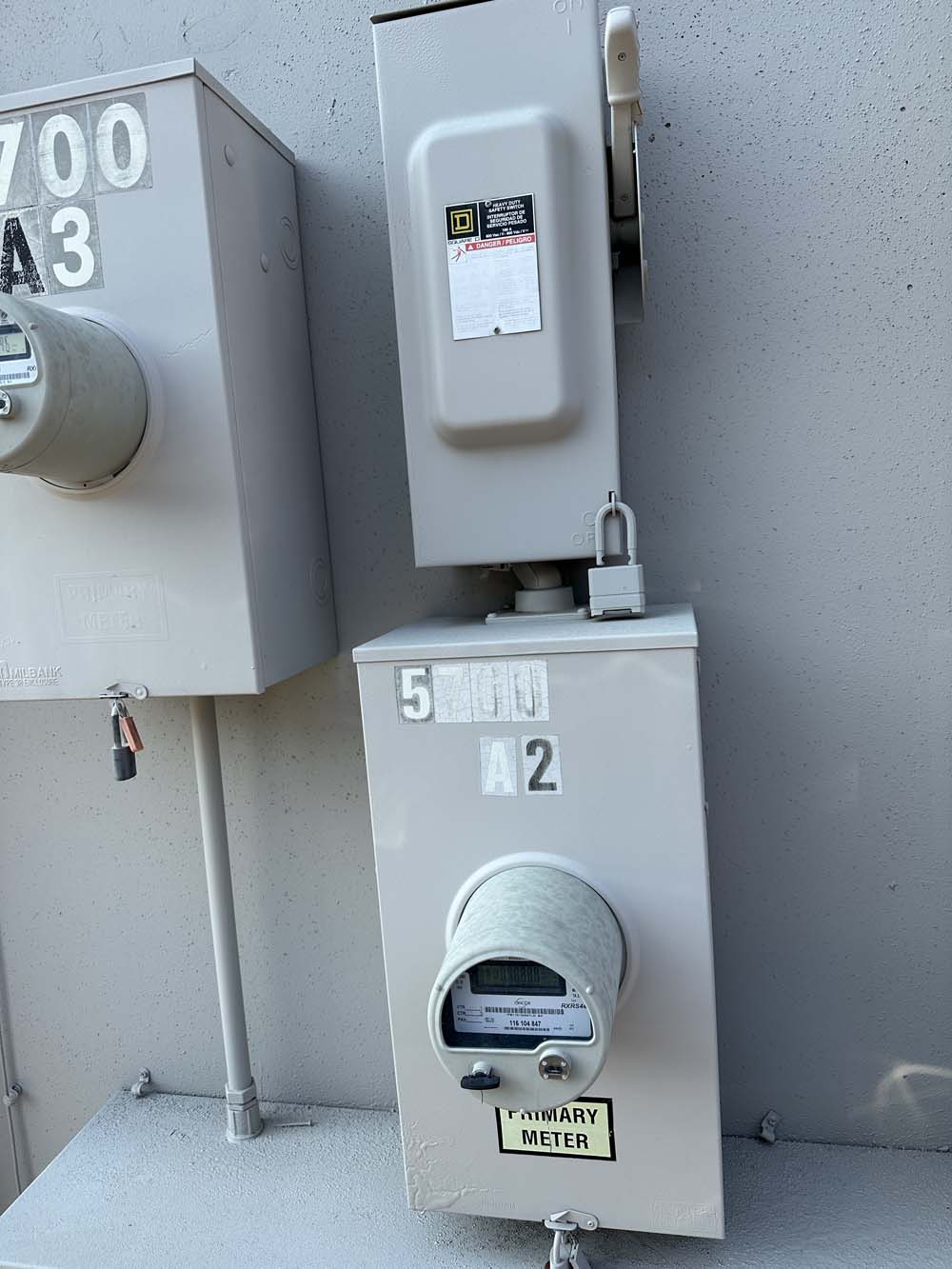

Location: Exterior - 75’ Southwest of Rear Bldg - Electrical Service | Meter
Undetermined
Remote Electrical Room
Location: Exterior - 50’ East of Rear Bldg

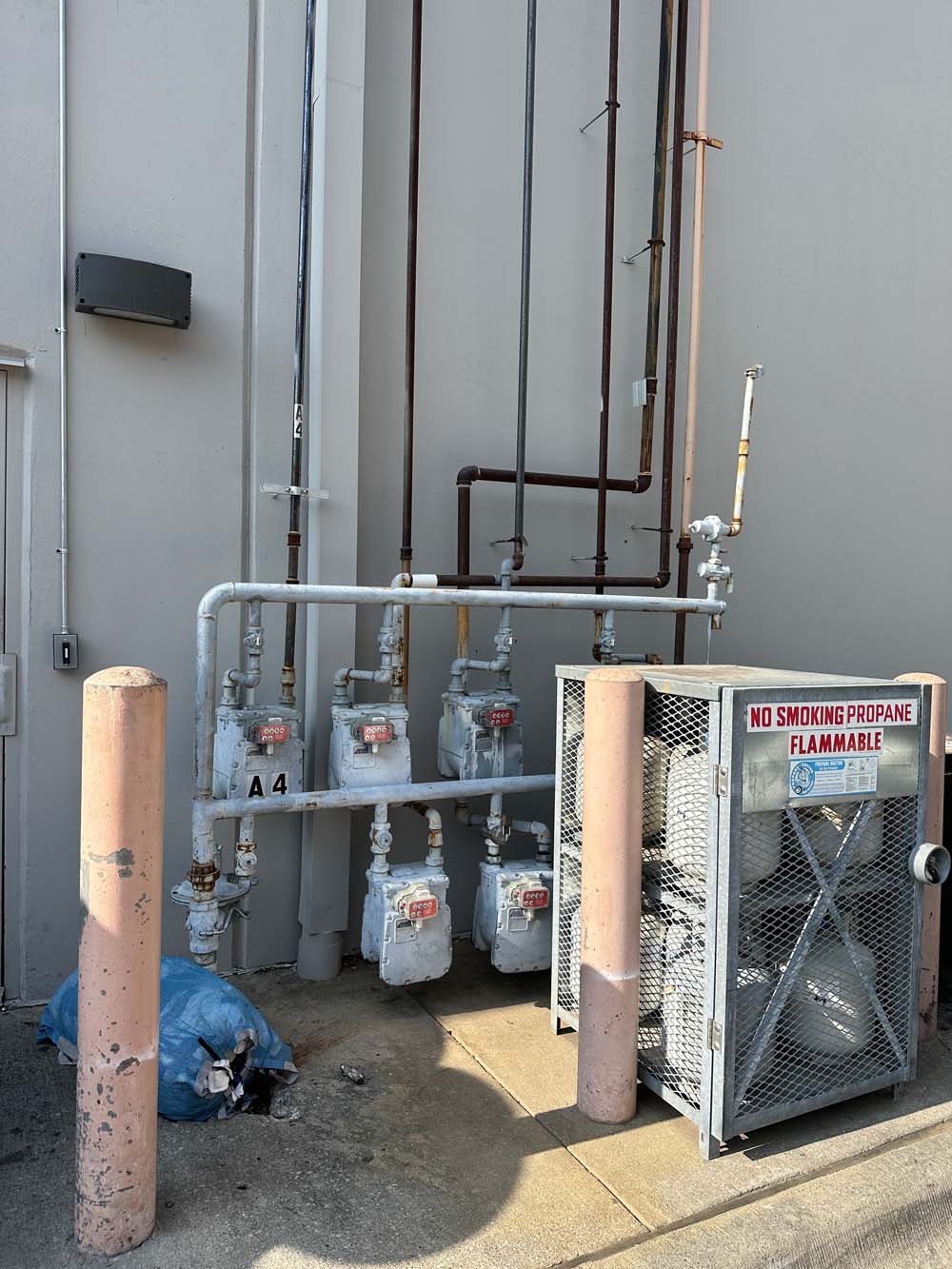

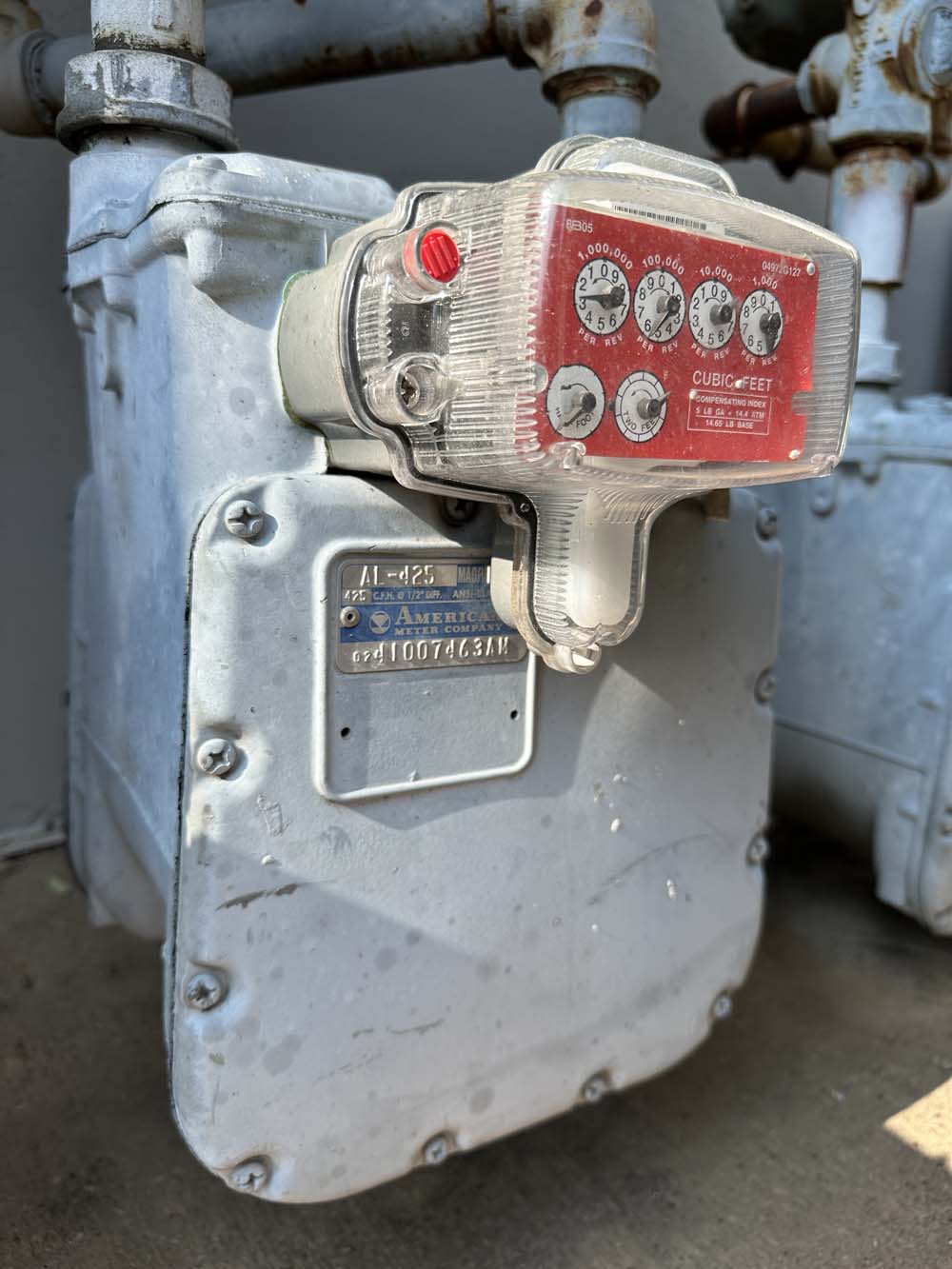

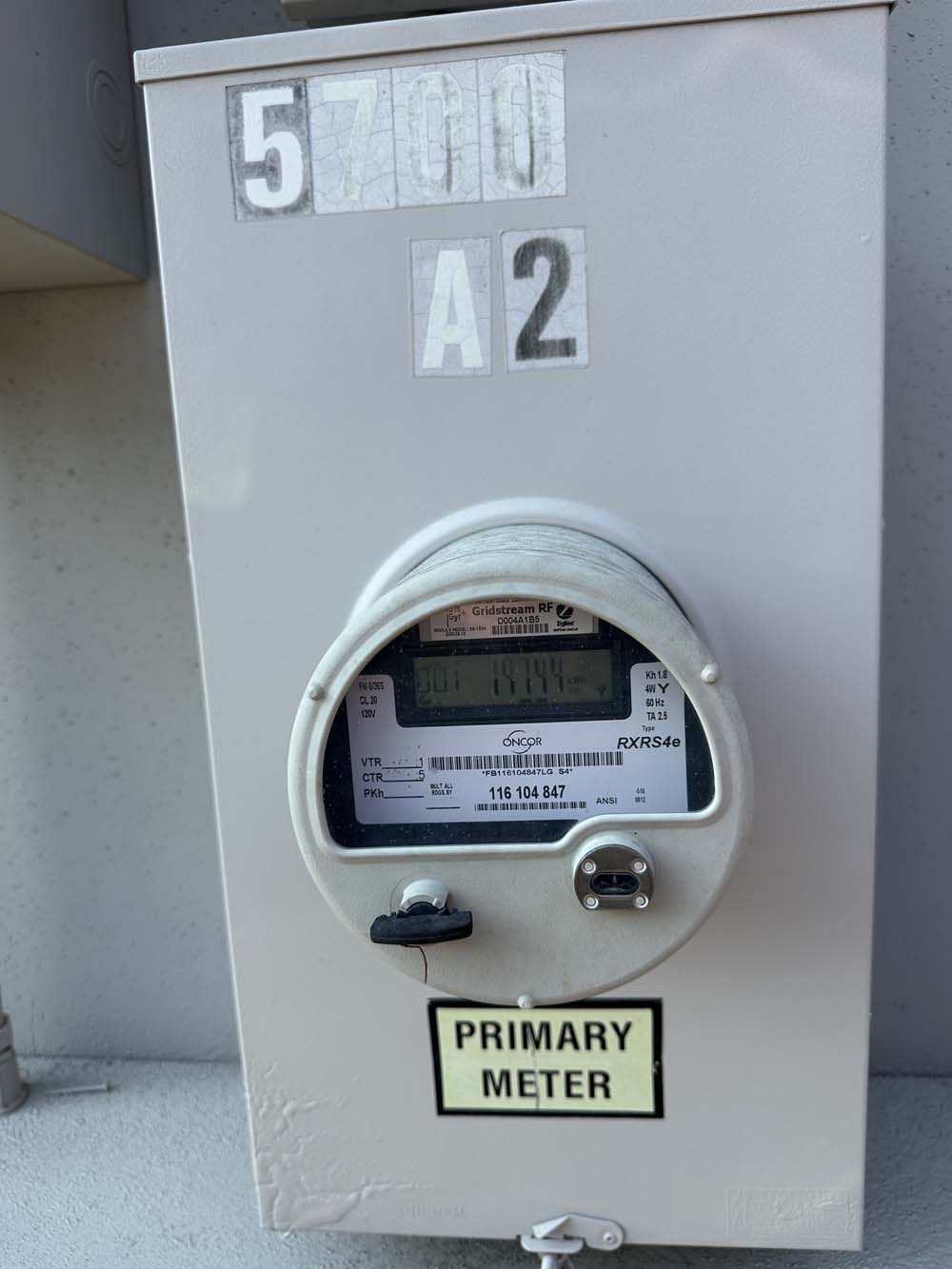

Meter No.: 116 104 847 - Gas Service | Meter
2" Dia. (Service)
Location: 115’ East of Rear Door
Meter No.: 41007463AM - Water Service | Meter
3" Dia. (Service)
Remote Fire Room
Location: 150’ East of Rear Door
Meter No.: Undetermined

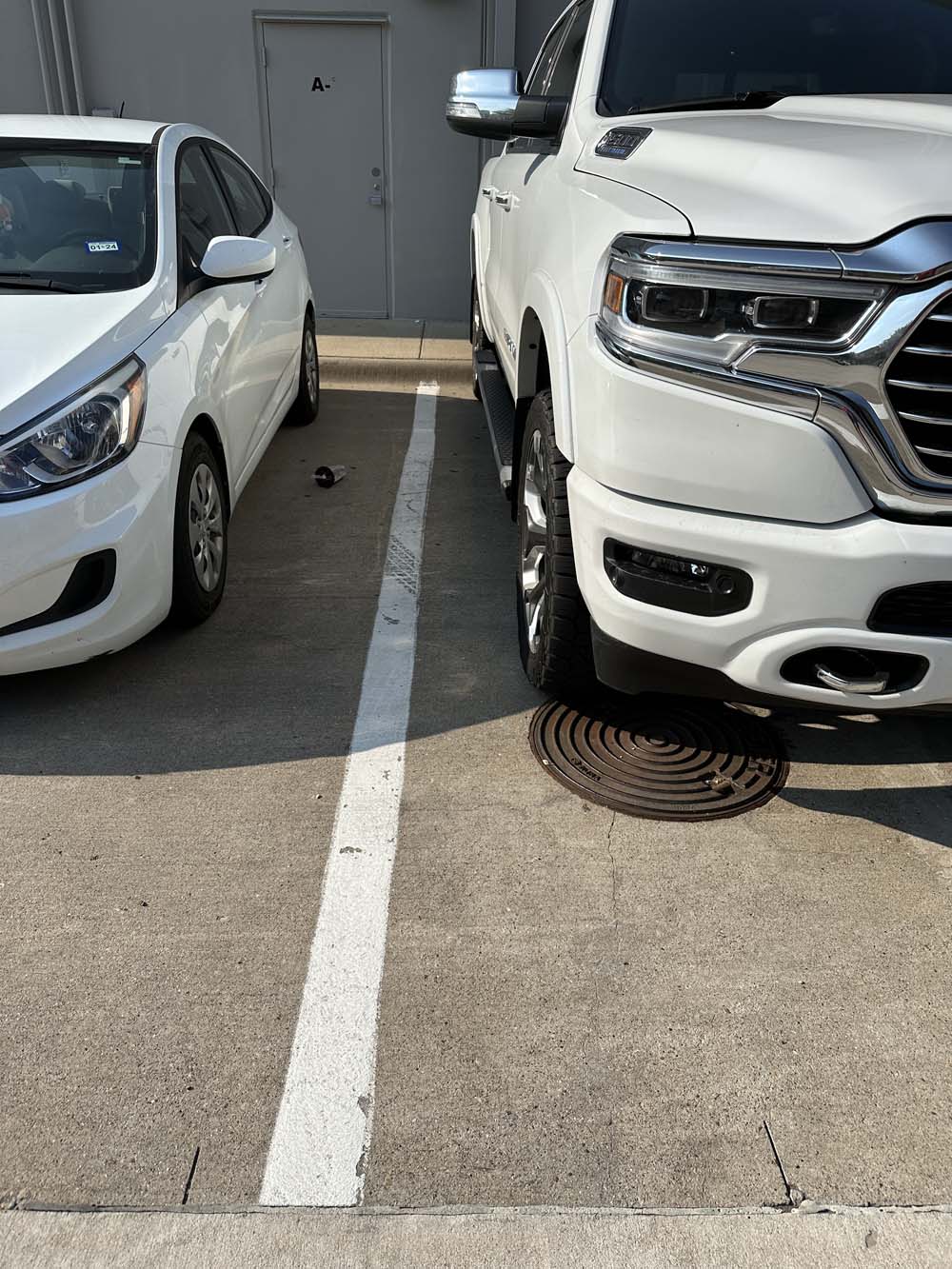

(Sub-Metered In Space) - Sanitary Sewer Cleanout
Location: Exterior - 50' East of Rear Door
Vicinity Map...
Electrical

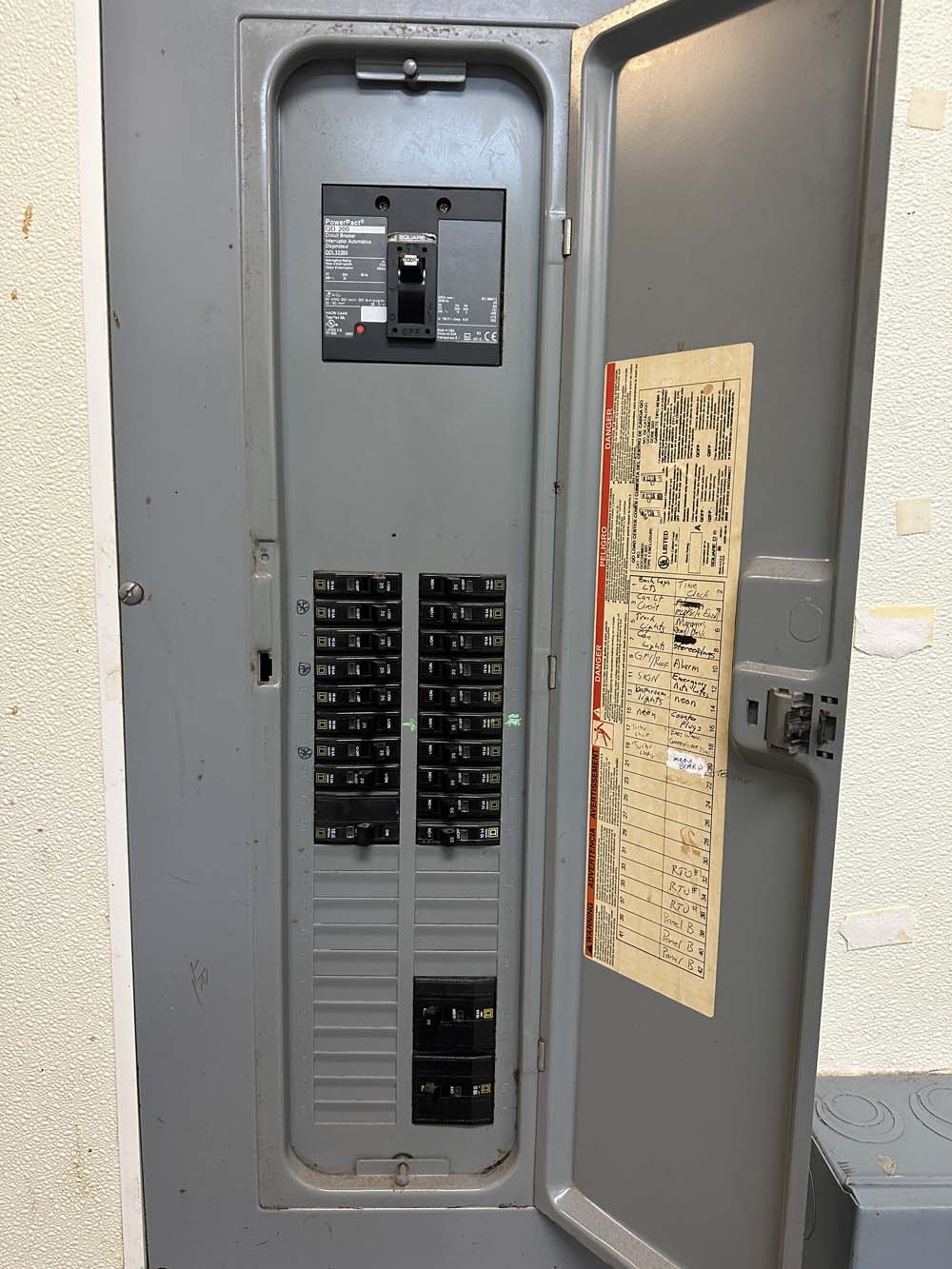

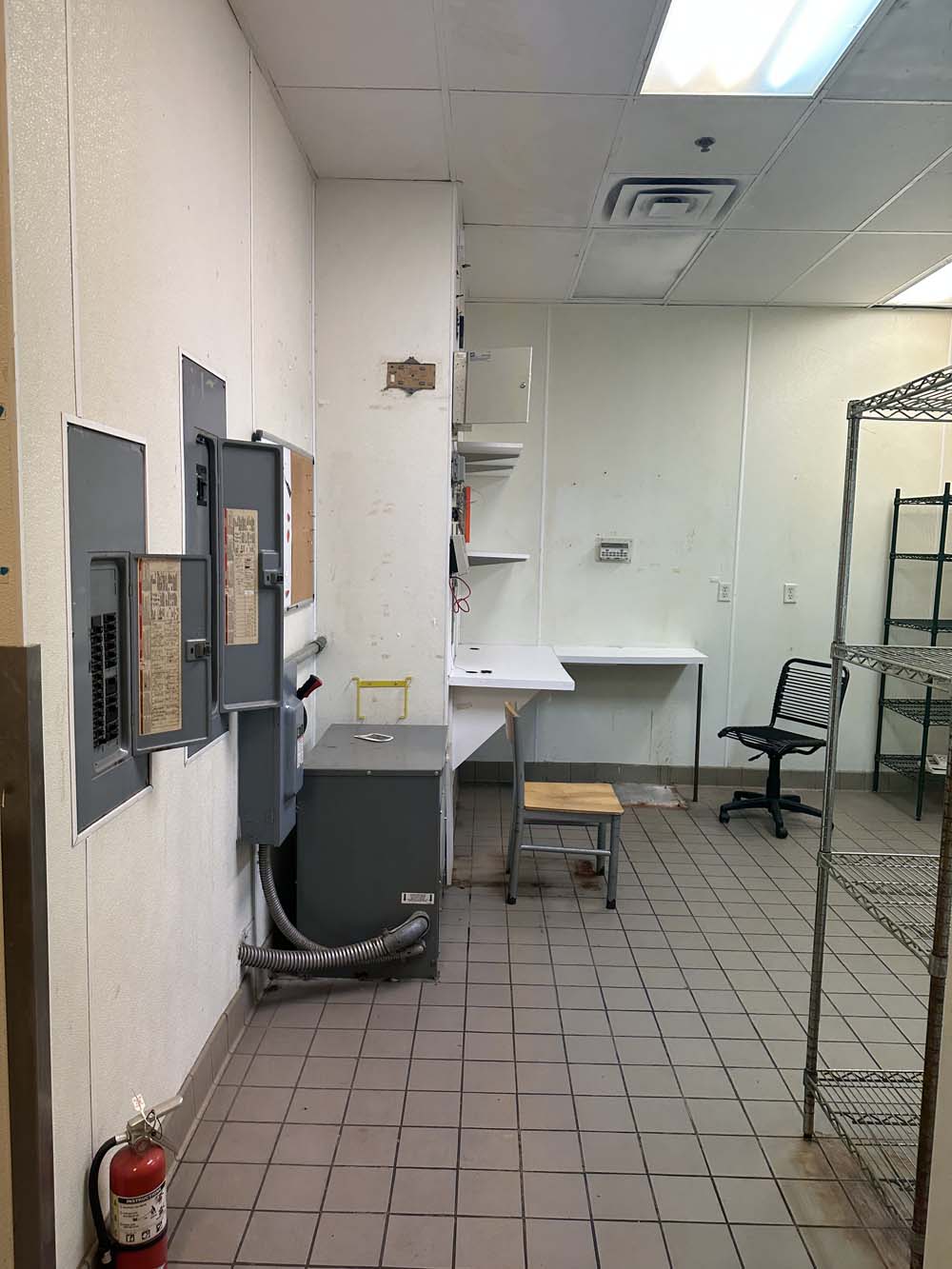

Electrical Panelboard
Square D
Catolog #: QOC30US
Voltage: 120/240
Amps: Undetermined
Phase: Undetermined
Circuits: 27 Circuits (Used)
Main Breaker: No
Square D
Catolog #: QOC30US
Voltage: 120/240
Amps: Undetermined
Phase: Undetermined
Circuits: 27 Circuits (Used)
Main Breaker: No
Electrical Panelboard
Square D
Catolog #: QOC342MQS
Voltage: 120/240
Amps: Undetermined
Phase: Undetermined
Circuits: 26 Circuits (Used)
Main Breaker: Yes (200A)
Square D
Catolog #: QOC342MQS
Voltage: 120/240
Amps: Undetermined
Phase: Undetermined
Circuits: 26 Circuits (Used)
Main Breaker: Yes (200A)
Mechanical

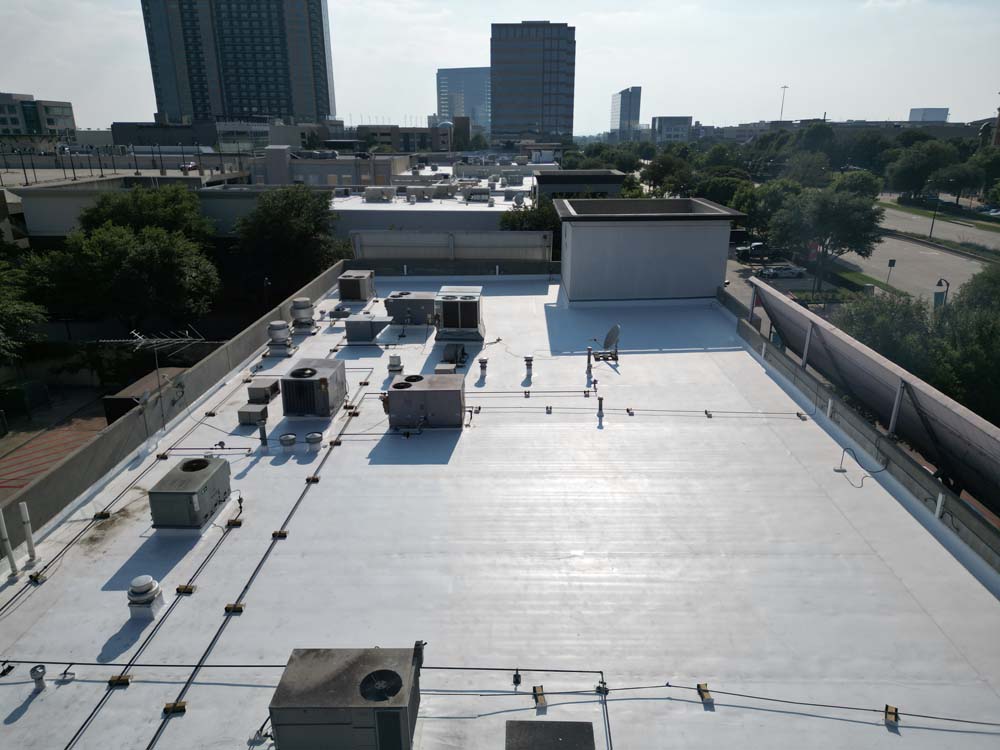

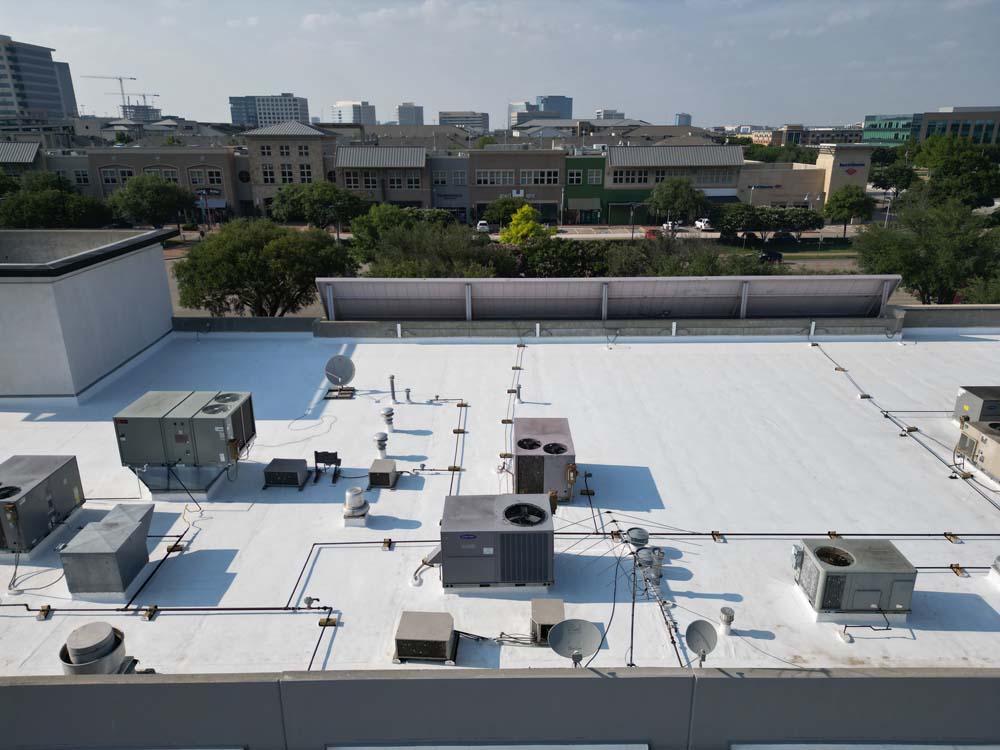

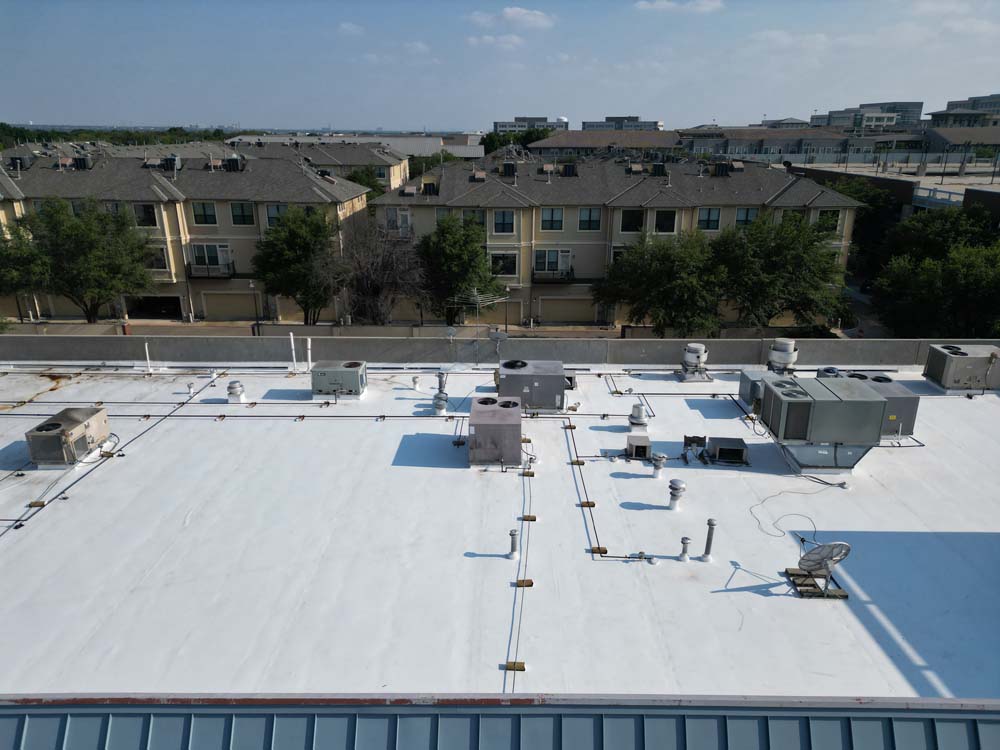

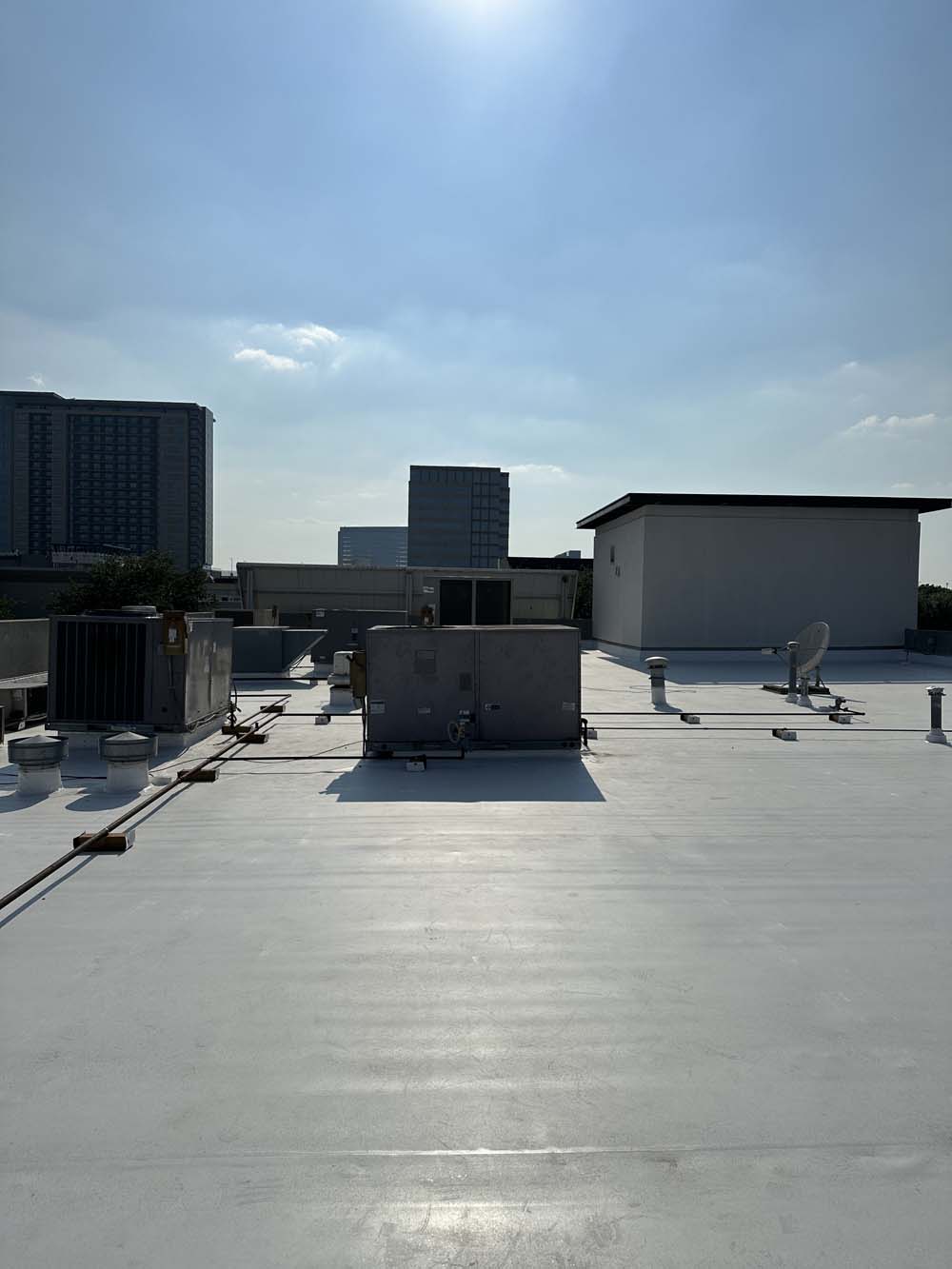

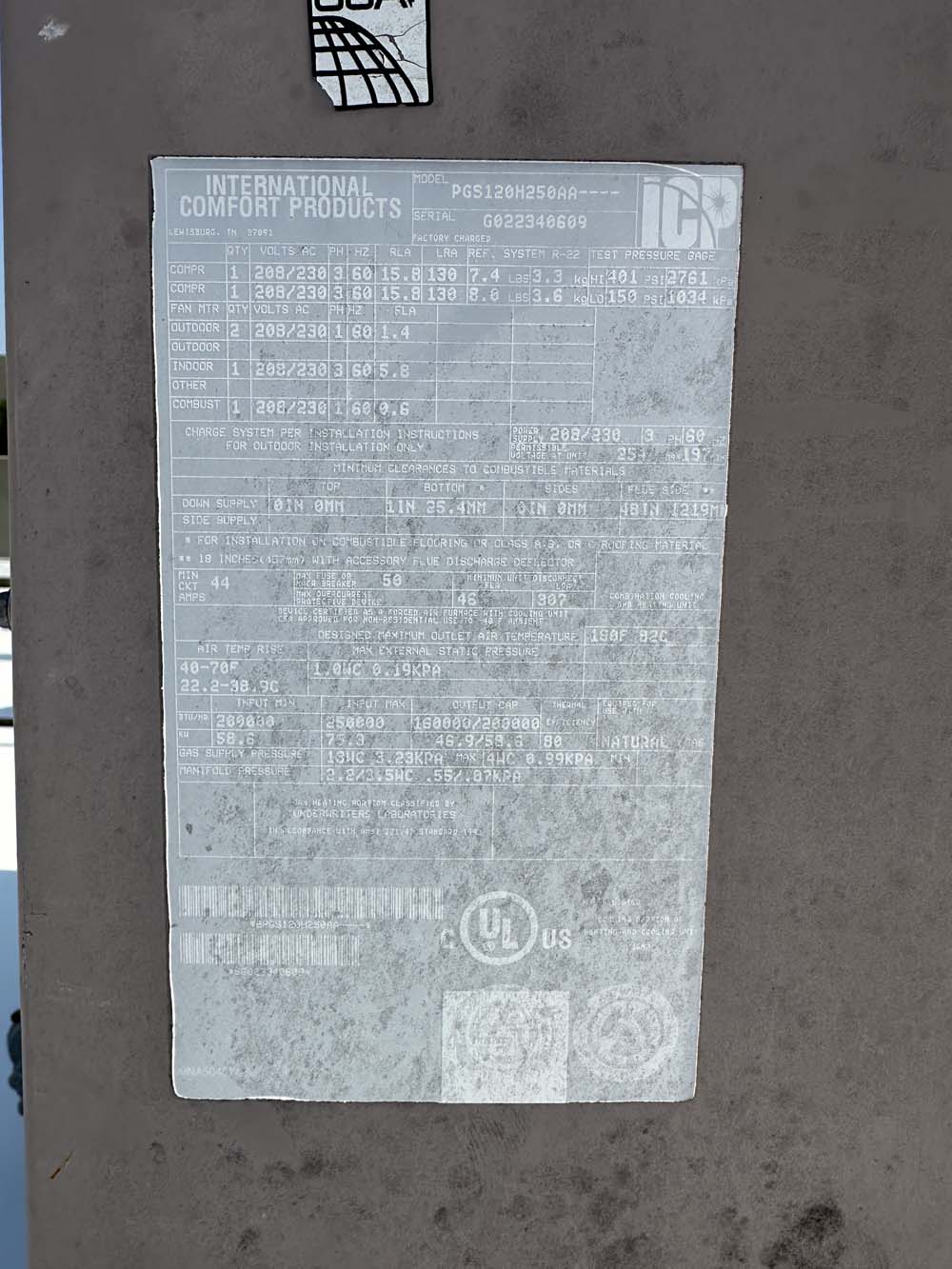

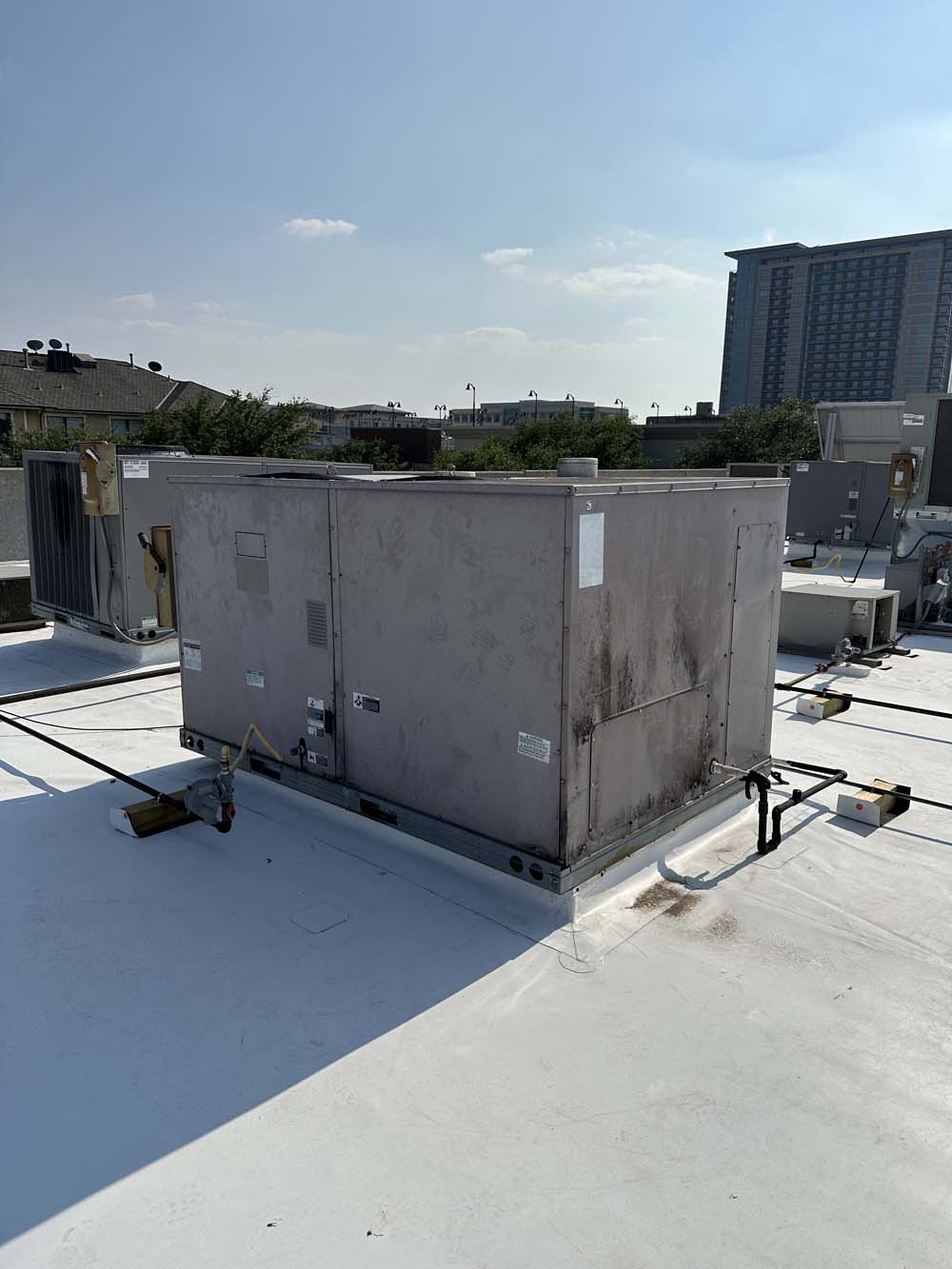

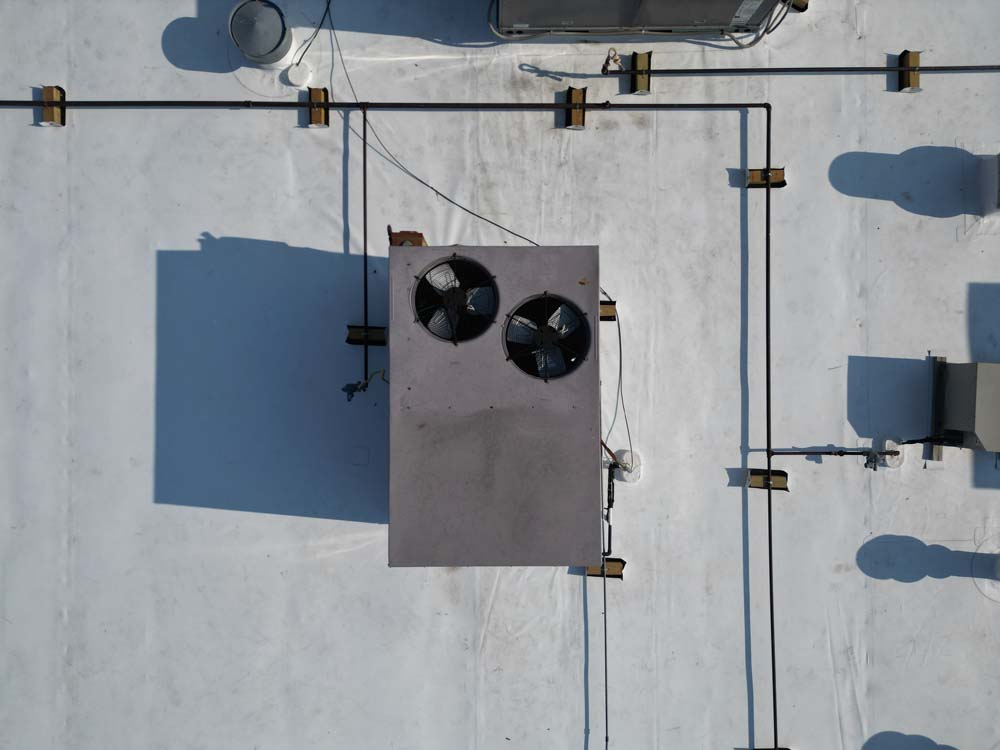

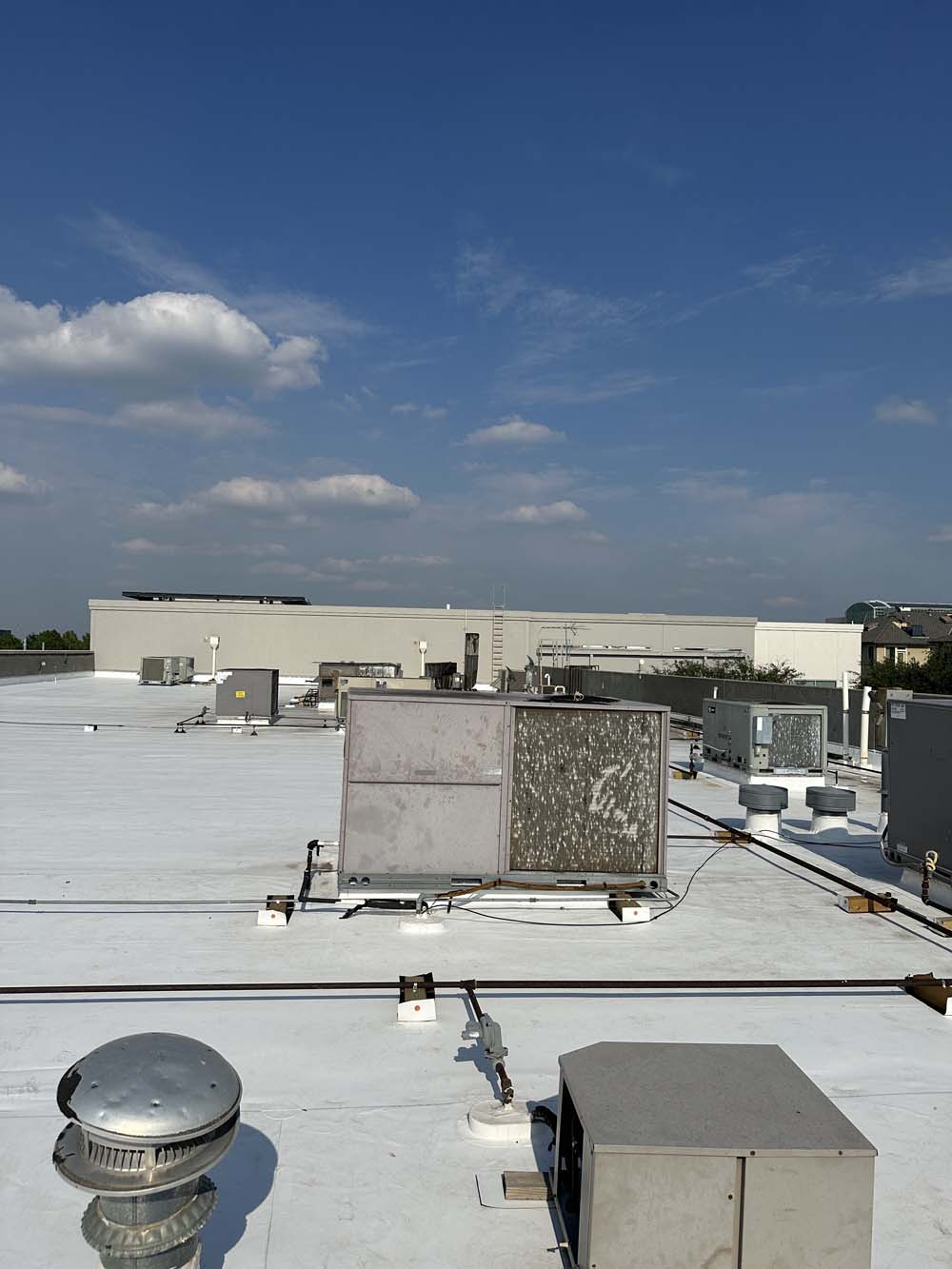

Rooftop Unit
ICP
Model #: PGS120H250AA
Serial #: G022340609
Capacity: 10 Ton
Manf. Date: Jun 2002
Comments: Gas
ICP
Model #: PGS120H250AA
Serial #: G022340609
Capacity: 10 Ton
Manf. Date: Jun 2002
Comments: Gas
Plumbing

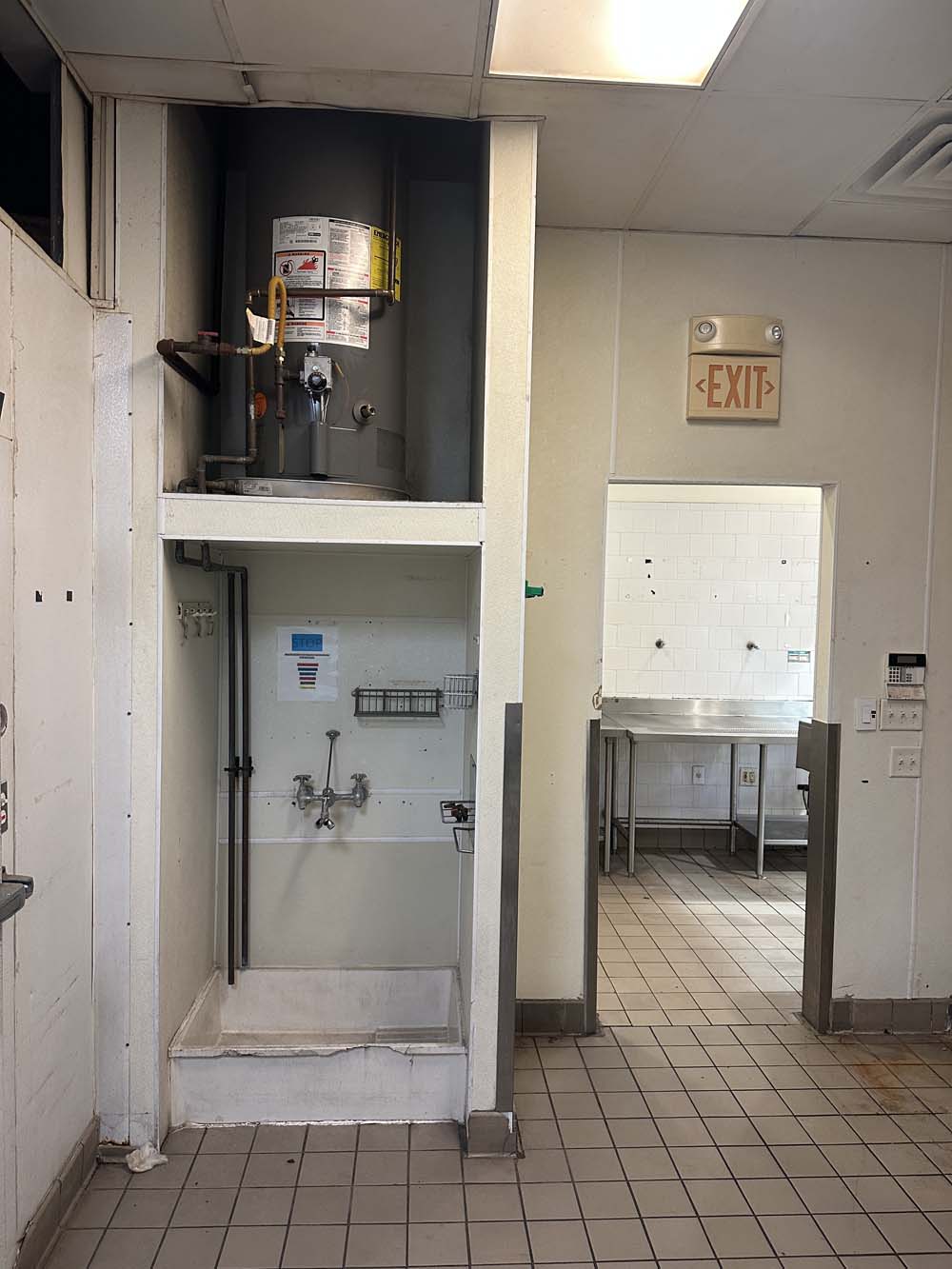

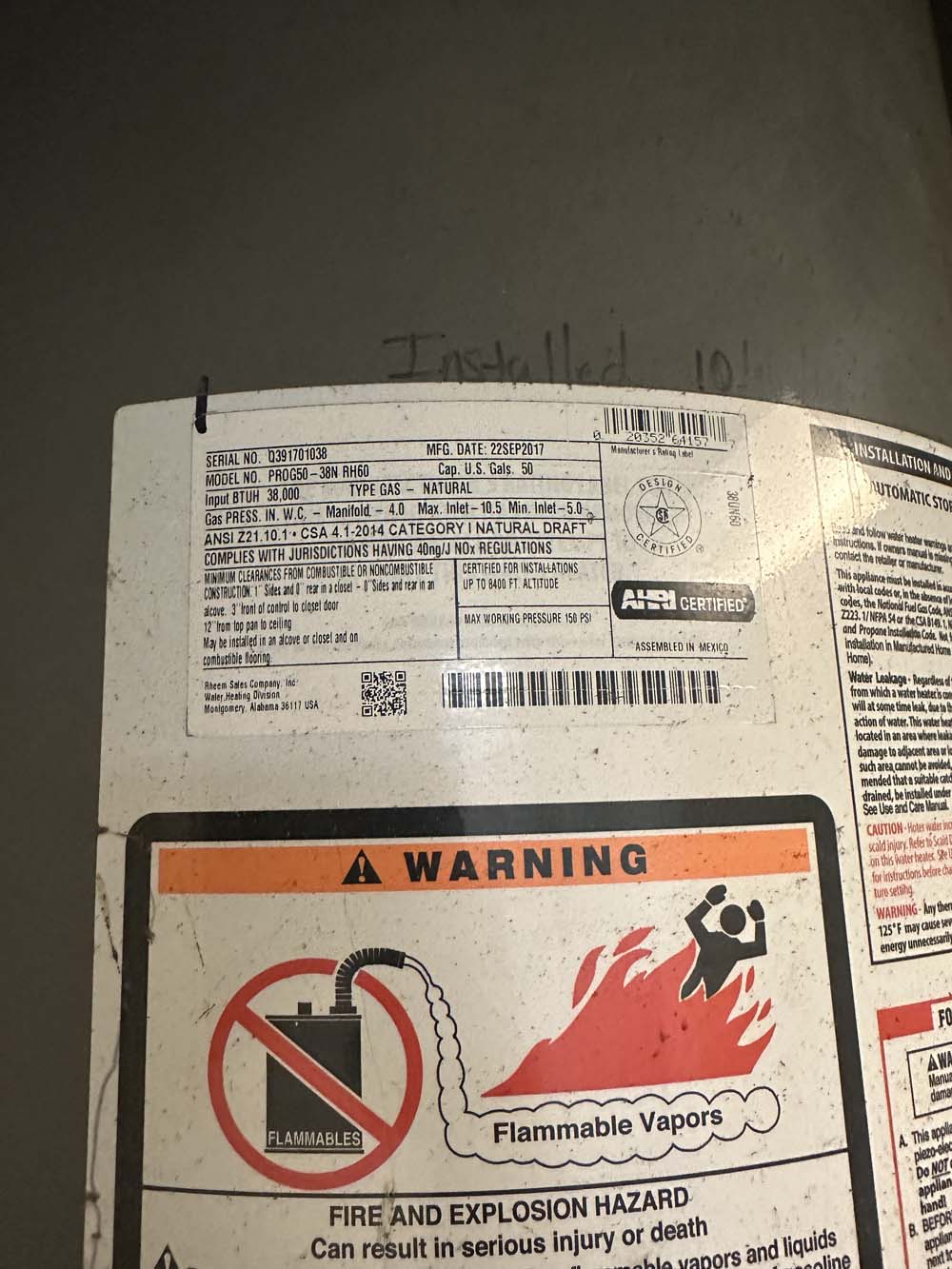

Water Heater
Rheem
Model #: PROG50-38N RH60
Serial #: Q391701038
Gallons: 50
Utility: Gas
Rheem
Model #: PROG50-38N RH60
Serial #: Q391701038
Gallons: 50
Utility: Gas
- A Complete Project Download Link
Includes the following... - --------------------------------------
- Space Condition Report (.pdf); w/ Accessibility Assessment

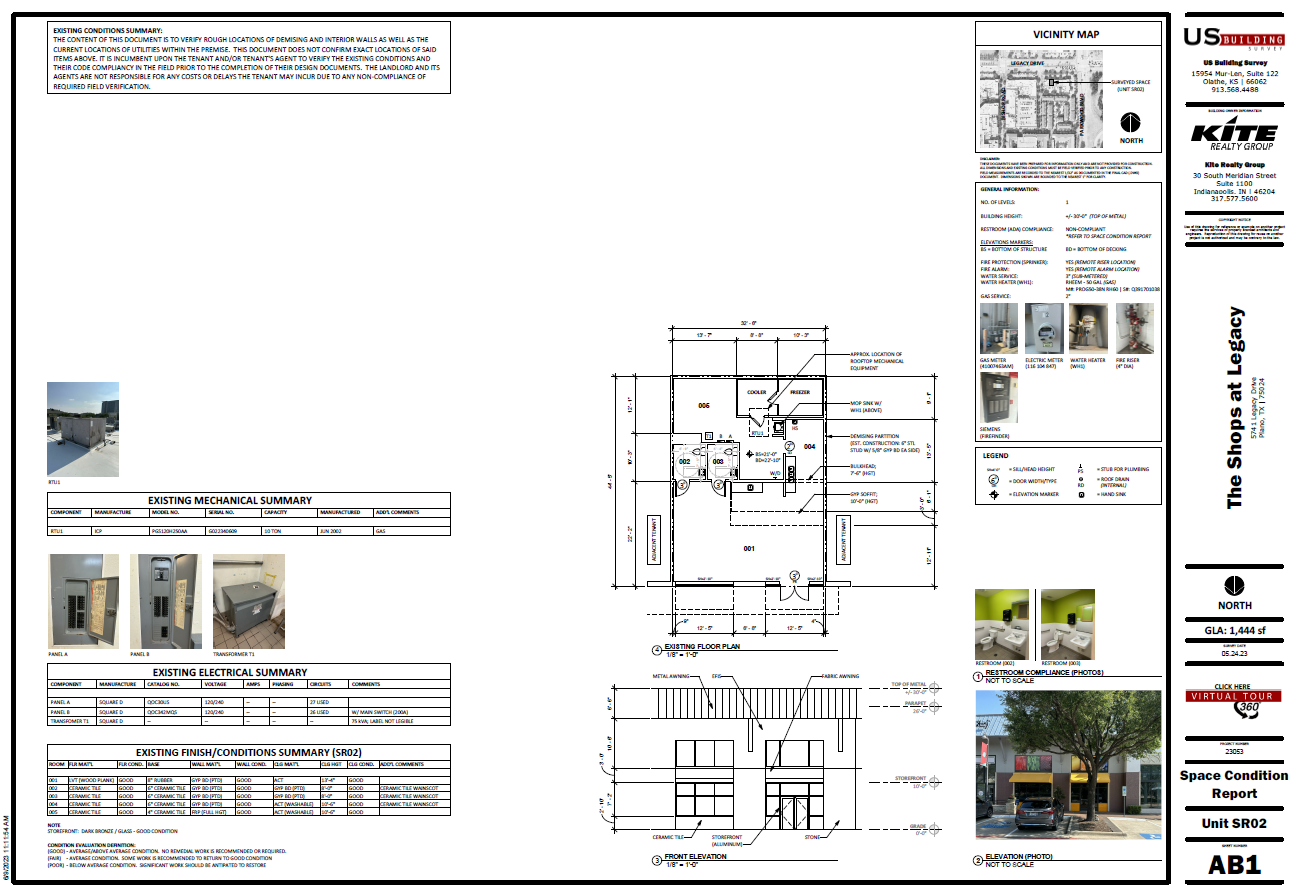

- Floor Plan (.pdf); Adobe Acrobat File
- Floor Plan (.dwg); AutoCad File
- Photos; w/ Contact Sheets
- Photos (Aerial Rooftop); w/ Video Clips | 360 Images
